Duplex 10gbps Sfp+ Optical Transceiver 300m Ddm

Product Description:

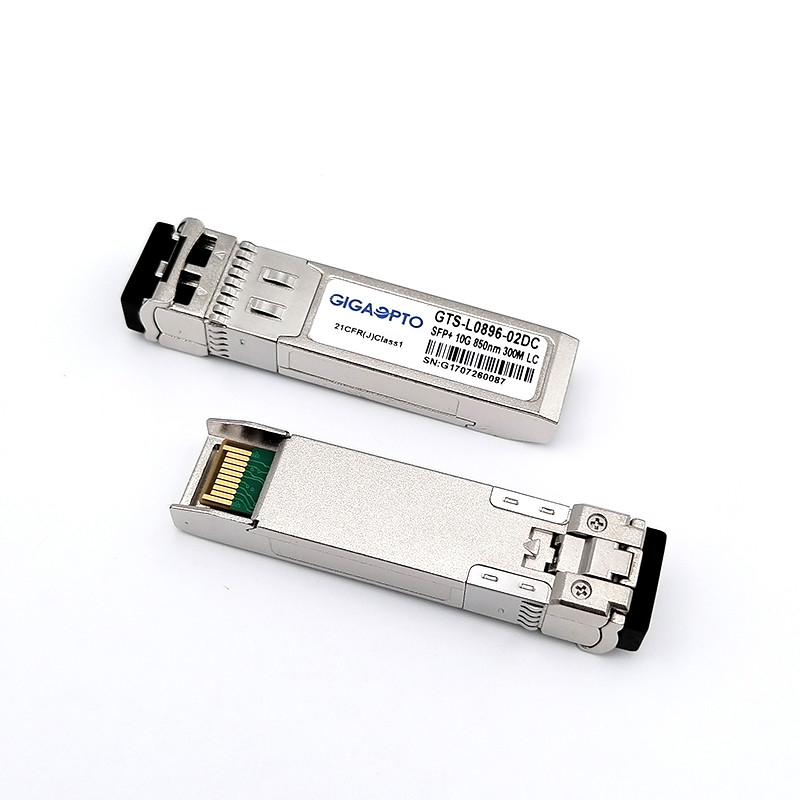

SFP+ Optical Transceiver is a 10Gbase SR fiber transceiver module designed to transmit and receive optical data over multimode optical fiber for link lengths of up to 300m. It is compliant with SFP+ MSA and IEEE 802.3ae 10GBASE-SR standard. This transceiver module has Duplex LC connector and works at a nominal wavelength of 850nm. Its advanced design and superior components enable it to deliver up to 10Gbps data rate over multimode fiber. The transceiver module also features Digital Diagnostic Monitoring (DDM) capabilities that provide real-time access to device operating parameters such as optical output power, optical input power, temperature, laser bias current, transceiver supply voltage, received optical power and transmit optical power. It also offers a wide operating temperature range from 0 to 70C and humidity range from 5 to 95%. This 10G SFP+ fiber transceiver module is ideal for data centers, storage systems, and other applications requiring 10Gbps optical links.

Features:

• Product Name: SFP+ Optical Transceiver
• Fiber Type: Multi-mode
• Data Rate: 10Gbps
• Connector: LC
• DDM: Yes
• Humidity Range: 5~95%

Technical Parameters:

Applications:

Generic, Neutral, Gigaopto SFP+ Optical Transceiver with model number GTS-L0896-02DC is a high-performance, cost-effective module designed for 10 Gigabit Ethernet applications. This transceiver is compliant with the SFP+ MSA (Multi-Source Agreement) and IEEE 802.3ae 10G Fiber Channel standards. It supports a transmission media of fiber optic and 10Gbase-SR data rate up to 10.5Gbps. It is RoHS compliant and is CE, FCC and RoHS certified. The connector type is SFP+ and the wavelength is 850nm. It has Digital Diagnostic Monitoring (DDM) function and supports temperature range from 0~70°C. The minimum order quantity is 1 and the price can be negotiated. The packaging details are 10pcs/tray and 400pcs/carton, and the delivery time is 3-7 days. The payment terms are T/T or L/C and the supply ability is 100,000 pieces/month. This SFP+ Optical Transceiver is widely used in 10G Ethernet applications such as switch to switch interface, switch to server interface, and optical network interface. It is also used in high performance computing systems and data storage systems. This product is compatible with most brands like Cisco, Juniper, HP, Dell, etc. It is ideal for datacenter and enterprise networks.

Customization:

We offer customized services for SFP+ Optical Transceiver. Our product is Generic, Neutral, Gigaopto brand, with model number GTS-L0896-02DC. It is certified with CE, FCC, RoHS, and has a minimum order quantity of 1. The price is negotiable, and it is packaged with 10pcs/tray, 400pcs/carton. The delivery time is 3-7 days and payment terms are T/T, L/C. We can supply up to 100,000 pieces/month. The interface type is optical, with a LC connector type, and a duplex cable type. It also has a temperature range of -40~85°C. This product is perfect for sfp dom, sfp module, dom module, and sfp+ optical transceiver applications.

Support and Services:

SFP+ Optical Transceiver Technical Support and Service:

• 24/7 support for technical support inquiries
• Product compatibility assistance
• Hardware and software installation support
• Troubleshooting
• Product repair and maintenance
• Warranty and return services

Packing and Shipping:

Packaging and Shipping for SFP+ Optical Transceiver:

• The product should be securely packaged to avoid any damage during transportation.
• The product should be shipped in an appropriate container or box to minimize any damage.
• The product should be shipped via a reliable shipping carrier with tracking.
• The product should be inspected prior to shipping to ensure its quality.
• The product should be shipped with appropriate documentation.

FAQ:
