Product Details:
|
| Features: | 1550nm SFP+ EX-SFP-10GE-ZR 80km | Product Name: | Juniper 10GBASE ZR |
|---|---|---|---|
| Transmission: | 80km | Application: | 10G Ethernet |
| Keywords: | 10GBASE ZR, Juniper 10G ZR | ||
| Highlight: | 10GBASE ZR Single Mode Transceiver,1550nm ZR Transceiver,EX-SFP-10GE-ZR ZR Transceiver |
||

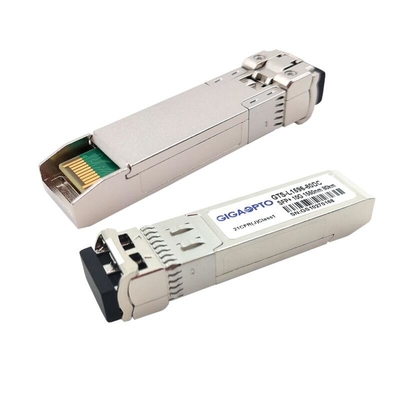

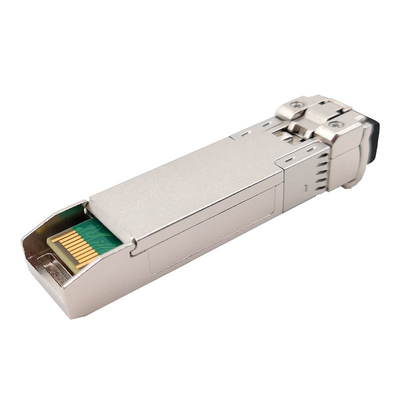

1550nm 10GBASE ZR Single Mode Transceiver 80km for Juniper EX-SFP-10GE-ZR
Description Of 10GBASE ZR
This 10GBASE ZR provides a high-speed data transfer rate of up to 10 Gigabits per second over a long distance of up to 80 kilometers using single-mode fiber optic cables. It’s an ideal choice for a wide range of applications in enterprise and telecommunications networks.
This Juniper EX-SFP-10GE-ZR compatible 10GBASE ZR transceiver is fully compliant with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
Specification Of 10GBASE ZR
| Compatible Brand | Juniper Network |
| P/N (Part No.) | EX-SFP-10GE-ZR |
| Type | 10GBASE ZR SFP+ |
| Wavelength (TX/RX) | 1550nm |
| Media | SMF |
| Max Cable Distance | 80km @ OS2 SMF |
| Interface | LC Duplex |
| Operating Temp. | 0 to 70°C ( Com.) |
| Optical Component | EML + APD |
| TX Output Power (dBm) | 0~5dBm |
| RX Sensitivity | < -23dBm |
| Extinction Ratio | >9dB |
| Saturation Input Power | >-7dBm |
| Power Dissipation | ≤1.5W |
| DOM/DDM | Support |
| Unit Weight | 25 gram |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 10km | ≤ 30km | ≤ 50km |
| Attenuator | 12dB | 10dB | 5dB |
Features Of 10GBASE ZR
Application Of 10GBASE ZR
Mechanical Dimensions Of 10GBASE ZR
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order of 10GBASE ZR? What is your MOQ of 10GBASE ZR?
Yes, we welcome a sample order to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of 10GBASE ZR?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of 10GBASE ZR optical modules?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.):-40 to 85℃
Q: Can you accept OEM/ODM order of 10GBASE ZR?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time of 10GBASE ZR?
For usual products, We keep stock, could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service of 10GBASE ZR?
All our customers can get three years quality warranty and lifetime technical support.
