Product Details:
|
| Production Name: | AQR113C 10GBASE T | Connector Type: | RJ-45 |
|---|---|---|---|
| Link: | 30m | Cable Type: | CAT.6a/CAT7 |
| Application: | LAN | Keywords: | 10GBASE T, Copper SFP |
| Highlight: | Copper SFP+ Optical Transceiver,SFP+ Optical 10GBASE Transceiver |
||

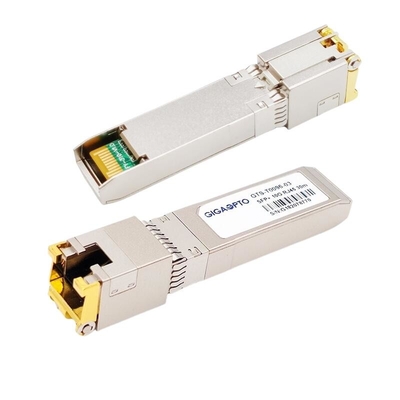

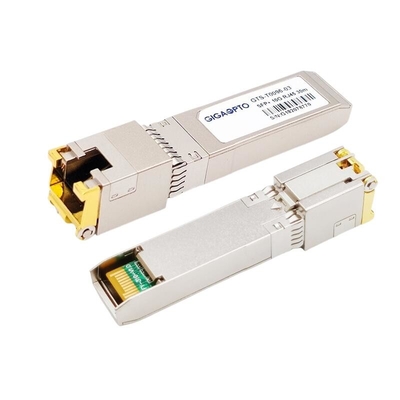

10GBASE T PHY AQR113C 1G/2.5G/5G/10G RJ-45 Copper SFP For cat6a/cat7
Description Of 10GBASE T Copper SFP
This 10GBASE T Copper SFP transceivers are a cost-effective and reliable solution for short-range data transmission applications that require high-speed data transfer over copper twisted-pair cables, provides 10GBase-T throughput up to 30m over cat6a/cat7 copper cable via RJ-45 connector.
The Juniper Network EX-SFP-10GE-T compatible 10GBASE T SFP is fully compliant with the Multi-Source Agreement (MSA) and 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T standards as specified in IEEE STD 802.3an, 802.3ab, and 802.3au.
This 10GBASE T copper SFP transceiver is functionally identical to the original Juniper EX-SFP-10GE-T.
Specification Of 10GBASE T Copper SFP
| Compatible Brand | Juniper Network |
| Compatible P/N(Part No.) | EX-SFP-10GE-T |
| Type | 10GBASE T |
| Transmission | 30m |
| Cable Type | Cat6a/Cat7 |
| Connector | RJ 45 |
| Wavelength | N/A |
| Optical Components | N/A |
| Power Consumption | ≤2.3W |
| DDM | Not Supported |
| EMC (Electro Magnetic Compatibility) | Supported |
| Operating Temp. | 0 to 70°C (32 to 158°F) |
| Unit Weight | 35 gram |
| Compliance | SFF-8431 MSA SFF-8432 MSA IEEE 802.3az RoHS |
Features Of 10GBASE T Copper SFP
Application Of 10GBASE T Copper SFP
Mechanical Specifications (Unit:mm) Of 10GBASE T Copper SFP
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order of this 10GBASE T Copper SFP? What is your MOQ of this 10GBASE T Copper SFP?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for this 10GBASE T Copper SFP?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return this 10GBASE T Copper SFP if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this 10GBASE T Copper SFP?
Yes, we could provide an OEM service and make the products with your own label.
