Product Details:
|
| Features: | 1000BASE-BX SFP | Product Name: | HP SFP GBIC Module |
|---|---|---|---|
| Transmission: | 20km | Wavelength: | TX1490nm RX1310nm |
| Application: | Gigabit Ethernet，Fiber Channel | Keywords: | J9142B-20,SFP GBIC Module |
| Highlight: | 20km SFP GBIC Module,Bidirectional Single Fiber Transceiver,SFP GBIC HP J9142B-20 Module |
||

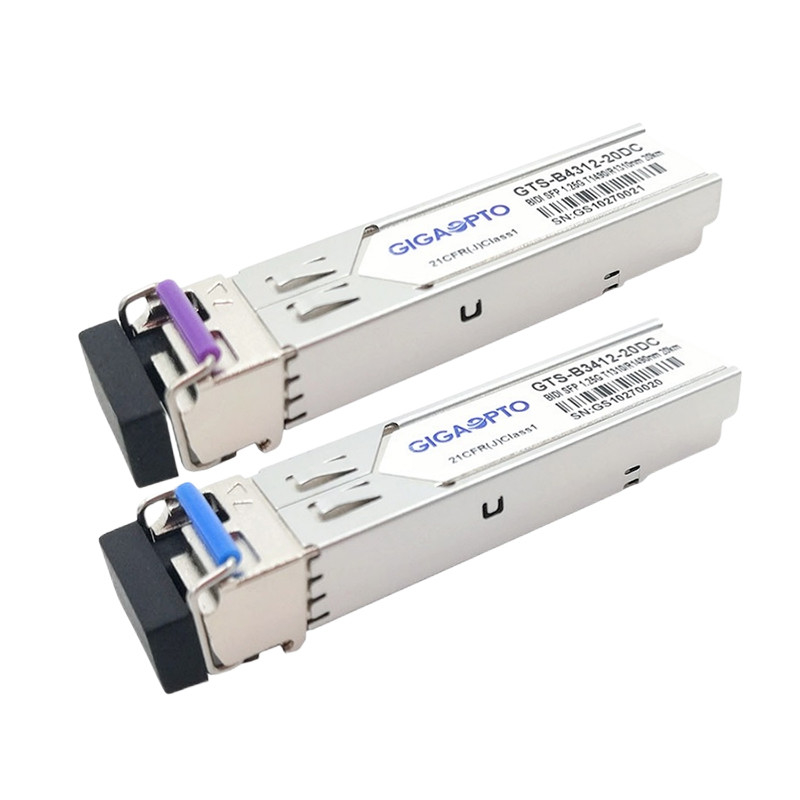

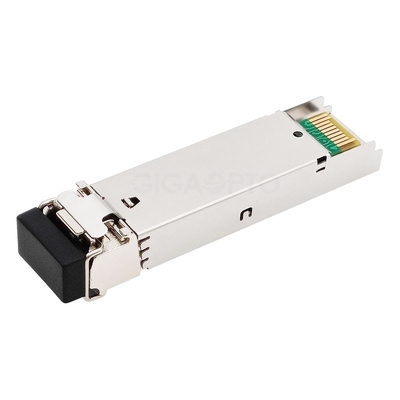

HP J9142B-20 Compatible 1000BASE-BX-D 20km SFP GBIC Module
Description Of HP J9142B-20 Compatible SFP GBIC Module
The HPE J9142B-20 compatible SFP GBIC module is a small form factor pluggable module for Gigabit Ethernet 1000BASE-BX and Fiber Channel single fiber applications by using a 1490nm transmitter and 1310nm receiver. A max transmission can reach up to 20km over single strand OS2 fiber cable.
The HPE J9142B-20 compatible SFP GBIC module is tested in targeted switches for superior performance, quality, and reliability. It is designed to be compatible with HPE networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters.
The HPE J9142B-20 compatible SFP GBIC module is a reliable and high-performance networking component that is commonly used in enterprise and data center environments for long-range fiber optic connections.
Specification Of HP J9142B-20 Compatible SFP GBIC Module
| Compatible Brand | HPE |
| Compatible P/N | J9142B-20 |
| Form Factor | SFP GBIC module |
| Data Rate | 1.25Gbps |
| Wavelength (nm) | 1490nm/1310nm |
| Link Distance | 20km (12.4 miles) |
| Cable Type | OS2 SMF |
| Connector Type | LC Simplex |
| DDM/DOM | Supported |
| Optical Components | DFB Laser, PIN Photodetector |
| TX Output Power | -9~-3dBm |
| RX Sensitivity | <-20dBm |
| Extinction Ratio | >9dB |
| RX Saturation | >-3dBm |
| OEM/ODM | Support |
| Warranty | 3 Years |
| Certification | CE,FCC, ROHS |
Features Of HP J9142B-20 Compatible SFP GBIC Module
Application Of HP J9142B-20 Compatible SFP GBIC Module
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS, and SGS tests, you can trust us.
Q: What about the warranty for this HP J9142B-20 compatible SFP GBIC module?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM on this HP J9142B-20 compatible SFP GBIC module?
Yes. We accept OEM & ODM
Q: How can I get a sample to check the quality of this HP J9142B-20 compatible SFP GBIC module?
Free sample is available.
