Product Details:
|
| Features: | 1.25G BIDI Single Mode SFP | Product Name: | HP Compatible SFP Transceiver |
|---|---|---|---|
| Distance: | 20km | Wavelength: | TX1310nm RX1490nm |
| Application: | Ethernet,Fiber Channel | Keywords: | Single Mode SFP Module, J9143B-20 |
| Highlight: | BIDI Single Mode SFP Transceiver,HPE J9143B-20 BIDI SFP Transceiver,Compatible HPE BIDI SFP Transceiver |
||

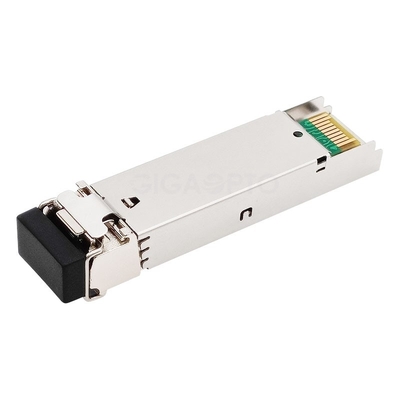

HPE J9143B-20 Compatible BIDI Single Mode SFP Transceiver
Description Of HPE J9143B-20 Compatible Single Mode SFP Transceiver
The HPE J9143B-20 compatible BIDI single mode SFP transceiver operates at 1000BASE-BX with a wavelength of Tx1310nm Rx1490nm with a maximum reach of 20km. Each of these WDM transceiver modules is individually programmed in-house and tested for performance and functionality as well as compatibility tested in target HP platforms.
Specification Of HPE J9143B-20 Compatible Single Mode SFP Transceiver
| Compatible Brand | HPE |
| Compatible P/N | J9143B-20 |
| Form /Technology | 1-Fiber BIDI SFP |
| Data Rate (Gbps) | 1.25Gb/s |
| Fiber Link Distance | 20km (12.4miles) |
| Fiber Type | single mode fiber |
| Interface | Simplex LC |
| DOM Support | Yes |
| Wavelength (nm) | Tx1310nm Rx1490nm |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Optical Components | FP laser/PIN photodetector |
| TX Output Power | -9~-3dBm |
| Rx Sen. | < -20dBm |
| Ext.Ratio | >9dB |
| RX Overload | >-3dBm |
Features Of HPE J9143B-20 Compatible Single Mode SFP Transceiver
Application Of HPE J9143B-20 Compatible Single Mode SFP Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order of this HPE J9143B-20 compatible single-mode SFP transceiver? What is your MOQ of this HPE J9143B-20 compatible single-mode SFP transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for this HPE J9143B-20 compatible single-mode SFP transceiver?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the HPE J9143B-20 compatible single-mode SFP transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this HPE J9143B-20 compatible single-mode SFP transceiver?
Yes, we could provide an OEM service and make the products with your own label.
