Product Details:
|
| Features: | 1G SFP DWDM | Product Name: | HP SFP Module |
|---|---|---|---|
| Channel: | 100GHz C17-C61 | Optical Budget: | 32dB |
| Connector: | LC Duplex | Keywords: | HP SFP Module,DWDM-SFP1G-xx.xx-100 |
| Highlight: | LC Duplex HP SFP Module,DWDM-SFP1G-xx.xx-100 HP SFP Module,32dB HP Compatible SFP module |
||

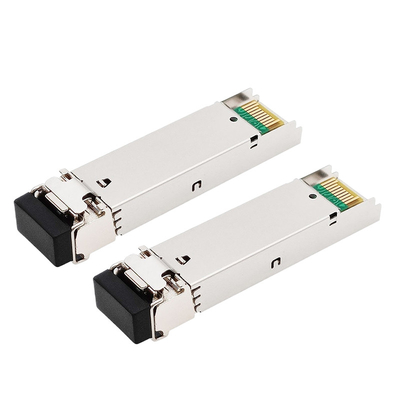

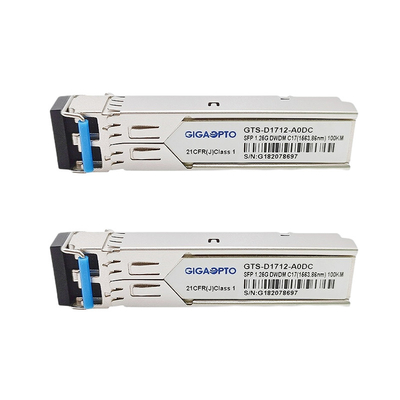

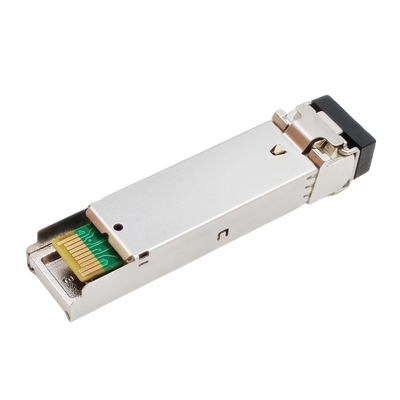

32dB HP SFP Module SM 100GHz DWDM-SFP1G-xx.xx-100
Description Of Compatible HP SFP Module
The HP compatible SFP module supports a data rate of 1.25Gbps and operates at a nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T.
This HP compatible SFP module delivers excellent performance and durability, and is an ideal equivalent to HP DWDM-SFP1G-xx.xx-100 transceiver but with a lower price and guaranteed quality, enabling it to work with HP SFP ports networking equipment.
Specification Of Compatible HP SFP Module
| Compatible Brand | HP |
| Compatible P/N | DWDM-SFP1G-xx.xx-100 |
| Data Rate (Gbps) | 1.25Gbps |
| Power Budget (dB) | 32 dB |
| Cable | single-mode fiber |
| DDM/DOM | Supported |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1528.7~-1563.86nm |
| Transmitter Part | DFB DWDM(Cooled) |
| Receiver Part | APD Photo receiver |
| TX Power | 0~5dBm |
| RX Sensitivity | < -32dBm |
| Ext. Ratio | >9dB |
| Overload | >-8dBm |
| Unit Weight | 30 gram |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate
attenuator according to the table.
| Distance | ≤15km | ≤35km | ≤55km |
| Attenuator | 15dB | 10dB | 5dB |
Ordering Information Of Compatible HP SFP Module
| Part Number | Description | ITU Channel | Frequency(THz) | Wavelength(nm) | Reach (km) |
| DWDM-SFP1G-63.68-100 | 32dB Compatible HP SFP Module | C17 | 191.7 | 1563.86 | 100 |
| DWDM-SFP1G-63.05-100 | 32dB Compatible HP SFP Module | C18 | 191.8 | 1563.05 | 100 |
| DWDM-SFP1G-62.23-100 | 32dB Compatible HP SFP Module | C19 | 191.9 | 1562.23 | 100 |
| DWDM-SFP1G-61.42-100 | 32dB Compatible HP SFP Module | C20 | 192 | 1561.42 | 100 |
| DWDM-SFP1G-60.61-100 | 32dB Compatible HP SFP Module | C21 | 192.1 | 1560.61 | 100 |
| DWDM-SFP1G-59.79-100 | 32dB Compatible HP SFP Module | C22 | 192.2 | 1559.79 | 100 |
| DWDM-SFP1G-58.98-100 | 32dB Compatible HP SFP Module | C23 | 192.3 | 1558.98 | 100 |
| DWDM-SFP1G-58.17-100 | 32dB Compatible HP SFP Module | C24 | 192.4 | 1558.17 | 100 |
| DWDM-SFP1G-57.36-100 | 32dB Compatible HP SFP Module | C25 | 192.5 | 1557.36 | 100 |
| DWDM-SFP1G-56.55-100 | 32dB Compatible HP SFP Module | C26 | 192.6 | 1556.55 | 100 |
| DWDM-SFP1G-55.75-100 | 32dB Compatible HP SFP Module | C27 | 192.7 | 1555.75 | 100 |
| DWDM-SFP1G-54.94-100 | 32dB Compatible HP SFP Module | C28 | 192.8 | 1554.94 | 100 |
| DWDM-SFP1G-54.13-100 | 32dB Compatible HP SFP Module | C29 | 192.9 | 1554.13 | 100 |
| DWDM-SFP1G-53.33-100 | 32dB Compatible HP SFP Module | C30 | 193 | 1553.33 | 100 |
| DWDM-SFP1G-52.52-100 | 32dB Compatible HP SFP Module | C31 | 193.1 | 1552.52 | 100 |
| DWDM-SFP1G-51.72-100 | 32dB Compatible HP SFP Module | C32 | 193.2 | 1551.72 | 100 |
| DWDM-SFP1G-50.92-100 | 32dB Compatible HP SFP Module | C33 | 193.3 | 1550.92 | 100 |
| DWDM-SFP1G-50.12-100 | 32dB Compatible HP SFP Module | C34 | 193.4 | 1550.12 | 100 |
| DWDM-SFP1G-49.32-100 | 32dB Compatible HP SFP Module | C35 | 193.5 | 1549.32 | 100 |
| DWDM-SFP1G-48.51-100 | 32dB Compatible HP SFP Module | C36 | 193.6 | 1548.51 | 100 |
| DWDM-SFP1G-47.72-100 | 32dB Compatible HP SFP Module | C37 | 193.7 | 1547.72 | 100 |
| DWDM-SFP1G-46.92-100 | 32dB Compatible HP SFP Module | C38 | 193.8 | 1546.92 | 100 |
| DWDM-SFP1G-46.12-100 | 32dB Compatible HP SFP Module | C39 | 193.9 | 1546.12 | 100 |
| DWDM-SFP1G-45.32-100 | 32dB Compatible HP SFP Module | C40 | 194 | 1545.32 | 100 |
| DWDM-SFP1G-44.53-100 | 32dB Compatible HP SFP Module | C41 | 194.1 | 1544.53 | 100 |
| DWDM-SFP1G-43.73-100 | 32dB Compatible HP SFP Module | C42 | 194.2 | 1543.73 | 100 |
| DWDM-SFP1G-42.94-100 | 32dB Compatible HP SFP Module | C43 | 194.3 | 1542.94 | 100 |
| DWDM-SFP1G-42.14-100 | 32dB Compatible HP SFP Module | C44 | 194.4 | 1542.14 | 100 |
| DWDM-SFP1G-41.35-100 | 32dB Compatible HP SFP Module | C45 | 194.5 | 1541.35 | 100 |
| DWDM-SFP1G-40.56-100 | 32dB Compatible HP SFP Module | C46 | 194.6 | 1540.56 | 100 |
| DWDM-SFP1G-39.77-100 | 32dB Compatible HP SFP Module | C47 | 194.7 | 1539.77 | 100 |
| DWDM-SFP1G-38.98-100 | 32dB Compatible HP SFP Module | C48 | 194.8 | 1538.98 | 100 |
| DWDM-SFP1G-38.19-100 | 32dB Compatible HP SFP Module | C49 | 194.9 | 1538.19 | 100 |
| DWDM-SFP1G-37.40-100 | 32dB Compatible HP SFP Module | C50 | 195 | 1537.4 | 100 |
| DWDM-SFP1G-36.61-100 | 32dB Compatible HP SFP Module | C51 | 195.1 | 1536.61 | 100 |
| DWDM-SFP1G-35.82-100 | 32dB Compatible HP SFP Module | C52 | 195.2 | 1535.82 | 100 |
| DWDM-SFP1G-35.04-100 | 32dB Compatible HP SFP Module | C53 | 195.3 | 1535.04 | 100 |
| DWDM-SFP1G-34.25-100 | 32dB Compatible HP SFP Module | C54 | 195.4 | 1534.25 | 100 |
| DWDM-SFP1G-33.47-100 | 32dB Compatible HP SFP Module | C55 | 195.5 | 1533.47 | 100 |
| DWDM-SFP1G-32.68-100 | 32dB Compatible HP SFP Module | C56 | 195.6 | 1532.68 | 100 |
| DWDM-SFP1G-31.90-100 | 32dB Compatible HP SFP Module | C57 | 195.7 | 1531.9 | 100 |
| DWDM-SFP1G-31.12-100 | 32dB Compatible HP SFP Module | C58 | 195.8 | 1531.12 | 100 |
| DWDM-SFP1G-30.33-100 | 32dB Compatible HP SFP Module | C59 | 195.9 | 1530.33 | 100 |
| DWDM-SFP1G-29.55-100 | 32dB Compatible HP SFP Module | C60 | 196 | 1529.55 | 100 |
| DWDM-SFP1G-28.77-100 | 32dB Compatible HP SFP Module | C61 | 196.1 | 1528.77 | 100 |
Features Of Compatible HP SFP Module
Application Of Compatible HP SFP Module
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order? What is your MOQ Of Compatible HP SFP Module?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for the Compatible HP SFP Module?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Compatible HP SFP Module if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this Compatible HP SFP Module?
Yes, we could provide an OEM service and make the products with your own label.
