Product Details:
|
| Features: | 1000BASE-LH40 SFP | Product Name: | HP Compatible SFP Transceiver |
|---|---|---|---|
| Transmission: | 40km | Wavelength(TX/RX): | 1310nm |
| Applications: | 1GFC,Ethernet | Keywords: | JD061A,HP Compatible SFP Transceiver |
| Highlight: | 1310nm 1000BASE-LH SFP,40km 1000BASE-LH SFP,JD061A HP SFP Module |
||

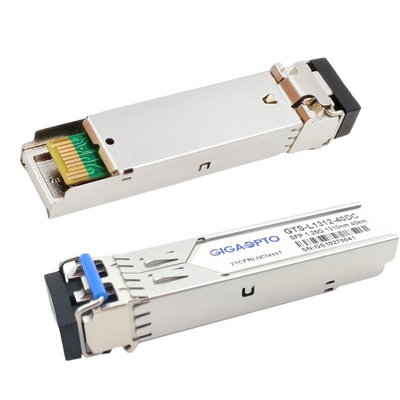

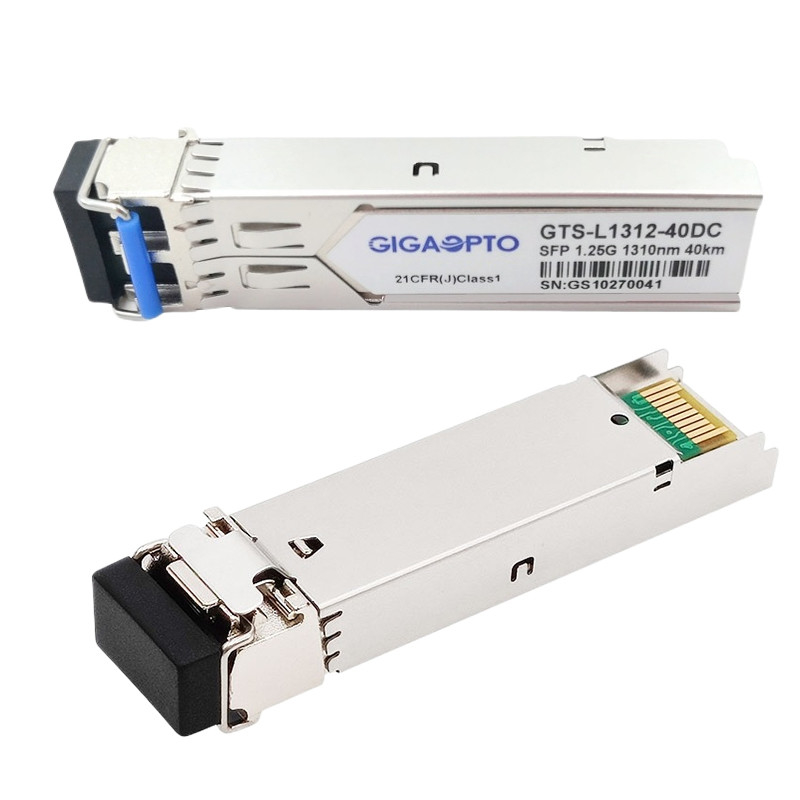

1310nm HP JD061A Compatible 1000BASE-LH SFP Transceiver LC SMF 40km
Description Of HP JD061A Compatible 1000BASE-LH SFP Transceiver
This HP JD061A Compatible transceiver is designed for 1000BASE-LH40 Gigabit Ethernet and 1G Fiber Channel extended reach application, operating on standard single-mode fiber-optic link spans of up to 40km in length with nominal wavelength of 1310nm.
This module is featuring with high quality components and our proven technology, providing the equivalent functions to OEM HP JD061A transceivers, which is competent to be 100% compatible with HP SFP ports host devices including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters.
Specification Of HP JD061A Compatible 1000BASE-LH SFP Transceiver
| Compatible Brand | HP |
| Compatible P/N | JD061A |
| Transceiver Type | SFP (Mini-GBIC) |
| Bandwidth | 1.06 ~ 1.25Gb/s |
| Max Transmission | 40km |
| Media Type | SMF |
| Interface | Double-LC |
| Diagnostic (DDM/DOM) | Support |
| Case Operating Temperature | Com./ Ind. |
| Transmitter Type | 1310nm DFB Laser |
| Receiver Type | PIN Photodiode |
| TX Average Power | -5~0dBm |
| RX Sensitivity | < -24dBm |
| Extinction Ratio | >9dB |
| Receiver Overload | >-3dBm |
| OEM/ODM | Support |
| Unit Weight | 25 gram |
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤10km | ≤20km |
| Attenuator | 10dB | 5dB |
Features of HP JD061A Compatible 1000BASE-LH SFP Transceiver
Application Of HP JD061A Compatible 1000BASE-LH SFP Transceiver
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of HP JD061A Compatible 1000BASE-LH SFP Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C, and more.
Q: How can you guarantee the quality of the HP JD061A Compatible 1000BASE-LH SFP Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of the HP JD061A Compatible 1000BASE-LH SFP Transceiver?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.)::-40 to 85℃
Q: Can you accept OEM/ODM order for this HP JD061A Compatible 1000BASE-LH SFP Transceiver?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time of HP JD061A Compatible 1000BASE-LH SFP Transceiver?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service for HP JD061A Compatible 1000BASE-LH SFP Transceiver?
All our customers can get three years quality warranty and lifetime technical support.
