Product Details:
|
| Features: | 1G SFP LH40 | Product Name: | HP SFP Module |
|---|---|---|---|
| Reach: | 40km | Wavelength: | 1550nm |
| Applications: | Fiber Channel, Ethernet | Keywords: | JD062A, HP SFP Module |
| Highlight: | LC SMF HP JD062A,1000BASE LH40 HP JD062A,Fiber Channel HP SFP Module |
||

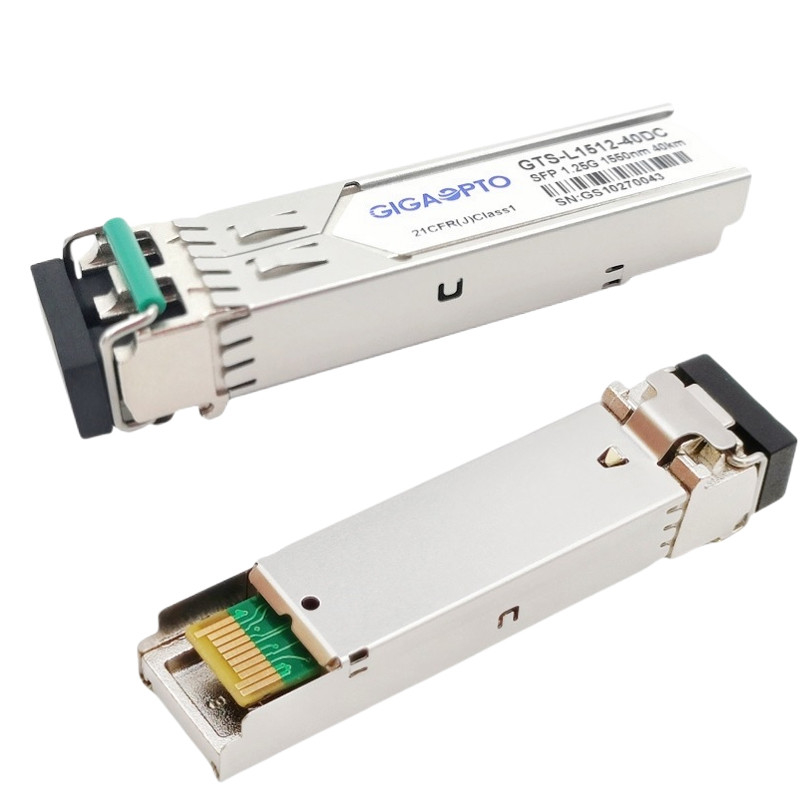

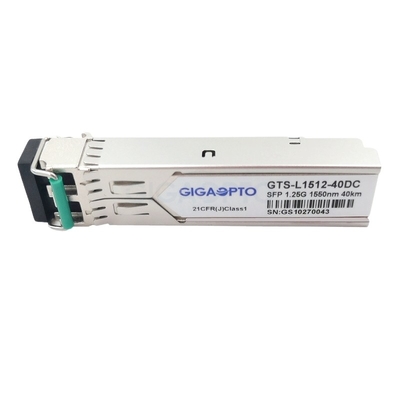

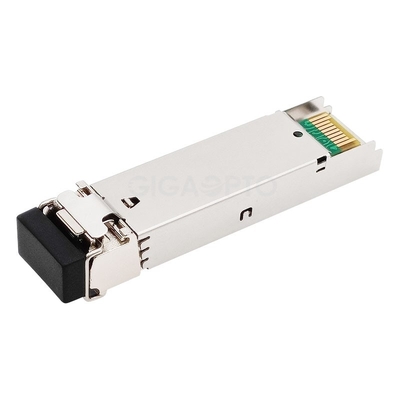

1550nm HP JD062A Compatible 1000BASE LH40 SFP LC SMF 40km For X120
Description Of HP JD062A Compatible 1000BASE LH40 SFP
This HP JD062A compatible transceiver is designed for 1000BASE-LH40 Gigabit Ethernet and 1G Fiber Channel extended reach application, operating on standard single-mode fiber-optic link spans of up to 40km in length with nominal wavelength of 1550nm.
This 1000BASE-EX SFP module has been programmed and tested to be fully compatible with HP X120 1G SFP LC LH40 1550nm transceiver JD062A, which can be applied in a wide range of HP equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters.
Specification Of HP JD062A Compatible 1000BASE LH40 SFP
| Compatible Brand | HP |
| Compatible P/N | JD062A |
| Form Factor | SFP (Mini-GBIC) |
| Max Data Rate | 1.25Gbps |
| Max Fiber Link | 40km |
| Fiber Type | Single-mode fiber |
| Interface | Double-LC |
| Diagnostic (DDM/DOM) | Support |
| Case Operating Temperature | Com./ Ind. |
| Laser Type | DFB 1550nm |
| Receiver Part | PIN Photodiode |
| TX Output Power | -5~0dBm |
| RX Sensitivity | < -24dBm |
| Extinction Ratio | >9dB |
| Receiver Overload | >-3dBm |
| Modulation Format | NRZ |
| Unit Weight | 25 gram |
Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.
| Distance | ≤10km | ≤20km |
| Attenuator | 10dB | 5dB |
Features Of HP JD062A Compatible 1000BASE LH40 SFP
Application Of HP JD062A Compatible 1000BASE LH40 SFP
This HP JD062A Compatible 1000BASE LH40 SFP Can Work With Below HP Equipment
| Series | Device Name | Series | Device Name | Series | Device Name | Series | Device Name |
| HP | JH016A | HP | JG927A | HP | JG302C | HP | JG936A |
| JH017A | JG928A | JG303B | JG937A | ||||
| JH018A | JG960A | JE069A | JG938A | ||||
| JH019A | JG961A | JE067A | JG939A | ||||
| JH327A | JG962A | JE068A | JG940A | ||||
| JH328A | JG963A | JE066A | JG941A | ||||
| JH329A | JG223A | JG237A | JH145A | ||||
| JH330A | JG222A | JG236A | JH146A | ||||
| JG708B | JG221A | JG309B | JH147A | ||||
| JG538A | JG315B | JG310B | JH148A | ||||
| JG536A | JD318B | JE072B | JH149A | ||||
| JG540A | JD319B | JE073B | JG896A | ||||
| JG537A | JD320B | JE074B | JG894A | ||||
| JG539A | JD313B | JG091B | JG898A | ||||
| JG920A | JG304B | JH323A | JC099B | ||||
| JG921A | JG305B | JH324A | JC100B | ||||
| JG922A | JG306C | JH325A | JC103B | ||||
| JG923A | JG307C | JH326A | JC104B | ||||
| JG924A | JG299B | JG932A | JC105B | ||||
| JG925A | JG300B | JG933A | JC101B | ||||
| JG926A | JG301C | JG934A | JG225B |
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS test, you can trust us.
Q: What about the warranty of this HP JD062A Compatible 1000BASE LH40 SFP?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM for this HP JD062A Compatible 1000BASE LH40 SFP?
Yes. We accept OEM & ODM
Q: How can I get a sample of HP JD062A Compatible 1000BASE LH40 SFP to check your quality?
A free sample is available.
