Product Details:
|
| Features: | 1G SFP LC LX | Product Name: | HP Switch Module |
|---|---|---|---|
| Max Link: | 20km | Media: | SMF |
| Applications: | Ethernet,1GFC | Keywords: | JD119B, HP Switch Module |
| Highlight: | HP JD119B Compatible 1G LX SFP,1310nm 1G LX SFP,SMF LC HP SFP Module |
||

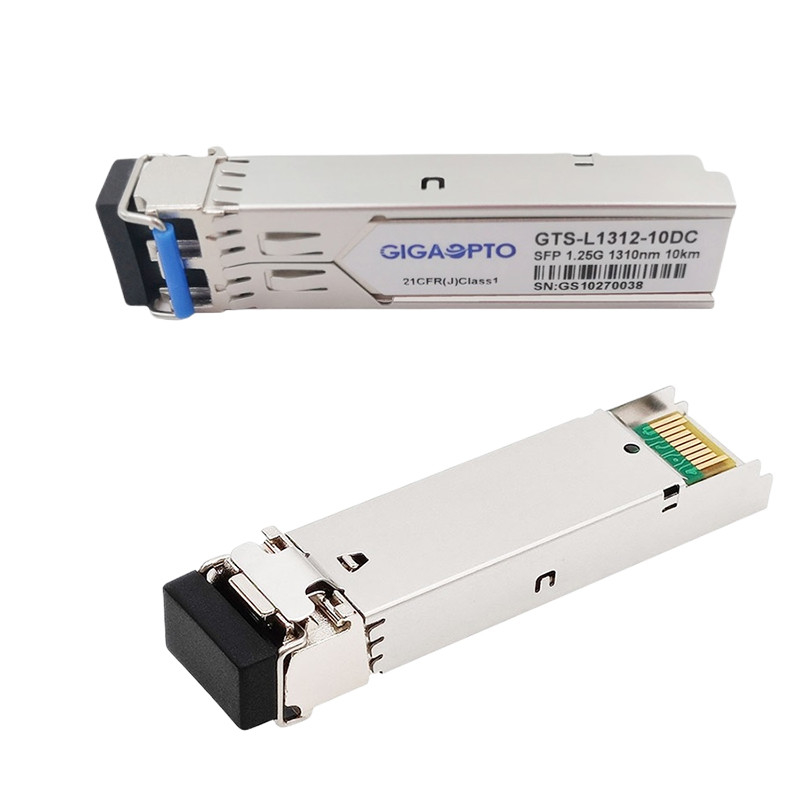

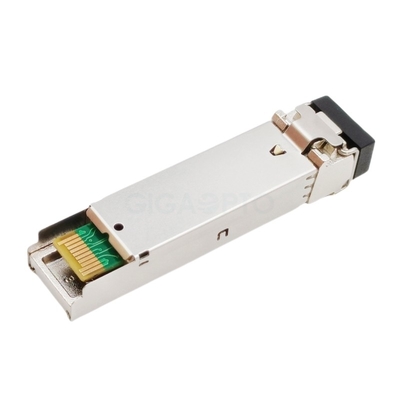

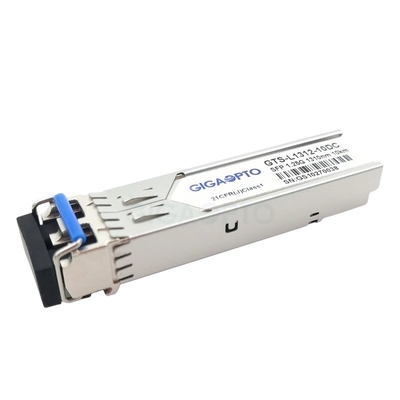

HP JD119B Compatible 1G LX SFP Switch Module 1310nm SMF LC DOM
Description Of HP JD119B Compatible Switch Module
The HP JD119B compatible switch module is a small form-factor pluggable (SFP) transceiver that is designed to be used with HPE networking equipment. This 1G LC LX switch module is compatible with OEM HPE X120 1G SFP mini-GBIC modules and provides a 1 Gigabit Ethernet interface over single-mode fiber optic cable with a maximum reach of up to 20km with duplex LC connector.
Specification Of HP JD119B Compatible Switch Module
| Compatible Brand | HPE H3C |
| Compatible P/N | JD119B |
| Transceiver Type | SFP |
| Bandwidth (Gbps) | 1.063-1.25 Gbps |
| Wavelength (TX/RX) | 1310nm |
| Connector | Dual LC |
| Max Transmission | 20km |
| Media | Single-mode fiber |
| Digital Diagnostics Monitoring (DDM) | Support |
| TX Part | 1310nm FP laser |
| RX Part | PIN photo-detector |
| TX Power | -9.5 to -3dBm |
| RX Sensitivity | <-23dBm |
| Extinction Ratio | >9dB |
| RX Saturation | >-3dBm |
| Operating Case Temperature | 0 to 70°C; -40 to 85°C |
| Unit Weight | 25 gram |
Features Of HP JD119B Compatible Switch Module
Application Of HP JD119B Compatible Switch Module
This HP JD119B Compatible Switch Module Can Work With Below HP Equipment
| Series | Device Name | Series | Device Name | Series | Device Name | Series | Device Name |
| HP | JH016A | HP | JG927A | HP | JG302C | HP | JG936A |
| JH017A | JG928A | JG303B | JG937A | ||||
| JH018A | JG960A | JE069A | JG938A | ||||
| JH019A | JG961A | JE067A | JG939A | ||||
| JH327A | JG962A | JE068A | JG940A | ||||
| JH328A | JG963A | JE066A | JG941A | ||||
| JH329A | JG223A | JG237A | JH145A | ||||
| JH330A | JG222A | JG236A | JH146A | ||||
| JG708B | JG221A | JG309B | JH147A | ||||
| JG538A | JG315B | JG310B | JH148A | ||||
| JG536A | JD318B | JE072B | JH149A | ||||
| JG540A | JD319B | JE073B | JG896A | ||||
| JG537A | JD320B | JE074B | JG894A | ||||
| JG539A | JD313B | JG091B | JG898A | ||||
| JG920A | JG304B | JH323A | JC099B | ||||
| JG921A | JG305B | JH324A | JC100B | ||||
| JG922A | JG306C | JH325A | JC103B | ||||
| JG923A | JG307C | JH326A | JC104B | ||||
| JG924A | JG299B | JG932A | JC105B | ||||
| JG925A | JG300B | JG933A | JC101B | ||||
| JG926A | JG301C | JG934A | JG225B |
Package Outline Of HP JD119B Compatible Switch Module
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order? What is your MOQ of the HP JD119B Compatible Switch Module?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for HP JD119B Compatible Switch Module?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the HP JD119B Compatible Switch Module if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this HP JD119B Compatible Switch Module?
Yes, we could provide an OEM service and make the products with your own label.
