Product Details:
|
| Features: | SFP-10G-ZR 80km | Product Name: | HPE Transceiver Module |
|---|---|---|---|
| Wavelength: | 1550nm | Application: | Ethernet,Data Center,10GFC |
| Keywords: | SFP-10G-ZR, HPE Compatible SFP | Interface: | Duplex LC |
| Highlight: | HPE Compatible SFP-10G-ZR,1550nm SFP-10G-ZR,80km HP SFP Module |
||

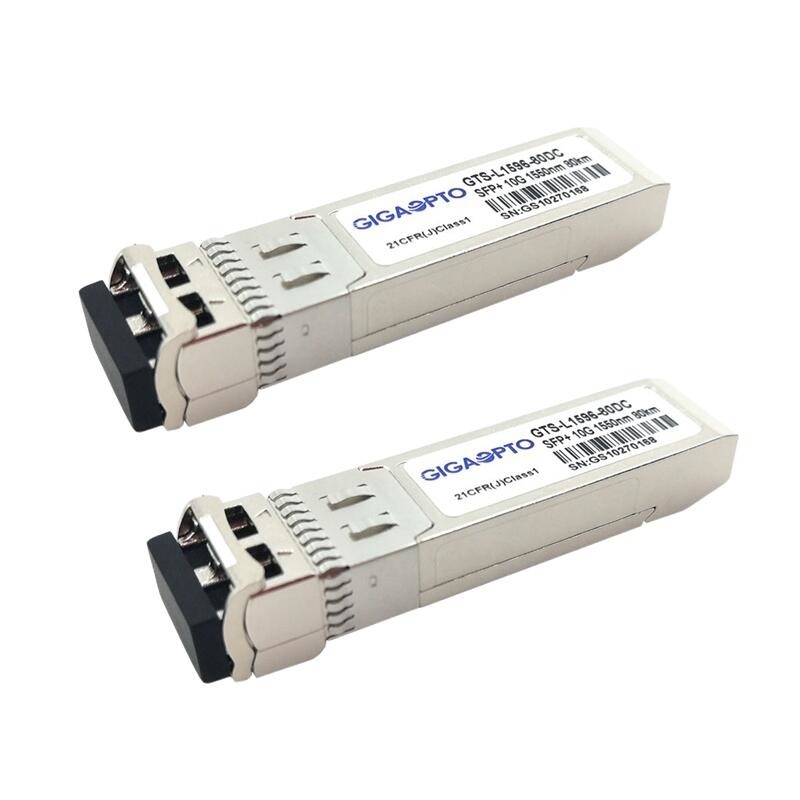

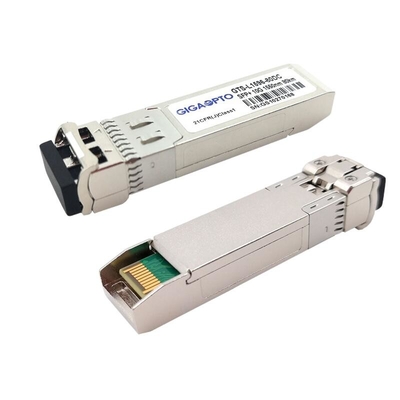

1550nm HPE Compatible Transceiver 80km SM Module LC For SFP-10G-ZR
Description Of HPE SFP-10G-ZR compatible SFP transceiver
This HPE SFP-10G-ZR compatible SFP transceiver is manufactured with high-quality components and tested strictly to meet or exceed original HPE 10GBASE-ER transceiver (SFP-10G-ZR) for 10 Gigabit connectivity and max link up to 80km over G.652 dual fiber single-mode fiber (SMF) optical cable using a wavelength of 1550nm via an LC connector.
This HPE SFP-10G-ZR compatible SFP transceiver is fully compliant with SFF-8431, SFF-8432, IEEE 802.3ae standards. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472,which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
Specification Of HPE SFP-10G-ZR compatible SFP transceiver
| Compatible Brand | HPE | P/N (Part No.) | SFP-10G-ZR |
| Wavelength | 1550nm | Type | 10Gbps SFP+ |
| Cable Type | single-mode fiber | Cable Reach | 80km @ G.652 |
| Connector | LC Duplex | Temp. | 0 to 70°C ( Com.) |
| Transmitter Type | EML Laser | Receiver Type | APD |
| TX Power | 0~5dBm | RX Sensitivity | < -23dBm |
| Ext. Ratio | >9dB | Saturation Input Power | >-7dBm |
| Power Consumption | ≤1.5W | Optical Budget (dB) | 23dB |
| DOM/DDM | Support | Unit Weight | 25 gram |
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 10km | ≤ 30km | ≤ 50km |
| Attenuator | 12dB | 10dB | 5dB |
Features Of HPE SFP-10G-ZR compatible SFP transceiver
Application Of HPE SFP-10G-ZR compatible SFP transceiver
Mechanical Dimensions Of HPE SFP-10G-ZR compatible SFP transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us ?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes,our compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista,HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order of this HPE SFP-10G-ZR compatible SFP transceiver? What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: What is your payment terms ?
Usually,we need prepayment by T/T,West Union or Paypal.
Could also support L/C,Credit terms.
Q: Could I return the products if there is a quality problem ?
Yes,if there is a quality problem happen,we could accept free exchange.
Q: Could i use our own logo and label on this HPE SFP-10G-ZR compatible SFP transceiver?
Yes,we could provide a OEM service and make the products with your own label.
