Product Details:
|
| Features: | 8GFC-SW | Product Name: | Cisco Fiber Transceiver |
|---|---|---|---|
| Wavelength: | 850nm | Transmission: | 150m |
| Application: | 2G/4G/8G Fiber Channel | Keywords: | DS-SFP-FC8G-SW, 8GFC-SW |
| Highlight: | RoHs Cisco DS-SFP-FC8G-SW,850nm Cisco DS-SFP-FC8G-SW,150m MMF CISCO Compatible Transceivers |
||

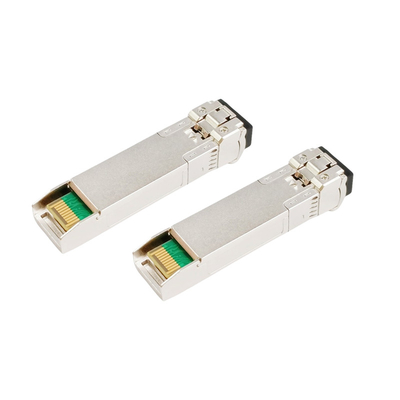

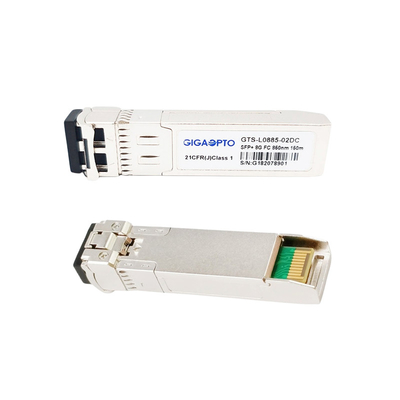

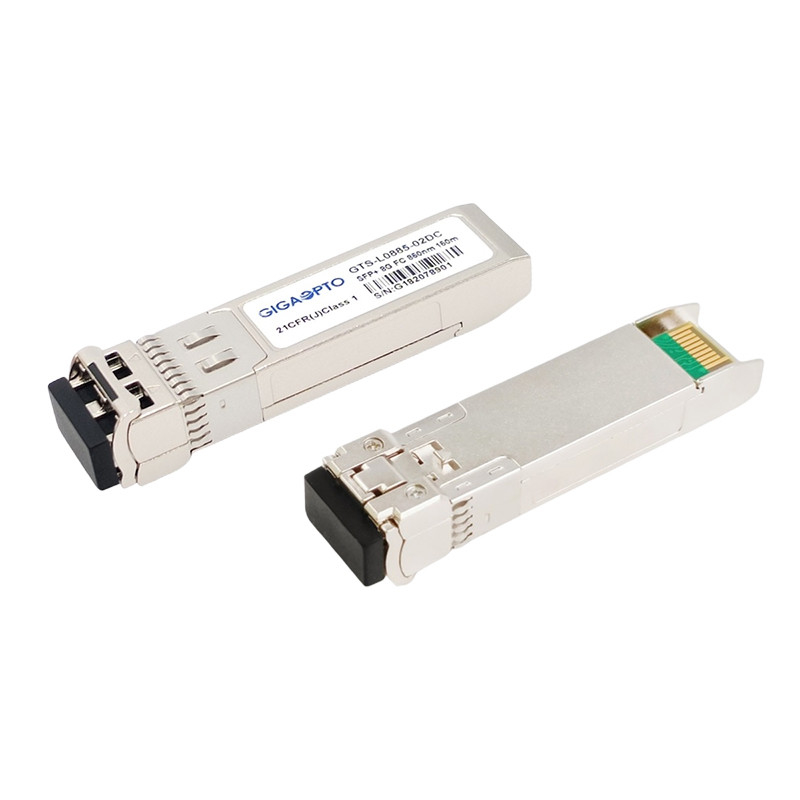

850nm Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver 150m MMF
Description Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
This Cisco DS-SFP-FC8G-SW Compatible 8GFC-SW transceiver is designed for 8Gbps short wave fibre channel connectivity applications, which provides link up to 300m over multi-mode fiber(MMF) via duplex LC receptacle.
This 8GFC-SW transceiver uses top quality 850nm VSCEL Laser transmitter and PIN Photodiode receiver. It is fully compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0 and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1.
This 8GFC-SW optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco DS-SFP-FC8G-SW transceivers, with excellent interoperation on Cisco SFP+ port data center switches, for example, Cisco MDS 9000 Series Multilayer Switches.
Specification Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
| Compatible Brand | Cisco | Compatible P/N | DS-SFP-FC8G-SW |
| Packaging | SFP+ | Bandwidth (Gbps) | 8.5Gbps |
| Wavelength | 850nm | Cable Reach | 300m |
| Optical Connector | Duplex LC | Cable Type | Multimode Fiber |
| LD Type | VCSEL Laser | PD Type | PIN Photodiode |
| TX Average Power | -6~-1dBm | RX Sensitivity | <-11.1dBm |
| Extinction Ratio | >3.5dB | Saturation Input Power | >0.5dBm |
| Operating Temp. | 0 to 70°C (32 to 158°F) | DDM/DOM | Supported |
| Compliance | IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11, RoHS | ||
Features Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
Application Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
Mechanical Dimensions Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
1. Competitive prices.
2. High quality products and services.
3. Fully compatible (Cisco/Juniper/HP/Huawei/Alcatel-Lucent Nokia/H3C...)
4. Big capability of manufacture for 40K~100K pcs per month.
5. Independent R&D ability.
6. Keep stock, Fast delivery
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order of this Cisco DS-SFP-FC8G-SW compatible 8GFC fiber transceiver? What is your MOQ?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: What are your payment terms for this Cisco DS-SFP-FC8G-SW compatible 8GFC fiber transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the products if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this Cisco DS-SFP-FC8G-SW compatible 8GFC fiber transceiver?
Yes, we could provide an OEM service and make the products with your own label.
