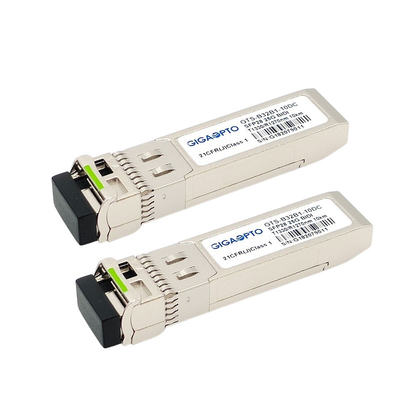

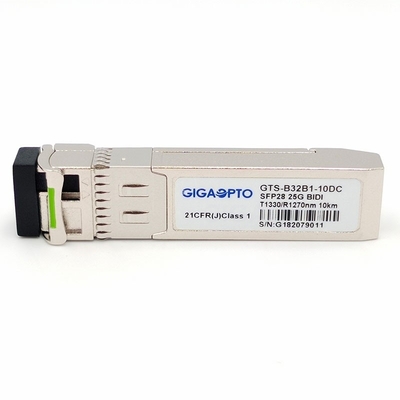

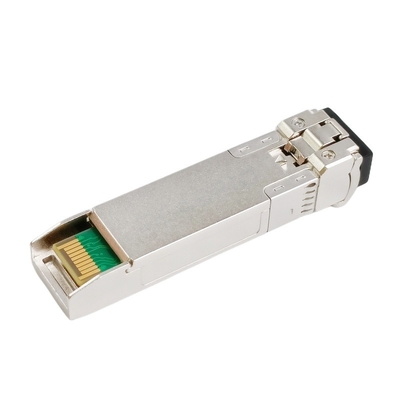

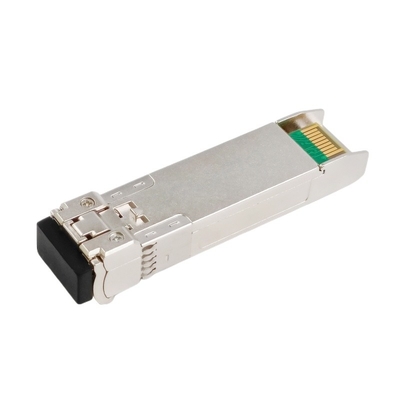

SFP28 25GBASE TX-1330nm RX-1270nm 10km Simplex LC SMF Optical Transceiver Module DOM

SFP28 25GBASE SFP-25GBX-D-10 1330nm/1270nm 10KM OEM Single Mode Optical Transceiver DOM


Description

The Cisco SFP-25GBX-D-10 compatible module provides 25GBase throughput up to 10km over single mode fiber (SMF) using a wavelength of 1330nm-TX/1270nm-RX via an LC simplex connector. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standards.

This Cisco SFP-25GBX-D-10 compatible optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco original transceivers.

Specification Of 25GBASE-BX Cisco SFP-25GBX-D-10 Single Mode Optical Transceiver


Features Of 25GBASE-BX Cisco SFP-25GBX-D-10 Single Mode Optical Transceiver

• Hot-pluggable SFP28 Cisco compatible optical transceiver
• Functionally equivalent to SFP-25GBX-D-10
• UP to 25.78Gb/s bi-directional data links
• Simplex LC connector
• Up to 10km on 9/125m SMF
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
• 1271nm DFB laser transmitter for -2733
• 1331nm DFB laser transmitter for -3327
• Single 3.3V Power Supply
• Operating temperature: Commercial: 0~ 70°C
• RoHS compliant


Application Of 25GBASE-BX Cisco SFP-25GBX-D-10 Single Mode Optical Transceiver

• 25GE LR
• eCPRI & CPR

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field.Our advantage.

• Competitive prices.
• High-quality products and services.
• wide compatibility such as Cisco, Juniper, HP, Huawei, Alcatel, H3C and more.
• Big capability of manufacture for 40K~100K pcs per month.
• Independent R&D ability.
• Keep stock, Fast delivery

Q: What is the operating temperature range of 25GBASE-BX Cisco SFP-25GBX-D-10 Single Mode Optical Transceiver?

• Commercial temperature range (COM): 0 to 70°C(32 to 158°F)
• Extended temperature range (EXT): -20 to 85°C(23 to 185°F)
• Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)
• Storage temperature range: -40 to +85°C(-40 to 185°F)

Q: What is the standard warranty time for your 25GBASE-BX Cisco SFP-25GBX-D-10 Single Mode Optical Transceiver?

• All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,
• This limited warranty is applicable solely to the original purchaser and is not transferable.
• This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products in accordance with their written specifications.
• Three-Year (3-yr) Warranty Examination, repair and replacement parts are provided free.
