SFP-25GBX-U-10 Cisco Compatible Transceivers TX1270nm / RX1330nm 10km SMF LC

Description
Features: SFP28 25G Bidirectional Product Name: Cisco Optical Transceiver
Wavelength: TX1270nm/RX1330nm Reach: 10km
Application: 25GBASE Ethernet/eCPRI & CPR Keywords: SFP-25GBX-U-10
Highlight:

SFP-25GBX-U-10 Cisco Compatible Transceivers

,

TX1270nm Cisco Compatible Transceivers

,

10km SMF LC Cisco Optical Transceiver

Cisco SFP-25GBX-U-10 Compatible Transceiver TX1270nm/RX1330nm 10km SMF LC


Description Of Cisco SFP-25GBX-U-10 Compatible Transceiver

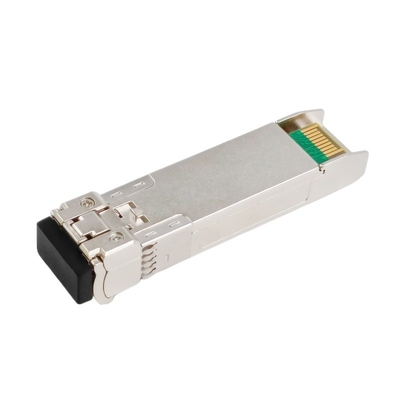

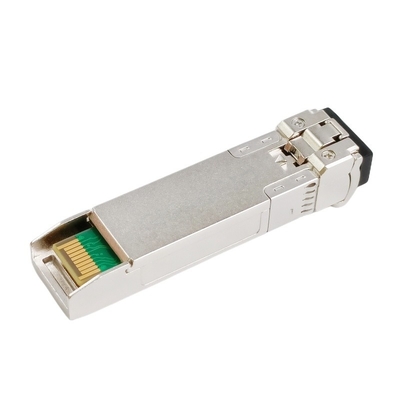

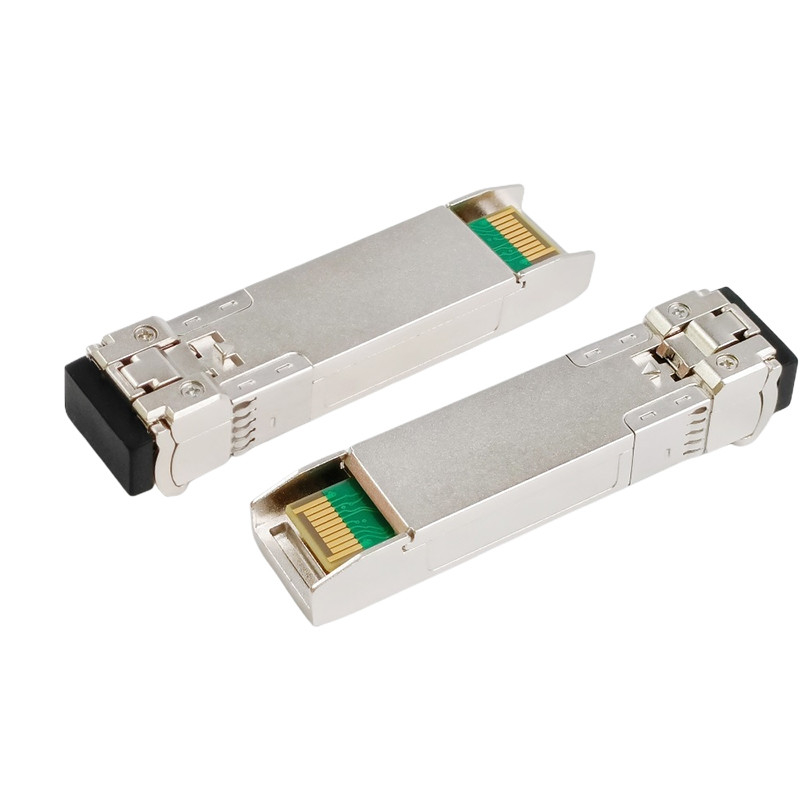

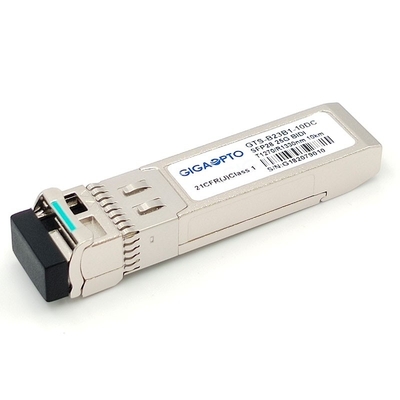

This Cisco SFP-25GBX-U-10 compatible transceiver provides 25GBase throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1270nm-TX/1330nm-RX via an LC simplex connector.
It is fully compliant with the SFP28 MSA, CPRI and eCPRI standards.SFF-8472 digital diagnostics functions are available via an I2C interface.
This Cisco SFP-25GBX-U-10 compatible optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco original transceivers.

Specification Of Cisco SFP-25GBX-U-10 Compatible Transceiver



Compatible Brand Cisco Compatible P/N SFP-25GBX-U-10
Form Factor SFP28 Bandwidth 25.78Gbps
Wavelength TX_1270nm/RX_1330nm Distance 10km
Optical Connector LC Simplex Media Type single-mode fiber
Transmitter Type DFB BiDi Receiver Type PIN photo-detector
TX Average Power -2~4dBm Receiver Sensitivity <-13dBm
Power Budget (dB) 11dB Saturation >2dBm
Power Consumption ≤1W Extinction Ratio >3.5dB
DDM/DOM Supported FEC Function Not Supported
CDR TX and RX build-in Operating Temperature 0 to 70°C (32 to 158°F)
Protocols 25GBASE-BX Ethernet, CPRI 10
Compliance IEC/EN 61000-4-2,IEC-60825,FDA 21CFR 1040.10 and 1040.11,RoHS


Features Of Cisco SFP-25GBX-U-10 Compatible Transceiver



  • Hot-pluggable SFP28 Cisco compatible optical transceiver
  • Functionally equivalent to SFP-25GBX-U-10
  • Supports up to 25.78Gbps bit rates
  • 1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real-Time Digital Diagnostic Monitoring
  • Operating case temperature:Standard: 0 to +70°C



Application Of Cisco SFP-25GBX-U-10 Compatible Transceiver



  • 25GE LR
  • eCPRI & CPR
