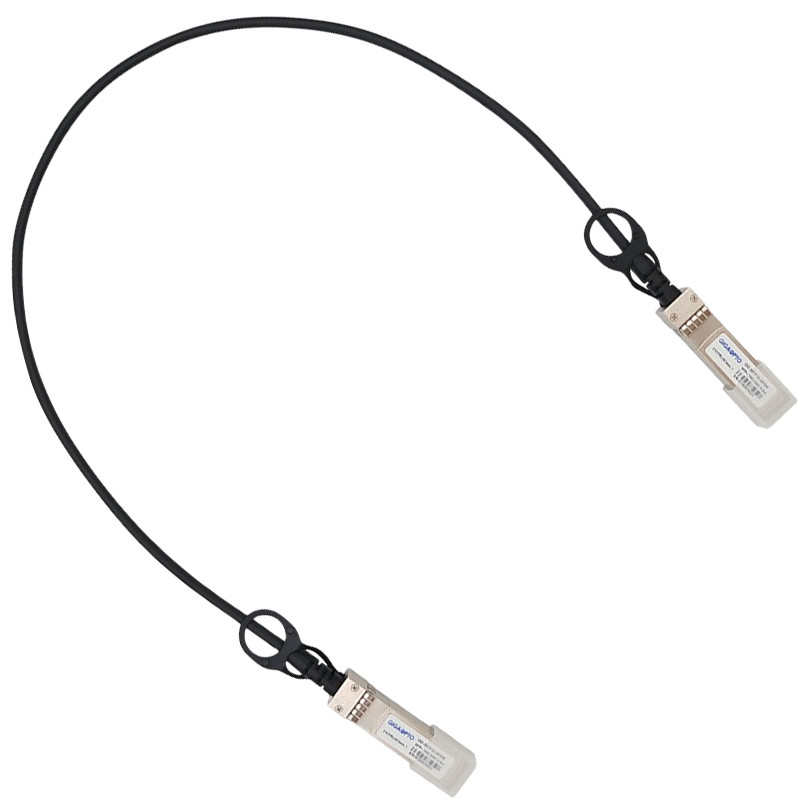

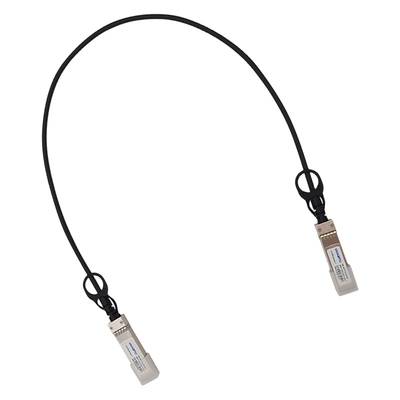

Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC

Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC
Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC

Large Image :  Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: SFP-H10GB-CU
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC

Description
Features: Passive Copper Twinax Cable Product Name: Cisco Compatible DAC
Wire Gauge: 30AWG Application: 10GBASE Ethernet
Keywords: SFP-H10GB-CU, Cisco DAC Cable Power Consumption: ≤0.1W
High Light:

Cisco SFP-H10GB-CU Copper Twinax Cable

,

30AWG Copper Twinax Cable

,

ISO9001 Direct Attach Cable

Cisco SFP-H10GB-CU Compatible Copper Twinax Cable 10G SFP+ to SFP+ DAC Cables





Description Of Cisco SFP-H10GB-CU Compatible DAC Cables



This Cisco SFP-H10GB-CU Compatible Copper Twinax Cable provides a high-speed, cost-effective alternative to establishing a 10-Gigabit short-reach link between SFP+ 10G ports of switches within racks and across adjacent racks.

This Cisco SFP-H10GB-CU Compatible direct attach copper cable is compliant with IEEE 802.3, SFF-8431, SFP+ MSA. Hot-swappable to maximize uptime and simplify serviceability, digital optical monitoring (DOM) diagnostics functions are available.

It has been programmed, uniquely serialized, data-traffic and application tested to ensure it is functionally identical to Cisco original products and 100% compatible with Cisco 10 Gigabit SFP+ ports network equipment.



Functional Specification Of Cisco SFP-H10GB-CU Compatible DAC Cables



Compatible Brand Cisco Compatible PN SFP-H10GB-CU
Product Name direct attach copper cable Max Data Rate 10.5Gbps
Passive or Active Passive Cable Length 0.5-Meter to 7-Meter
Connector Type SFP+/SFP+ Cable Impedance 100±5Ω
Wire Gauge AWG 30AWG/:4.2mm-Length 0.5M/1M/2M/3M; 24AWG/6.0mm-Length 4M/5M/6M/7M
Minimum Bend Radius 23mm - Length 0.5M/1M/2M/3M/4M; 30mm - Length 5M/7M; 23mm-Length 6M
Cable Type Twinax Copper Power Supply 3.3V
Jacket Material PVC (OFNR) Operating Temperature 0 to 70°C (32 to 158°F)
Power Consumption ≤0.1W OEM/ODM Supported



Ordering Information Of Cisco SFP-H10GB-CU Compatible DAC Cables



Part Number Description Wire Gauge Minimum Bend Radius
SFP-H10GB-CU50CM 10G SFP+ to SFP+ Cable 0.5-meter, Passive 30AWG 23mm
SFP-H10GB-CU1M 10G SFP+ to SFP+ Cable 1-meter, Passive 30AWG 23mm
SFP-H10GB-CU1-5M 10G SFP+ to SFP+ Cable 1.5-meter, Passive 30AWG 23mm
SFP-H10GB-CU2M 10G SFP+ to SFP+ Cable 2-meter, Passive 30AWG 23mm
SFP-H10GB-CU3M 10G SFP+ to SFP+ Cable 3-meter, Passive 30AWG 23mm
SFP-H10GB-CU4M 10G SFP+ to SFP+ Cable 4-meter, Passive 24AWG 30mm
SFP-H10GB-CU5M 10G SFP+ to SFP+ Cable 5-meter, Passive 24AWG 23mm
SFP-H10GB-CU6M 10G SFP+ to SFP+ Cable 6-meter, Passive 24AWG 23mm
SFP-H10GB-CU7M 10G SFP+ to SFP+ Cable 6-meter, Passive 24AWG 30mm
Note 1. Customized 10G SFP+ cables are available in various lengths. 2. The Wire Gauge is available in AWG24, AWG26, AWG28, and AWG30 for customized need.



Features Of Cisco SFP-H10GB-CU Compatible DAC Cables



  • Hot-pluggable 10 Gigabit Passive Copper Twinax Cable
  • Functionally identical to the Cisco SFP-H10GB-CU series
  • Compatible to SFP+ MSA
  • Compatible to SFF-8431,SFF-8432
  • Up to 10.5Gbps data rate per channel
  • SFP 20 PIN footprint
  • Up to 7m transmission
  • I/O Connector designed for high-speed differential signal applications
  • Improved Pluggable Form Factor (IPF)
  • compliant for enhanced EMI/EMC performance
  • Temperature Range: 0~ 70 ℃
  • RoHS Compatible
  • Low power consumption <0.1 W



Applications of 10G SFP+ Passive Copper Twinax Cable (DACs)



  • Storage Area Networks (SAN), Network Attached Storage and Storage Servers
  • 1G/2G/4G/8G Fiber Channel
  • Switched fabric I/O
  • Data center cabling infrastructure



FAQ



Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.



Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.



Q: What about the warranty of Cisco SFP-H10GB-CU compatible DAC cables?

3-year warranty for new products, and lifetime technical support.



Q: Does GigaOpto do OEM&ODM of Cisco SFP-H10GB-CU compatible DAC cables?
Yes. We accept OEM & ODM



Q: How can I get a sample to check the quality of Cisco SFP-H10GB-CU compatible DAC cables?

A free sample is available.
