Product Details:
|
| Product Name: | Cisco Attach Optical Cable | Type: | QSFP To QSFP |
|---|---|---|---|
| Data Rate: | 40Gbps | Application: | Data Center/HPC |
| Keywords: | QSFP-H40G-AOC | Wavelength: | 850nm |
| Highlight: | ISO14000 Optical Cable Assembly,QSFP To QSFP Optical Cable Assembly,Cisco QSFP-H40G-AOC Active Optical Cable |
||

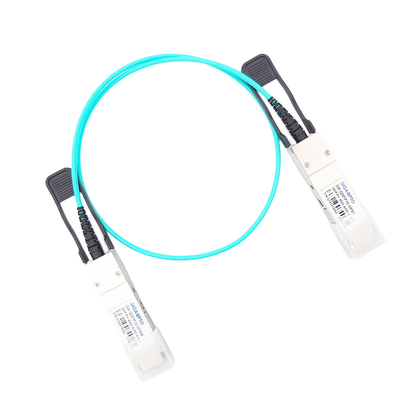

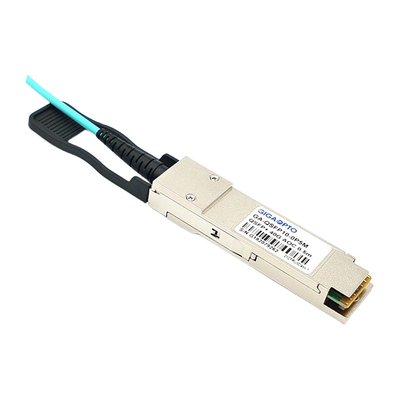

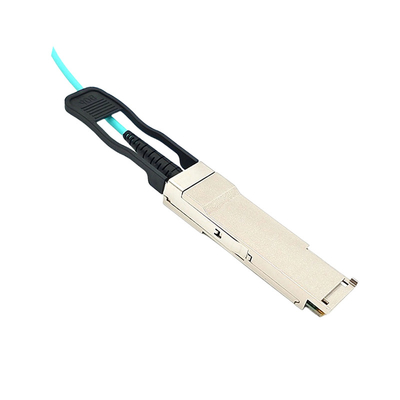

40Gbps QSFP To QSFP Attach Optical Cable Assembly For Cisco QSFP-H40G-AOC
Description Of Cisco QSFP-H40G-AOC Attach Optical Cable Assembly
These Cisco QSFP-H40G-AOC compatible active optic cables (AOCs) are direct-attach fiber assemblies with QSFP+ connectors, compliant with the QSFP MSA, 40G Ethernet IEEE 802.3ba 40GBASE-SR4 standards. They are suitable for short distances and offer a cost-effective solution to connect within racks and adjacent racks. The 40G QSFP AOC is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 10.3Gb/s, providing an aggregated rate of 41.25Gb/s.
Functional Specification Of Cisco QSFP-H40G-AOC Attach Optical Cable Assembly
| Compatible Brand | Cisco | Compatible P/N | QSFP-H40G-AOC |
| Product Name | Attach Optical Cable | Data Rate | 41.2Gbps (4×10.3Gbps) |
| Connectors | QSFP to QSFP | Number of Lanes | 4 Tx & 4 Rx |
| Cable Type | OM3 50/125pu | Minimum Bend Radius | 7.5mm |
| Transmitter Type | VSCEL | Jacket Material | OFNP |
| Bit Error Ratio (BER) | E-12 | Receiver Type | PIN |
| Wavelength | 850nm | Extinction Ratio | 3.0dB |
| Power Consumption | <1.5W per end | Interface | 38-pin edge connector |
| Temperature | 0 to 70°C (32 to 158°F) | Power supply | 3.3V |
| OEM/ODM | Supported | CDR | No retimer or CDR |
| Protocols | 10G/40Gigabit Ethernet or 40G InfiniBand 8x DDR, 4x QDR, Fibre Channel | ||
Features Of Cisco QSFP-H40G-AOC Attach Optical Cable Assembly
Application Of Cisco QSFP-H40G-AOC Attach Optical Cable Assembly
FAQ
Q: Are you trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of the Cisco QSFP-H40G-AOC attach optical cable assembly?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty of the Cisco QSFP-H40G-AOC attach optical cable assembly?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order of Cisco QSFP-H40G-AOC attach optical cable assembly? What is your MOQ of Cisco QSFP-H40G-AOC attach optical cable assembly?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
