25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible

Certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
I'm Online Chat Now

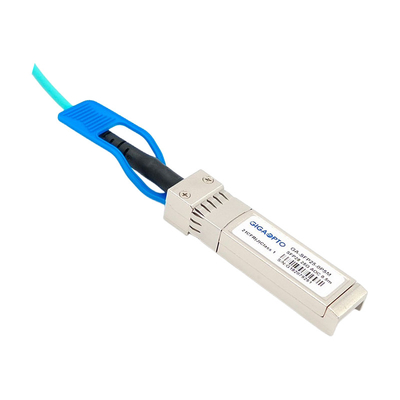

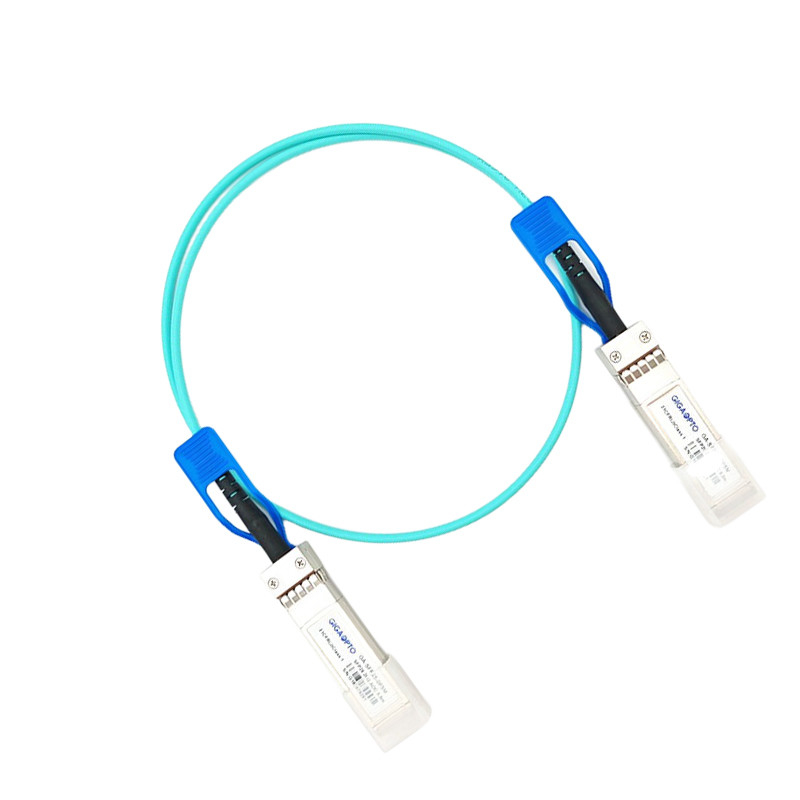

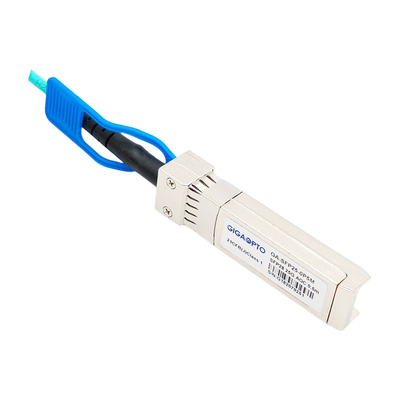

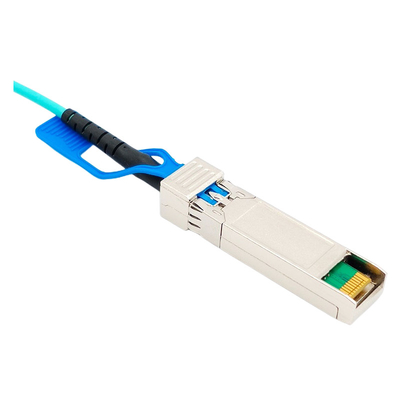

25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible

25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible
25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible 25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible 25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible 25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible

Large Image :  25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Generic
Certification: CE,FCC,RoHs, TUV,UL
Model Number: SFP28-25G-AOC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

25Gbps Active Optical Cables Cisco SFP28-25G-AOC Compatible

Description
Features: SFP28 To SFP28 Product Name: Cisco Compatible Active Optical Cables
Cable: 0.5m To 100m Application: Data Center, HPC,SAN
Keywords: SFP28-25G-AOC Wavelength: 850nm
High Light:

25Gbps Active Optical Cables

,

Cisco SFP28-25G-AOC Active Optical Cables

,

OM4 Active Optical Cable

Cisco SFP28-25G-AOC Compatible 25Gbps Active Optical Cables





Description Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



This Cisco SFP28-25G-AOC Compatible Active Optical Cable is designed for use in 25G Ethernet links, featured low-power, high density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission. It is widely used in Data Centers, HPC and SAN.

The 25G SFP28 AOC cables are composed of SFP28 optical transceivers in both ends and OM3 or OM4 multimode fiber cables in different cable lengths from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings a friendly and intuitive electrical-to-electrical interface to users. They are compliant with the SFP28 MSA and IEEE 802.3by. The optical transceiver is RoHS compliant.



Functional Specification Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



Compatible Brand Cisco Compatible P/N SFP-25G-AOC
Item Name 25G SFP28+ AOC Transmission Rate 25.78Gbps
Connector A SFP28 Connector B SFP28
Wavelength 850nm Cable Type OM3/OM4
Cable Length 0.5m to 100m DDM/DOM Support
Environment Operating: 0°C to 70°C Jacket Material OFNP
Storage: -40°C to 85°C Minimum Bend Radius 7.5mm
Power Dissipation <0.8W per end Power Supply (typical) 3.3V
CDR TX and RX Data Integrity 1E-12 BER
Protocols 25GBASE Ethernet Compliance IEEE 802.3by,SFF-8431, SFF-8432 ,SFF-8472, RoHS
Multi-Vendor Support SFP28 MSA OEM/ODM Support
Application 25 Gigabit Ethernet
Data Center Networking
Networked storage systems
High-Performance Computing Interconnects



Features Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



  • Hot pluggable SFP28 to SFP28 Cisco Active Optical Cables
  • Functionally equivalent to Cisco SFP-25G-AOC
  • Supports 25.7813 Gb/s bit rate
  • Maximum link length of 70m with OM3 MMF and 100m with OM4 MMF
  • SFI limiting interface
  • Input equalization and output emphasis controls
  • Single 3.3V power supply
  • Power consumption of less than 0.8W per end
  • Enhanced EMI Performance
  • Lightweight cable and small bending radius
  • Digital diagnostics functions are available via the I2C interface
  • Rigid pull-tab
  • Temperature range: standard 0°C to 70°C



Application Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



  • 25GBASE-SR Ethernet
  • InfiniBand QDR,SDR,DDR



Standards Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



  • IEEE 802.3by 25GBASE-SR
  • SFF-8431 SFF-8432 SFF-8472
  • ROHS



Ordering Information Of Cisco SFP28-25G-AOC Compatible Active Optical Cables



Part Number Description
SFP28-25G-AOC1M 25GBASE SFP28 AOC 850nm Active Optical Cable 1M
SFP28-25G-AOC2M 25GBASE SFP28 AOC 850nm Active Optical Cable 2M
SFP28-25G-AOC3M 25GBASE SFP28 AOC 850nm Active Optical Cable 3M
SFP28-25G-AOC5M 25GBASE SFP28 AOC 850nm Active Optical Cable 5M
SFP28-25G-AOC7M 25GBASE SFP28 AOC 850nm Active Optical Cable 7M
SFP28-25G-AOC10M 25GBASE SFP28 AOC 850nm Active Optical Cable 10M
SFP28-25G-AOC15M 25GBASE SFP28 AOC 850nm Active Optical Cable 15M
SFP28-25G-AOC20M 25GBASE SFP28 AOC 850nm Active Optical Cable 20M
SFP28-25G-AOC25M 25GBASE SFP28 AOC 850nm Active Optical Cable 25M
SFP28-25G-AOC30M 25GBASE SFP28 AOC 850nm Active Optical Cable 30M
Note Cable length could be customized to any length as required.





FAQ



Q: Are you a factory or trading company?

Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.



Q: Can I have a sample order of Cisco SFP28-25G-AOC compatible active optical cables? What is your MOQ of Cisco SFP28-25G-AOC compatible active optical cables?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.



Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.



Q: How can you guarantee the quality of Cisco SFP28-25G-AOC compatible active optical cables?

GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.



Q: What is the operating temperature range of Cisco SFP28-25G-AOC compatible active optical cables?

Commercial temperature range(Com.) : 0 to 70℃

Extended temperature range(Ext.):-20 to 85℃

Industrial temperature range(Ind.):-40 to 85℃



Q: Can you accept OEM/ODM order of Cisco SFP28-25G-AOC compatible active optical cables?

Yes, please send an inquiry to us so that we can have a detailed discussion.



Q: What is the lead time of Cisco SFP28-25G-AOC compatible active optical cables?
For usual products, We keep stock, could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.



Q: What is your after-sales service of Cisco SFP28-25G-AOC compatible active optical cables?

All our customers can get three years quality warranty and lifetime technical support.
