Product Details:
|
| Features: | QSFP28 LAN WDM 100G LR4 | Item Name: | Cisco Compatible Transceiver |
|---|---|---|---|
| Max Distance: | 10km | Connector: | Duplex LC |
| Application: | 100GBASE Ethernet | Keywords: | 100GBASE-LR4,QSFP-100G-LR4-S |
| Highlight: | 100GBASE-LR4 QSFP28 Fiber Transceiver Module,10km SMF Fiber Transceiver Module,LC DOM Cisco QSFP-100G-LR4-S |
||

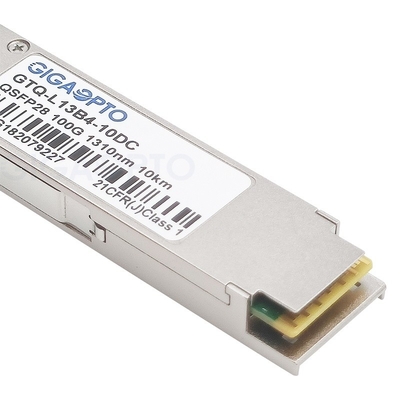

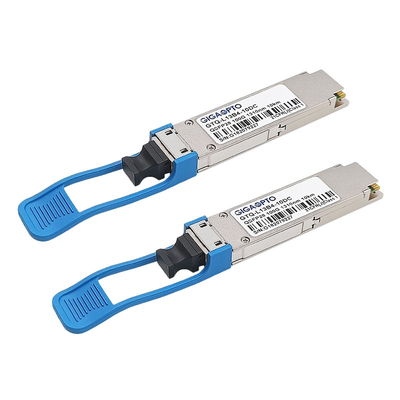

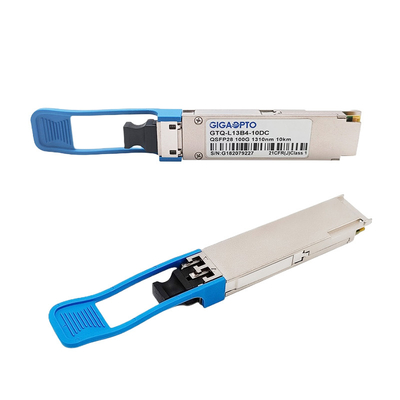

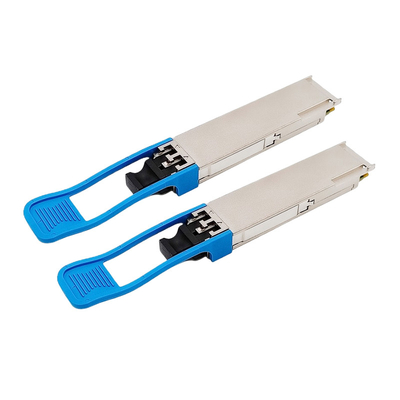

Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module 10km SMF LC for Ethernet and Date Center
Description Of Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module
The 100GBASE-LR4 transceiver is designed for use in 100 Gigabit Ethernet links on up to 10km over G.652 single mode fiber(SMF) via an industry standard LC connector.
The 100GBASE-LR4 transceiver consists of two sections: The transmitter section consists of four directly modulated Cooled LAN WDM 4-DFB lasers and four drivers.
It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
Each 100GBASE-LR4 optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-LR4-S transceivers, with excellent interoperation with Cisco QSFP28 port devices.
Specification Of Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module
| Compatible Brand | Cisco | Compatible P/N | QSFP-100G-LR4-S |
| Product Name | 100GBASE-LR4 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Form Type | QSFP28 | Reach | 10km |
| Wavelength | 1295.6nm -1309.1nm LAN WDM | Fiber Type | Single-mode fiber |
| Connector | Duplex LC receptacle | Modulation | NRZ |
| Transmitter Part | 4 x LAN WDM DFB | Receiver Part | 4 x PIN |
| TX Output Power (dBm) | -4.3~4.5dBm | RX Sensitivity | <-10.6dBm |
| Extinction Ratio | >4dB | Saturation | >4.5dBm |
| Power Dissipation | ≤3.5W | Optical budget | 6.3dB |
| DDM/DOM | With | Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | OEM/ODM | Supported |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 | ||
Feature Of Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module
Application Of Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module
Standard Of Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order Of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module? What is your MOQ Of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality Of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.):-40 to 85℃
Q: Can you accept the OEM/ODM order Of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time Of the Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service For Cisco QSFP-100G-LR4-S Compatible Fiber Transceiver Module?
All our customers can get three years quality warranty and lifetime technical support.
