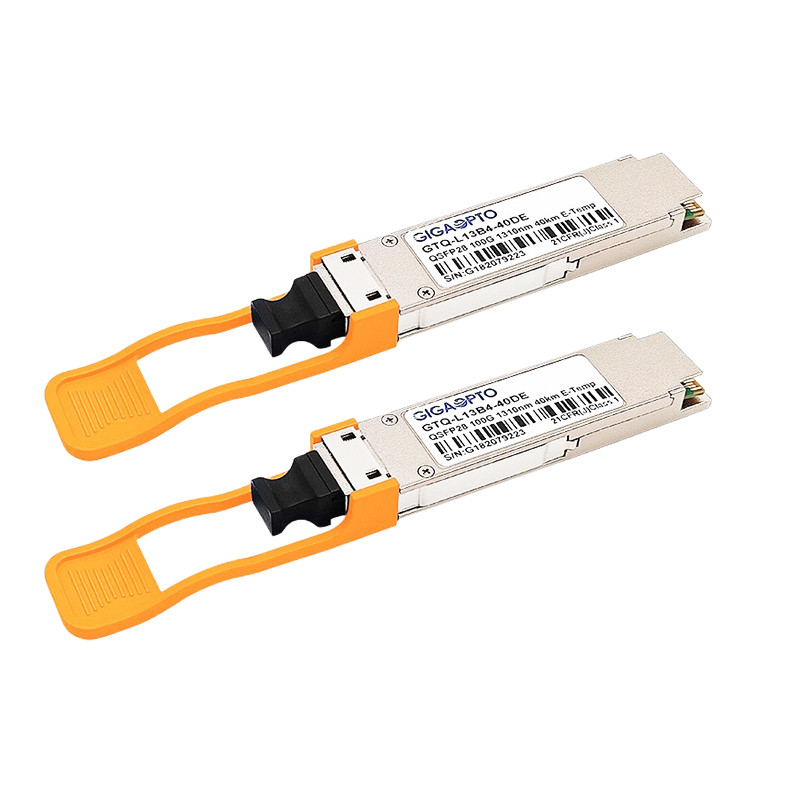

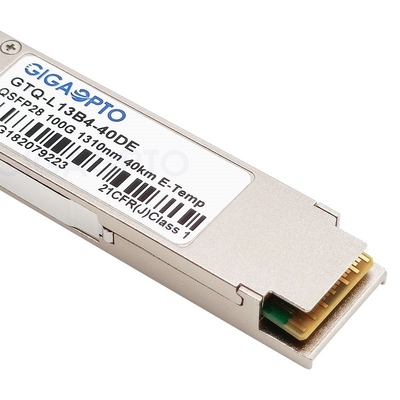

1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X

1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X
1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X 1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X

Large Image :  1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Generic
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: QSFP-100G-ER4L-X
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 1,000pcs/month

1310nm LWDM Fiber Transceiver Module For Cisco QSFP-100G-ER4L-X

Description
Features: 100GBASE-ER4 LWDM Item Name: Cisco Optical Transceiver
Temperature: Extended -20 To 85ºC Transmission: 40km
Keywords: QSFP-100G-ER4L-X, 100G ER4 Extended Wavelength: 1295 - 1310nm LWDM
Highlight:

1310nm LWDM Fiber Transceiver Module

,

Cisco QSFP-100G-ER4L-X Fiber Transceiver Module

,

100GBASE-ER4 CISCO Compatible Transceivers

Cisco QSFP-100G-ER4L-X Compatible 100GBASE-ER4 40km SMF Fiber Transceiver Extended Temperature Duplex LC DOM





Description Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers



Featuring high-quality cooled LAN WDM EML transmitters and high-sensitivity APD receivers, this Cisco QSFP-100G-ER4L-X compatible fiber transceiver is designed for outside plant applications with an extended temperature range (-20 to 85°C).

This 100G ER4 extended transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 Lite standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA.

Each 100G ER4 extended optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-ER4L-X transceivers, excellent interoperation with Cisco QSFP28 port devices.



Specification Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers



Compatible Brand Cisco Compatible P/N QSFP-100G-ER4L-X
Product Name 100GBASE ER4L Temperature Range -20 to 85ºC ( -4 to 185 °F)
Form Factor QSFP28 Bandwidth (Gbps) 103.125Gbps (4x 25.78Gbps)
Wavelength 1295 - 1310nm LWDM Max Reach 40km (with host FEC); 30km (without host FEC)
Interface Double LC Cable Type Single-mode fiber
Transmitter Type 4x EML Receiver Type APD
TX Average Power -2.5~6.5dBm Receiver Sensitivity <-20.5dBm
Power-budget (dB) 18dB Saturation >-3.5dBm
Power Consumption ≤4.5W Extinction Ratio >4.5dB
DDM/DOM Supported Modulation Format NRZ
Packaging BOX Packaging Host FEC KP4-FEC
Clock and Data Recovery TX & RX Built-in CDR OEM/ODM Support
Protocols SFF-8636, 4WDM MSA



Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.

Distance ≤ 10km ≤ 20km
Attenuator 10dB 5dB



Products Features Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers



  • Hot pluggable QSFP28 100GBASE-ER4 Optical Transceiver
  • Functionally equivalent to Cisco QSFP-100G-ER4L-X
  • Supports 103.1Gb/s aggregate bit rate
  • Compliant with Ethernet 100GBASE-ER4L
  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05,1304.58, 1309.14nm),Receiver: 4x25Gb/s APD ROSA
  • Link up to 30km over G.652 SMF without FEC or 40km over G.652 SMF with FEC
  • Internal CDR circuits on both receiver and transmitter channels
  • Duplex LC receptacle
  • Single 3.3Vpower supply
  • Maximum power dissipation:4.5W
  • Extended operating case temperature range:-20°C to 85°C
  • Built-in digital diagnostic functionality



Applications Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers



  • 100GBASE-ER4 Ethernet Links
  • Infiniband QDR and DDR Interconnects
  • Client-side 100G Telecom connections



Compliance Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers



  • QSFP28 MSA SFF-8665
  • IEEE802.3ba 100GBASE-ER4
  • RoHS



FAQ



Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.



Q: What certification did you get for these Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.



Q: What about the warranty of this Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers?

3-year warranty for new products, and lifetime technical support.



Q: Does GigaOpto do OEM&ODM ?
Yes. We accept OEM & ODM



Q: How can I get a sample to check the quality of this Of Cisco QSFP-100G-ER4L-X Compatible 100G ER4 Extended Transceivers?

A free sample is available.
