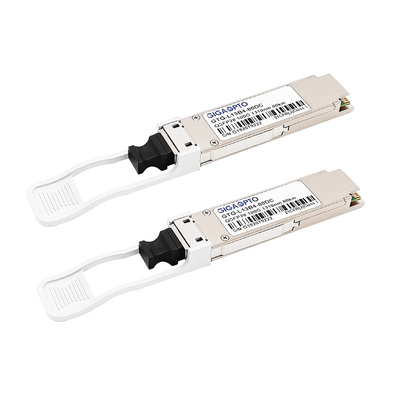

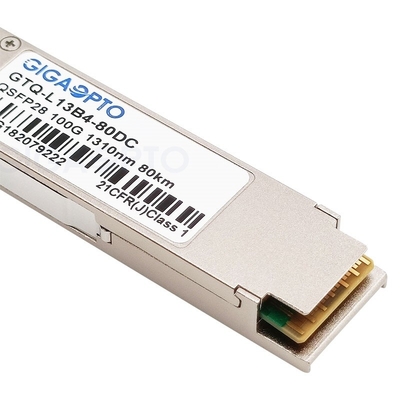

1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S

1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S
1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S 1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S

Large Image :  1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Generic
Certification: CE,FCC,RoHs, TUV,UL
Model Number: QSFP-100G-ZR4-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1,000pcs/month

1310nm LAN WDM QSFP28 100GBASE-ZR4 Optical Transceiver For Cisco QSFP-100G-ZR4-S

Description
Features: QSFP28 100GBASE-ZR4 Product Name: Cisco Optical Transceiver
Max Distance: 80 Km Optical Budget: 31dB
Application: 100G Ethernet,Telecom,Data Center Keywords: QSFP-100G-ZR4-S, 100GBASE-ZR4
Highlight:

QSFP28 100GBASE-ZR4 CISCO Compatible Transceivers

,

31dB Cisco QSFP-100G-ZR4-S

,

80km Cisco QSFP-100G-ZR4-S

Cisco QSFP-100G-ZR4-S Compatible 80 km, λ1296-1309nm LAN WDM, LC-Duplex, Single Mode For 100GBASE-ZR4 Links





Description Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers



The 100GBASE-ZR4 transceiver support 100Gbps speed and 80km link distance over single-mode fiber. It is suitable for fiber connectivity in data centers, high-performance computing networks, enterprise cores, distribution layers, and service provider applications.

This 100Gbase ZR4 transceiver consists of two sections: the high-performance EML cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm) laser transmitters and high sensitivity 4x25Gb/s SOA+PIN receivers. All transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard.

Each 100GBASE-ZR4 optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-ZR4-S transceivers, with excellent interoperation on Cisco QSFP28 port optical transport devices, such as Cisco Chelsio 100G switches/routers/firewalls/NICs.



Specification Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers



Compatible Brand Cisco Compatible P/N QSFP-100G-ZR4-S
Product Name 100GBASE ZR4 Data Rate (Gbps) 103.125Gbps (4x 25.78Gbps)
Center Wavelength 1295.6nm, 1300.1nm, 1304.6nm, 1309.1nm Max Link Distance 80km
Connector Duplex-LC Media single-mode fiber
Transmitter Part 4 x LAN WDM EML Receiver Part SOA+PIN
TX Average Power 2~6.5dBm RX Sensitivity <-28 dBm
Power-budget (dB) 30dB Saturation > 2 dBm
Power Consumption ≤6.5W Extinction Ratio >6dB
DDM/DOM Supported Temperature Range 0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery) TX & RX Built-in CDR Modulation Format NRZ
Protocols IEEE 802.3ba 100GBASE-ZR4, CE, QSFP28 MSA, RoHS, SFF-8636, SFF-8665
Important Reminder Full 80km reach requires the use of FEC on the host platform. Without FEC, the reach is 40km



Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.

Distance ≤ 10km ≤ 25km ≤ 35km
Attenuator 15dB 10dB 5dB



Features Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers



  • Hot pluggable QSFP28 100GBASE-ZR4 Optical Transceiver
  • Functionally equivalent to Cisco QSFP-100G-ZR4-S
  • Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4
  • LAN WDM EML laser and PIN receiver with SOA
  • Up to 80km reach for G.652 SMF
  • Transmission wavelength: 1294 nm - 1311 nm
  • Compliant with 100GBASE-ZR4
  • QSFP28 MSA compliant
  • Duplex LC optical receptacle
  • Single +3.3V power supply
  • Maximum power consumption 6.5W
  • Case operating temperature:Commercial: 0 ~ +70℃
  • RoHS-compliant and lead-free



Applications Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers



  • 100GBASE-ZR4 Ethernet Links
  • Infiniband QDR and DDR interconnect
  • Telecom networking



FAQ



Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

  • Competitive prices.
  • High-quality products and services.
  • Fully compatible (Cisco/Juniper/HP/Huawei/Alcatel-Lucent Nokia/H3C...)
  • The big capability of manufacture for 40K~100K pcs per month.
  • Independent R&D ability.
  • Keep stock, Fast delivery



Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.



Q: Can I have a sample order Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers? What is your MOQ Of Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.



Q: What are your payment terms for Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers?
Usually, we need prepayment by T/T, West Union, or Paypal.

Could also support L/C, Credit terms.



Q: Could I return the Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.



Q: Could I use our own logo and label on this Cisco QSFP-100G-ZR4-S Compatible 100GBASE ZR4 Transceivers?

Yes, we could provide an OEM service and make the products with your own label.
