QSFP28 CWDM4 Cisco Compatible Transceiver SMF 10km For QSFP-100G-4WDM-S

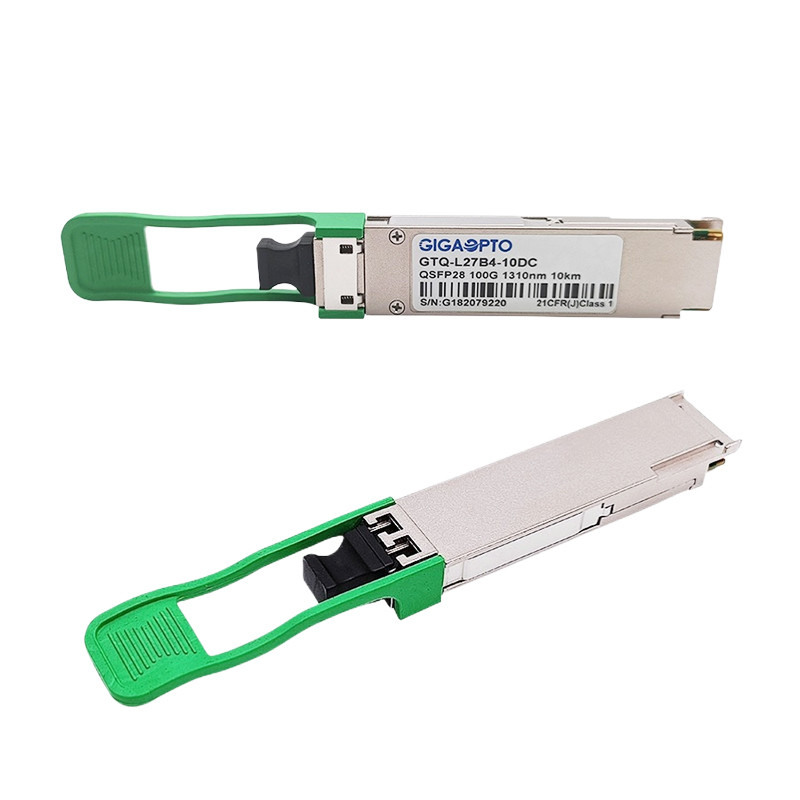

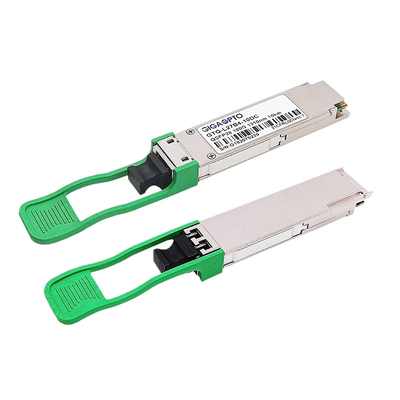

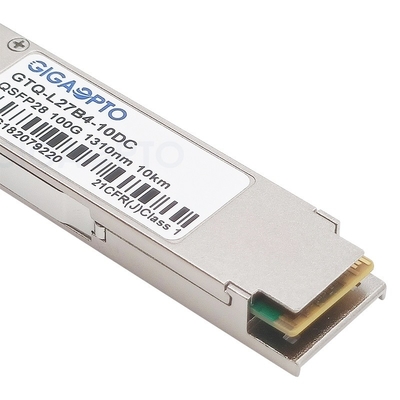

Cisco QSFP-100G-4WDM-S Compatible 100Gbps CWDM4 10km QSFP28 1310nm SMF Fiber Module Transceiver

Description Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

The Cisco QSFP-100G-4WDM-S Compatible optical transceiver Module is designed for use in 100GBASE Ethernet throughput to 10km over dual-strand single-mode fiber (SMF) via duplex LC connector.

The 100G CWDM4 module converts 4 input channels of 25.78Gb/s electrical data to 4 channels of CWDM4 optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of CWDM4 optical signals and then converts them to 4 output channels of electrical data.

This 100G CWDM4 transceiver is fully compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636 and ITU-T G.694.2 standards. With these features, it is suitable to be used in various applications, such as 100G Ethernet switches, routers, and client-side telecom interfaces.

This 100GBASE CWDM4 optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-4WDM-S transceivers, excellent interoperation with Cisco QSFP28 port optical transport devices.

Specification Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

Feature Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

• Hot pluggable QSFP28 100GBASE-CWDM4 Optical Transceiver
• Functionally equivalent to Cisco QSFP-100G-4WDM-S
• Four CWDM lanes MUX/DEMUX design
• 4-channel uncooled CWDM DFB TOSA and PIN ROSA
• Data rate up to 25.78125Gbps per channel, supports 103.1Gb/s aggregate bit rate
• Up to 10km transmission on G.652 single-mode fiber (SMF) with RS-FEC
• Duplex LC receptacle
• 3.5W maximum power dissipation
• Case operating case temperature range:0 to 70°C
• Single 3.3V power supply
• Built-in digital diagnostic functionality
• RoHS compliant (lead-free)

Applications Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

• Data Center Interconnect
• 100G 4WDM-10 10km reach
• 100G CWDM4 applications
• Infiniband EDR interconnects
• Enterprise networking

Standard Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

• QSFP MSA
• 100G CWDM4 MSA
• IEEE P802.3bm

FAQ Of Cisco QSFP-100G-4WDM-S Compatible 100G CWDM4 Transceiver

What is the advantage of the CWDM modules? Is there any difference from the usual one?

CWDM can provide larger transmission capacity, saving optical fiber resources(signals of different rates and formats can be mixed, as long as the rates at both ends of the combined wave front and the split wave rear are consistent)
