Product Details:
|
| Features: | 100G QSFP28 PSM4 1310nm | Product Name: | Cisco Compatible Transceiver |
|---|---|---|---|
| Connector: | MTP/MPO-12 | Reach: | 500m |
| Application: | 100GBASE Ethernet | Keywords: | 100GBASE PSM4 500m, QSFP-100G-PSM4-S |
| Highlight: | MPO-12 Connector QSFP28 Optical Transceiver,REACH QSFP28 Optical Transceiver,500m SMF Cisco QSFP-100G-PSM4-S |
||

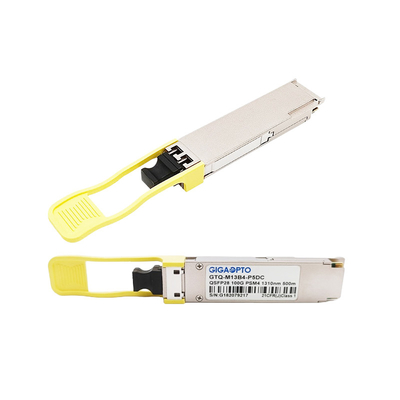

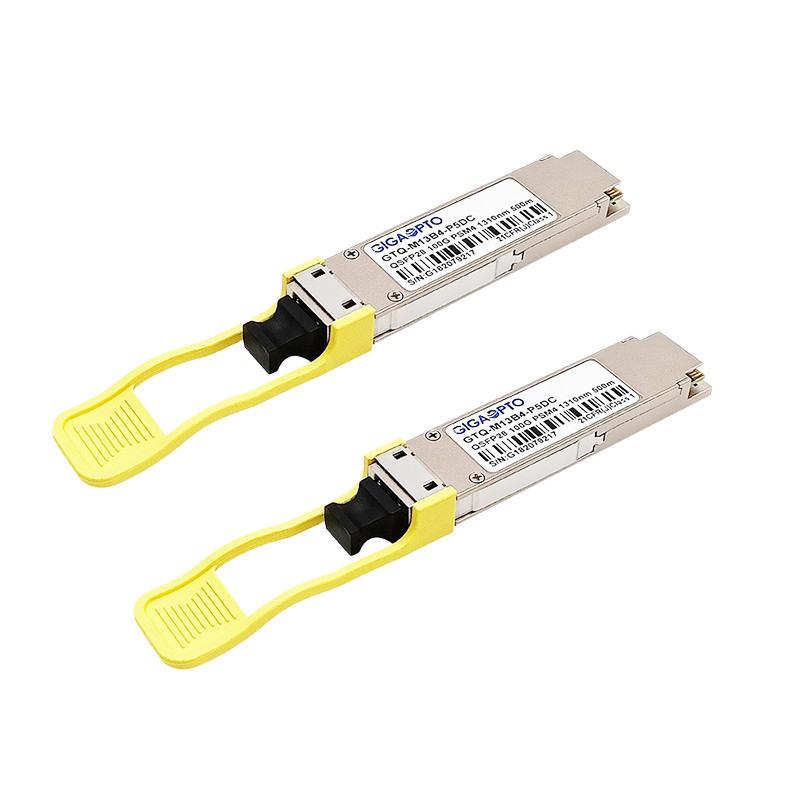

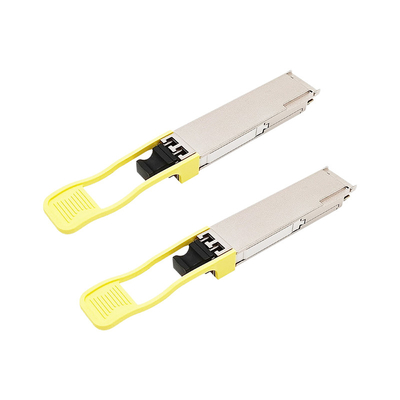

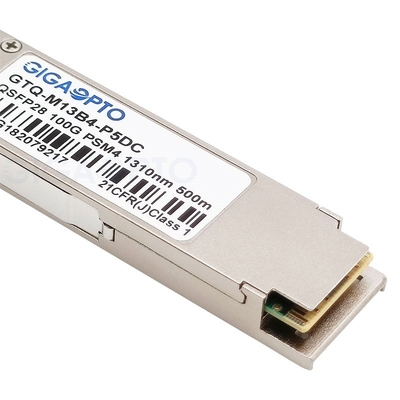

100Gbps Cisco QSFP-100G-PSM4-S Compatible PSM4 500m 1310nm SMF Optical Transceiver MTP/MPO DOM
Description Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver
This Cisco QSFP-100G-PSM4-S compatible optical fiber transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet.
It offers 4 independent transmit and receive channels, each capable of 25Gb/s operation in a nominal wavelength of 1310nm for an aggregate data rate of 100Gb/s, supports 500 meters optical link over parallel G.652 single-mode fiber.
This transceiver is fully compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostic functions are also available via an I2C interface (TWI/I2C), as specified by the QSFP28 MSA.
This 100GBASE PSM4-S optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-PSM4-S transceivers, excellent interoperation with Cisco QSFP28 port optical transport devices.
Specification Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver
| Compatible Brand | Cisco | Compatible P/N | QSFP-100G-PSM4-S |
| Package Type | QSFP28 | Max Bandwidth | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 4 × 1310nm | Cable Distance | 500m |
| Connector | MTP/MPO-12 | Media | Single-mode fiber |
| Transmitter Part | 4x DFB | Receiver Part | PIN |
| TX Power | -9.4~2dBm | Receiver Sensitivity | <-12.6dBm |
| Power Budget (dB) | 3.2dB | Saturation | >2dBm |
| Power Dissipation | ≤3.5W | Extinction Ratio | >3.5dB |
| Diagnostic | Supported | Operating Temp. | 0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | FEC Function | Supported |
| OEM/ODM | Supported | Protocols | 100G Ethernet, MSA Compliant |
Features Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver
Applications Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver
Standard Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver? What is your MOQ Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of the Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range Of a Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.):-40 to 85℃
Q: Can you accept an OEM/ODM order Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time Of Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service for Cisco QSFP-100G-PSM4-S Compatible Optical Fiber Transceiver?
All our customers can get three years quality warranty and lifetime technical support.
