Product Details:
|
| Features: | 100G QSFP28 SR4 | Product Name: | Cisco Optical Transceiver |
|---|---|---|---|
| Wavelength: | 850nm | Transmission: | 100meters On OM4 |
| Application: | Data Center, HPC | Keywords: | QSFP-100G-SR4-S , 100GBASE-SR4 |
| Highlight: | 850nm QSFP28 100GBASE-SR4,MMF 100m Cisco QSFP-100G-SR4-S,OM4 Cisco QSFP-100G-SR4-S |
||

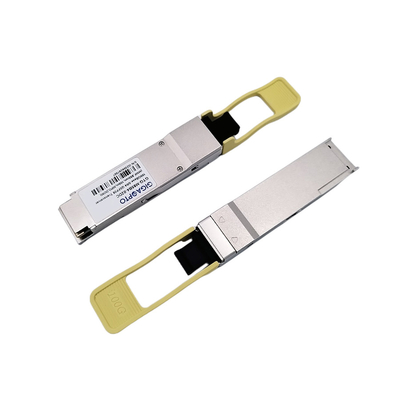

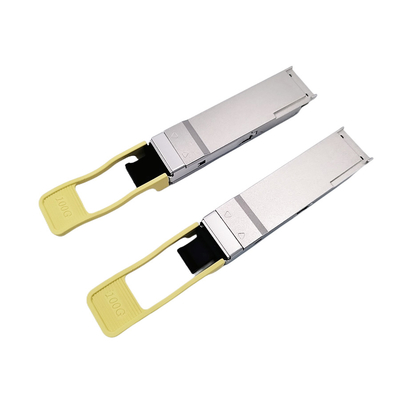

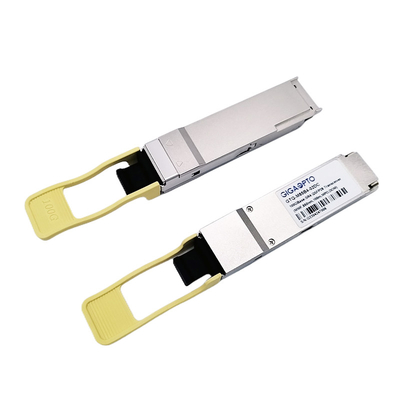

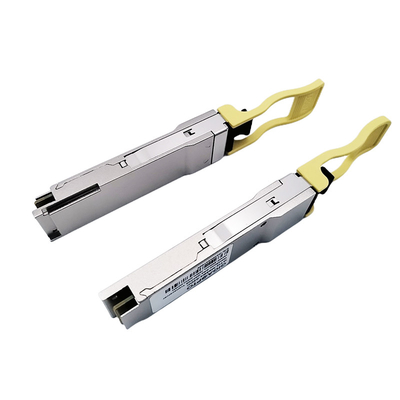

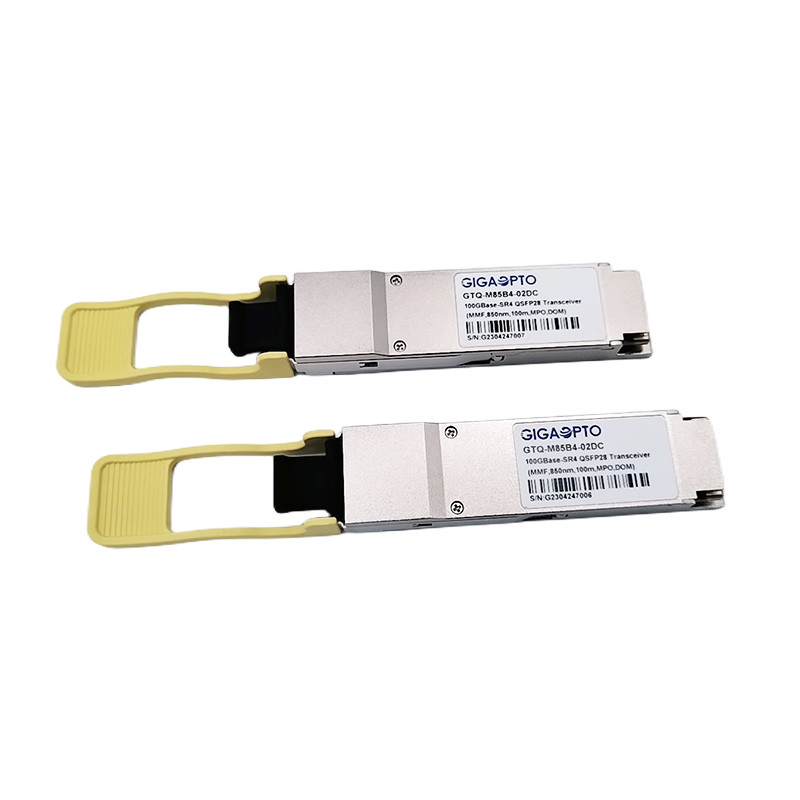

850nm Multi-mode Transceiver QSFP28 100GBASE-SR4 MPO 100m For Cisco QSFP-100G-SR4-S
Description Of 100GBASE-SR4 For Cisco QSFP-100G-SR4-S
The Cisco QSFP-100G-SR4-S compatible optical transceiver is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via an MTP/MPO-12 connector. It provides increased port density and total system cost savings.
The Cisco QSFP-100G-SR4-S compatible optical transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
This 100GBASE-SR4 optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-SR4-S transceivers, excellent interoperation with Cisco QSFP28 port optical transport devices
Specification Of 100GBASE-SR4 For Cisco QSFP-100G-SR4-S
| Compatible Brand | Cisco | Compatible P/N | QSFP-100G-SR4-S |
| Packaging | QSFP28 | Bit Rate (Gbps) | 103.125Gbps (4x 25.78Gbps) |
| Center Wavelength | 850nm | Max Transmission | 70M OM3 / 100M OM4 |
| Interface | MTP/MPO-12 | Cable Type | Multi-mode fiber |
| LD Type | VCSEL | PD Type | PIN photo-detector |
| TX Power | -8.4~2.4dBm | RX Sensitivity | <-10.3dBm |
| Extinction Ratio | ＞2 dB | Saturation | >2.4dBm |
| Power Budget (dB) | 1.9dB | Power Dissipation | ≤2 W |
| Diagnostic | Supported | Temperature Range | Standard:0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | FEC Function | Supported |
| OEM/ODM | Supported | Modulation Format | NRZ |
| Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI | ||
Features Of 100GBASE-SR4 For Cisco QSFP-100G-SR4-S
Applications Of 100GBASE-SR4 For Cisco QSFP-100G-SR4-S
Standard Of 100GBASE-SR4 For Cisco QSFP-100G-SR4-S
FAQ
Q: Are you trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of this 100GBASE-SR4 For Cisco QSFP-100G-SR4-S?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty of this 100GBASE-SR4 For Cisco QSFP-100G-SR4-S?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order? What is your MOQ of this 100GBASE-SR4 For Cisco QSFP-100G-SR4-S?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label and package on this 100GBASE-SR4 For Cisco QSFP-100G-SR4-S?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
Q: What are your payment terms for this 100GBASE-SR4 For Cisco QSFP-100G-SR4-S?
We accept T/T, Western Union, Paypal, L/C, etc. For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.
Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
