Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Wavelength: | 850nm SWDM4 |
|---|---|---|---|
| Distance: | 440m@OM5/350m@OM4/240m@OM3 | Connector: | Duplex LC |
| Application: | 40GBASE Ethernet | Keywords: | 40GBASE SWDM4, QSFP-40G-SWDM4 |
| Highlight: | 40GBASE SWDM4 Cisco Compatible Transceiver,940nm QSFP-40G-SWDM4,850nm QSFP-40G-SWDM4 |
||

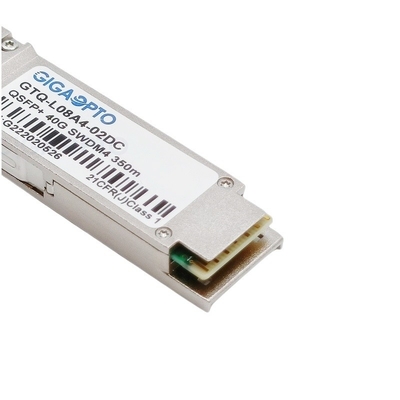

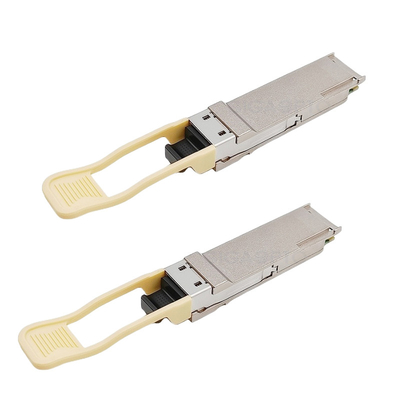

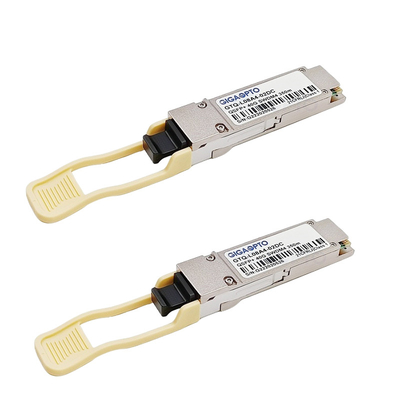

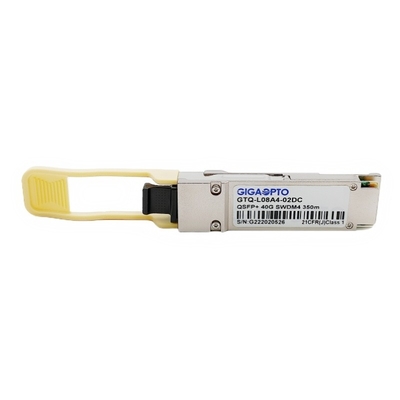

Cisco QSFP-40G-SWDM4 Compatible QSFP+ 850nm~940nm MMF Ethernet Transceiver For Data Center
Description Of Cisco QSFP-40G-SWDM4 Compatible Transceiver
This Cisco QSFP-40G-SWDM4 compatible Ethernet transceiver uses SWDM (Short Wavelength Division Multiplex) technology working with multi-mode fiber, providing 4 channels in the 850-940nm region at 10Gbps/lanes, which can transmit a multiplexed 40G signal over wide band OM5 at lengths up to 440m(240m on OM3/350m on OM4) with a duplex LC connector.
Using two fibers (duplex) instead of eight (SR4), this QSFP-40G-SWDM4 is a more cost-effective transceiver solution for upgrading from 10G to 40G without changing existing fibers.
Specification Of Cisco QSFP-40G-SWDM4 Compatible Transceiver
| Compatible Brand | CISCO | Compatible PN | QSFP-40G-SWDM4 |
| Package | QSFP+ | Bandwidth (Gbps) | 41.2Gbps (4×10.3Gbps) |
| Reach | 440m@OM5/350m@OM4/240m@OM3 | Cable Type | MMF |
| Wavelength (CH1-CH4) | 850nm, 880nm, 910nm, 940nm | Connector | Dual LC |
| Power Supply Voltage | +3.3V (typical) | Power Dissipation | ≤ 3.5W |
| Tx Part | VCSEL | RX Type | PIN photo-detector |
| TX Output Power | -7.5 ~ +3dBm | RX Sensitivity | < -9.1dBm |
| Extinction Ratio | > 2dB | Diagnostics | support |
| Environment | Operating: 0 to 70°C | Warranty Limited Time | 3 years |
| Storage: -40°C to 85°C | OEM/ODM | Support | |
| Protocols | 40G Ethernet, SFF-8436, SFF-8636, MSA Compliant | ||
Feature Of Cisco QSFP-40G-SWDM4 Compatible Transceiver
Applications Of Cisco QSFP-40G-SWDM4 Compatible Transceiver
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of the Cisco QSFP-40G-SWDM4 Compatible Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of the Cisco QSFP-40G-SWDM4 Compatible Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of the Cisco QSFP-40G-SWDM4 Compatible Transceiver?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.)::-40 to 85℃
Q: Can you accept an OEM/ODM order of a Cisco QSFP-40G-SWDM4 Compatible Transceiver?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time of the Cisco QSFP-40G-SWDM4 Compatible Transceiver?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service for the Cisco QSFP-40G-SWDM4 Compatible Transceiver?
All our customers can get three years quality warranty and lifetime technical support.
