Product Details:
|
| Features: | QSFP+ 40G PSM4 | Product Name: | Cisco Compatible Module |
|---|---|---|---|
| Reach: | 2km | Connector: | MTP/MPO |
| Application: | 40GBASE Ethernet | Keywords: | QSFP-40G-PLRL4, 40GBASE PSM4 |
| High Light: | 1310nm QSFP+ 40GBASE-PSM4,2km SMF 40GBASE-PSM4,MTP Connector QSFP-40G-PLRL4 |
||

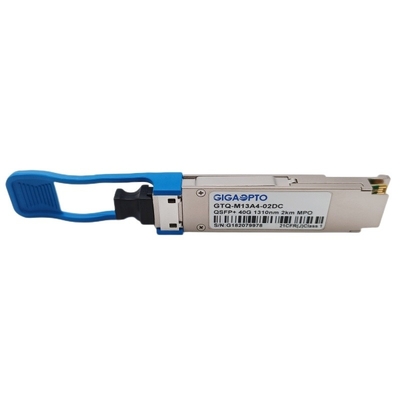

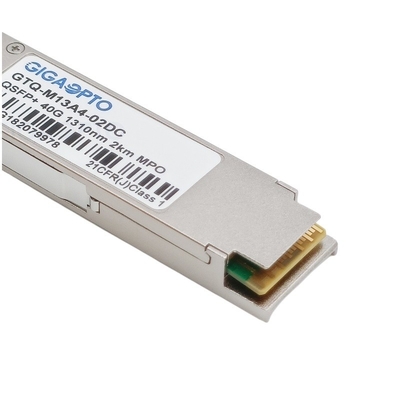

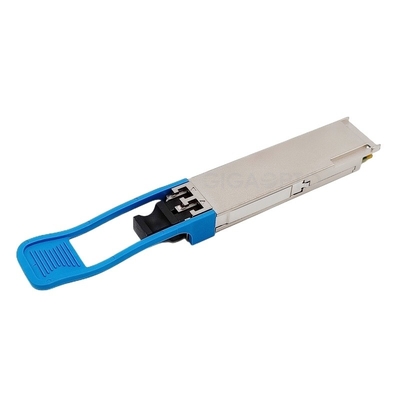

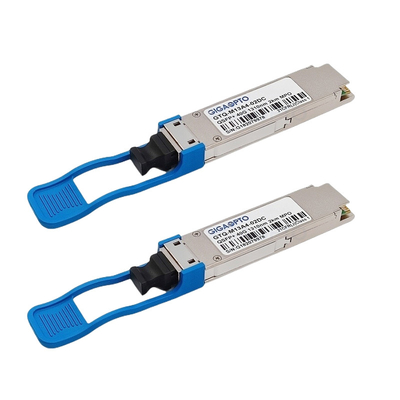

Cisco QSFP-40G-PLRL4 Compatible 40Gb/s QSFP+ Parallel Single Mode Module (PSM4 Lite) 2km 1310nm SMF MTP/MPO-12 Transceiver Module
Description Of Cisco QSFP-40G-PLRL4 Compatible Transceiver
This 40GBASE-PSM4 Lite optical transceiver module offers 4 independent transmit and receive channels, each capable of 11.1Gbps, providing an aggregated rate of 44Gb/s, providing 2km transmission over 4 pairs of parallel single mode fiber with MPO connectors for 40G Ethernet and high-performance computing networks applications.
This 40GBASE-PSM4 Lite optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-40G-PLRL4 transceivers, excellent interoperation with Cisco QSFP+ port optical transport devices such as Cisco Nexus 2000 Series, Nexus 3000 Series, Nexus 5000 Series, Nexus 5600 Series, Nexus 6000 Series, Nexus 7000 Series, Nexus 9000 Series, etc.
Specification Of Cisco QSFP-40G-PLRL4 Compatible Transceiver
| Compatible Brand | CISCO | Compatible PN | QSFP-40G-PLRL4 |
| Form Factor | QSFP+ | Bandwidth | 44.4Gbps (4×11.1Gbps) |
| Wavelength | 1310nm | Distance | 2km |
| Connector | MTP/MPO-12 | Cable Type | Single mode fiber |
| LD Type | 4x FP/DML | PD Type | PIN |
| TX output Power | -6 ~ -1dBm | RX Sensitivity | <-14.4dBm |
| Power Budget (dB) | 8.4dB | Saturation | > 1dBm |
| Power Consumption | <2.5W | Extinction Ratio | >3.5dB |
| Diagnostic | Supported | Operating Temperature | Com. |
Features Of Cisco QSFP-40G-PLRL4 Compatible Transceiver
Application Of Cisco QSFP-40G-PLRL4 Compatible Transceiver
Standard Of Cisco QSFP-40G-PLRL4 Compatible Transceiver
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS, and SGS tests, you can trust us.
Q: What about the warranty of the Cisco QSFP-40G-PLRL4 Compatible Transceiver?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM ?
Yes. We accept OEM & ODM
Q: How can I get a sample of the Cisco QSFP-40G-PLRL4 Compatible Transceiver to check your quality?
A free sample is available.
