Product Details:
|
| Product Name: | Cisco QSFP Transceiver | Data Rate: | 40Gb/s |
|---|---|---|---|
| Reach: | 40km | Application: | 40GBASE Ethernet |
| Keywords: | QSFP-40G-ER4, 40GBASE ER4 | TX Type: | DFB CWDM |
| Highlight: | 3.3V 40GBASE-ER4,MSA Compliant 40GBASE-ER4,DFB CWDM Cisco QSFP-40G-ER4 |
||

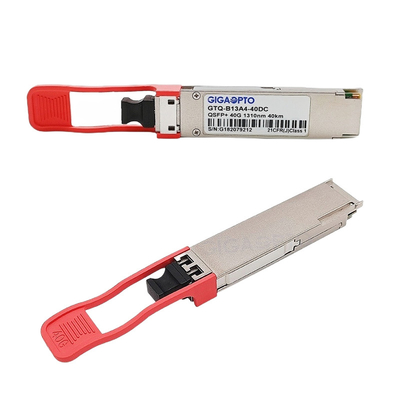

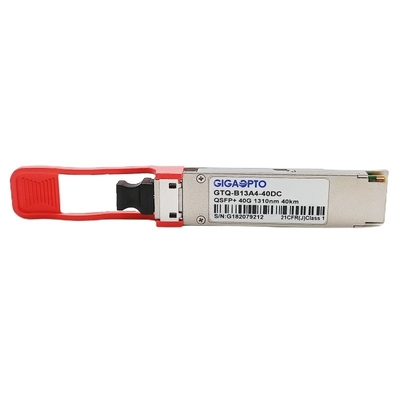

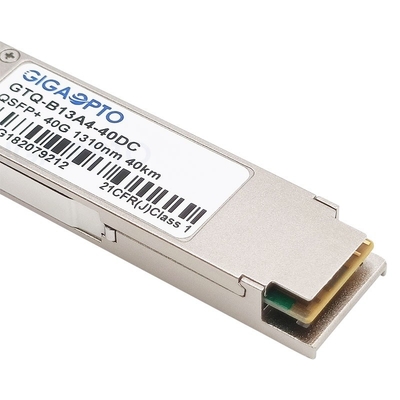

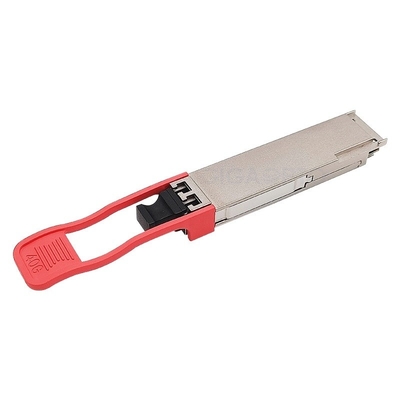

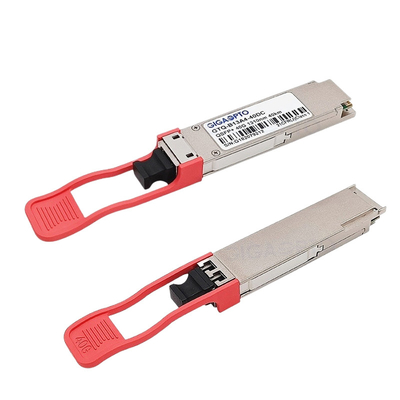

Cisco QSFP-40G-ER4 Compatible QSFP+ 40G ER4 40km SMF Optical Transceiver Module for Ethernet and Date Center
Description Of Cisco QSFP-40G-ER4 Compatible Transceiver
The 40GBASE-ER4 QSFP+ transceiver supports link lengths up to 40km over G.652 single-mode fiber with duplex LC connectors. It is compatible with Cisco 40G equipment and equivalent to the original QSFP-40G-ER4.
They are compliant with the QSFP+ MSA and IEEE 802.3bm 40GBASE-ER4 and OTU3 standards.
Digital diagnostic functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant with the RoHS Directive 2011/65/EU5.
Specification Of Cisco QSFP-40G-ER4 Compatible Transceiver
| Compatible Brand | CISCO | Compatible P/N | QSFP-40G-ER4 |
| Package | QSFP+ | Bit-Rate (Gb/s) | 44.8Gb/s (4×11.2Gb/s) |
| Wavelength | 1310nm CWDM | Reach | 40km |
| Connector | Duplex LC | Fiber Type | Single-mode fiber |
| TX Type | DFB CWDM | RX Type | APD |
| TX Power (dBm) | -2.7~4.5dBm | RX Sensitivity | <-21.2dBm |
| Power Budget (dB) | 18.5dB | Input Saturation Power | >-4.5dBm |
| Power Dissipation | ≤3.5W | Extinction Ratio | >5.5dB |
| DDM/DOM | Supported | Temp. Range | Standard: 0 to 70°C (32 to 158°F) |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 15km | ≤ 25km |
| Attenuator | 10dB | 5dB |
Features Of Cisco QSFP-40G-ER4 Compatible Transceiver
Application Of Cisco QSFP-40G-ER4 Compatible Transceiver
Standard Of Cisco QSFP-40G-ER4 Compatible Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order? What is your MOQ of Of Cisco QSFP-40G-ER4 Compatible Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco QSFP-40G-ER4 Compatible Transceiver?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Of Cisco QSFP-40G-ER4 Compatible Transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on Of Cisco QSFP-40G-ER4 Compatible Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
