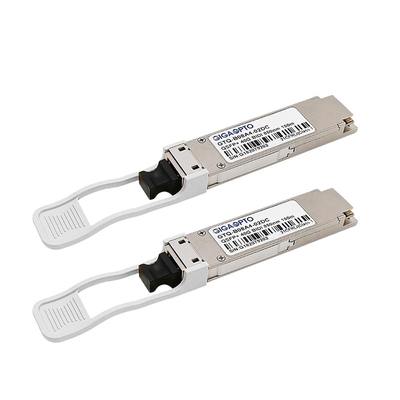

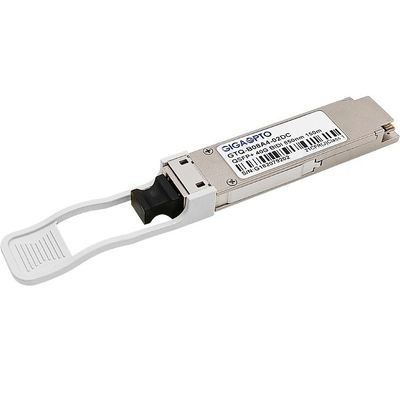

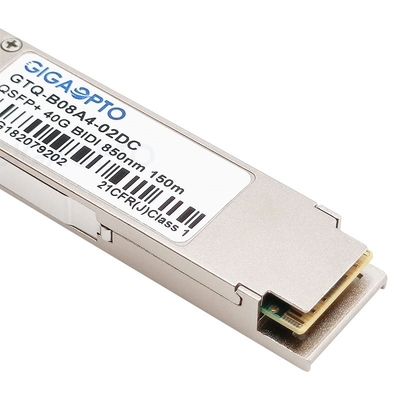

40Gbps Bidirectional 850nm Duplex LC 150m MMF For Cisco QSFP-40G-SR-BD

850nm Duplex LC 150m MMF For 40Gbps BiDi Cisco QSFP-40G-SR-BD

Description Of Compatible Cisco QSFP-40G-SR-BD Transceiver

This Cisco QSFP-40G-SR-BD compatible module is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using MultiMode Fiber (MMF). Max transmission can reach up to 100m over OM3 or 150m over OM4.It is fully compliant with QSFP+ MSA, IEEE 802.3ba-2010.

This Cisco QSFP-40G-SR-BD compatible module is functionally equivalent to the Cisco original module, excellent interoperation with Cisco QSFP+ port optical transport devices such as Cisco Nexus 2000 Series, Nexus 3000 Series, Nexus 5000 Series, Nexus 5600 Series, Nexus 6000 Series, Nexus 7000 Series, Nexus 9000 Series, etc.

Specification Of Compatible Cisco QSFP-40G-SR-BD Transceiver

Features Of Compatible Cisco QSFP-40G-SR-BD Transceiver

• Functionally equivalent to Cisco QSFP-40G-SR-BD
• 40Gbps 850nm & 900nm QSFP Bi-directional Optical Transceiver
• Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
• Compliant to QSFP+ SFF-8436 Specification
• Aggregate bandwidth : >40Gbps
• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
• QSFP MSA compliant
• Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
• Single +3.3V power supply operating
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C
• RoHS Compliant Part
• Utilizes a standard LC duplex fiber cable allowing the reuse of existing cable infrastructure

Applications Of Compatible Cisco QSFP-40G-SR-BD Transceiver

• 40 Gigabit Ethernet interconnects
• Datacom/Telecom switch & router connections
• Data aggregation and backplane applications
• Proprietary protocol and density applications

Standard Of Compatible Cisco QSFP-40G-SR-BD Transceiver

• Compliant to IEEE 802.3ba
• Compliant to SFF-8436
• RoHS Compliant.

Mechanical Dimensions Of Compatible Cisco QSFP-40G-SR-BD Transceiver

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

Competitive prices.

1. High-quality products and services.
2. Fully compatible (Cisco/Juniper/HP/Huawei/Alcatel-Lucent Nokia/H3C...)
3. Big capability of manufacture for 40K~100K pcs per month.
4. Independent R&D ability.
5. Keep stock, Fast delivery

Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.

Q: Can I have a sample order? What is your MOQ of Compatible Cisco QSFP-40G-SR-BD Transceiver?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.

Q: What are your payment terms for Compatible Cisco QSFP-40G-SR-BD Transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.

Could also support L/C, Credit terms.

Q: Could I return the Compatible Cisco QSFP-40G-SR-BD Transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.

Q: Could I use our own logo and label on this Compatible Cisco QSFP-40G-SR-BD Transceiver?

Yes, we could provide an OEM service and make the products with your own label.
