Product Details:
|
| Product Name: | Cisco SFP28 Module | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 10km | Connector: | LC Duplex |
| Applications: | 25GBASE-LR Ethernet | Keywords: | SFP-25G-LR-S, Cisco Fiber Module |
| Highlight: | 10km Cisco Fiber Module,SFP28 Cisco Fiber Module,SMF SFP-25G-LR-S |
||

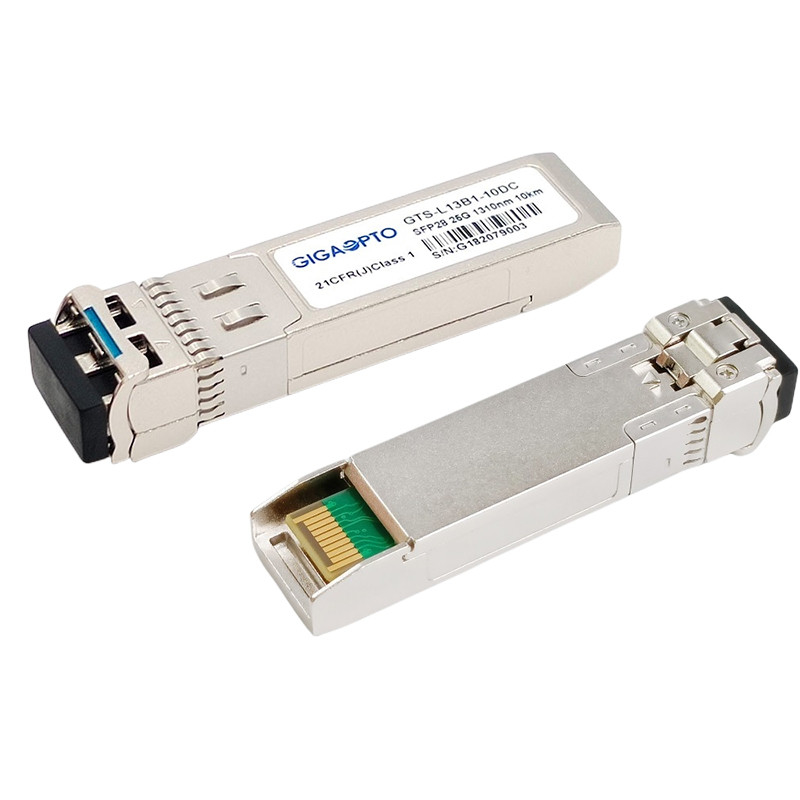

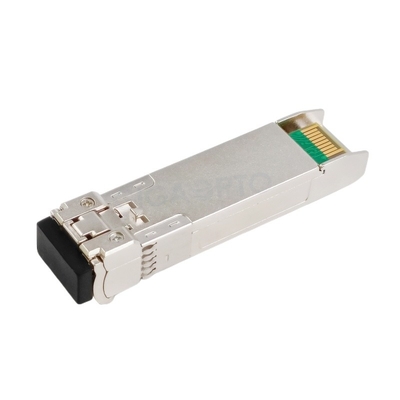

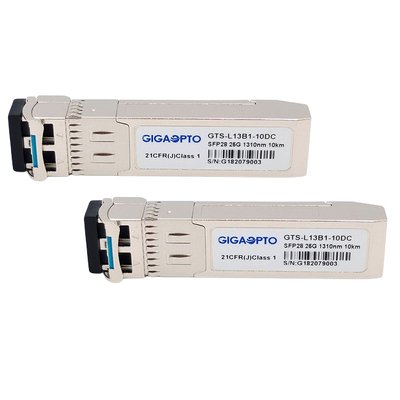

Cisco SFP-25G-LR-S Compatible 25GBASE-LR Ethernet Fiber Module 10km 1310nm For Data Center HPC
Description Of SFP-25G-LR-S Compatible Cisco Fiber Module
This 25G SFP28 LR is a Cisco SFP-25G-LR-S compatible fiber module, which is designed for use with Cisco 25 Gigabit Ethernet connectivity in data centers and high-performance computing network applications.
This Cisco SFP-25G-LR-S compatible fiber module is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco original transceivers.
All our transceivers are certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability.
Specification Of SFP-25G-LR-S Compatible Cisco Fiber Module
| Compatible Brand | Cisco | Compatible P/N | SFP-25G-LR-S |
| Vendor | Gigaopto | Bit-Rate (Gb/s) | 25.78Gb/s |
| Wavelength (TX) | 1310nm | Reach | 10km |
| Connector | Duplex LC | Media Type | SMF |
| LD Type | DFB 1310nm | PD Type | PIN photo-detector |
| TX Power (dBm) | -4.5~2.5dBm | RX Sensitivity | <-11.4dBm |
| Optical-budget (dB) | 6.9 | Overload | >2.5dBm |
| Power Consumption | ≤1.2W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Host FEC | Supported |
| CDR | TX & RX Built-in CDR | Temperature | Commercial |
| OEM/ODM | Supported | Warranty | 3 years |
Features Of SFP-25G-LR-S Compatible Cisco Fiber Module
Application Of SFP-25G-LR-S Compatible Cisco Fiber Module
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.
Q: What about the warranty for this SFP-25G-LR-S Compatible Cisco Fiber Module?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM for this SFP-25G-LR-S compatible Cisco fiber module?
Yes. We accept OEM & ODM
Q: How can I get a sample to check the quality of this SFP-25G-LR-S Compatible Cisco Fiber Module?
A free sample is available.
