Product Details:
|
| Product Name: | Cisco Optical Transceiver | Form Factor: | SFP28 |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100 Meters |
| Application: | 25GBASE-SR Ethernet | Keywords: | SFP-25G-SR-S, Cisco SFP28 Transceiver |
| Highlight: | MMF Optical Transceiver Module,SFP28 Optical Transceiver Module,Cisco SFP-25G-SR-S |
||

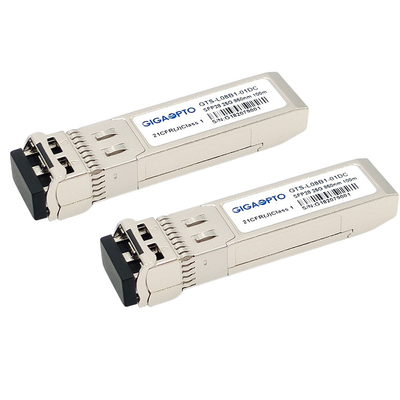

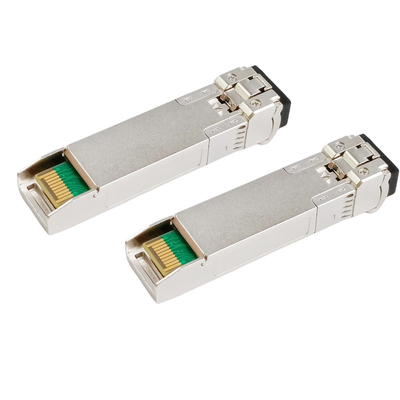

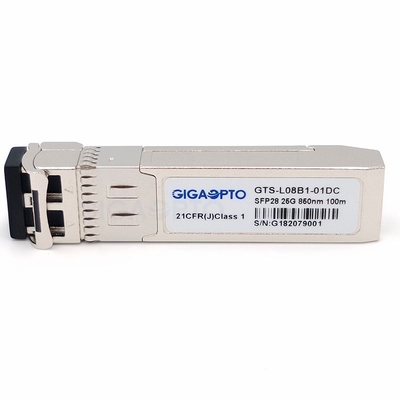

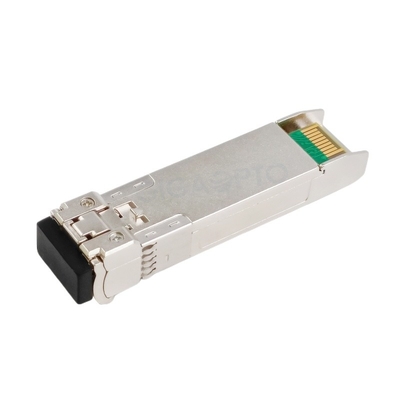

Cisco SFP-25G-SR-S SFP28 850nm 100m MMF Optical Transceiver Module Duplex LC DOM
Description Of SFP-25G-SR-S Compatible Cisco SFP28 Transceiver
This 25G SFP28 SR is a Cisco SFP-25G-SR-S compatible 25Gbase-SR transceiver, which is designed for use with Cisco 25 Gigabit Ethernet connectivity in data center and high-performance computing network applications. The SFP28 SR module support max links of 70m over OM3 or 100m over OM4 multi-mode fiber.
This Cisco SFP-25G-SR-S compatible transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco original transceivers.
The Cisco SFP-25G-SR-S compatible SFP28 SR transceivers are compatible with SFP Multi-Source Agreement(MSA), RoHS and IEEE802.3by standard.
Digital diagnostics functions are available through a 2-wire serial interface, as specified in SFF-8472.
All our transceivers are certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability.
Specification Of SFP-25G-SR-S Compatible Cisco SFP28 Transceiver
| Compatible Brand | Cisco | Compatible P/N | SFP-25G-SR-S |
| Form Factor | SFP28 | Data Rate | 25.78Gb/s |
| Center Wavelength | 850nm | Cable Link Length | 100m on OM4/70m on OM3 |
| Interface | LC Duplex | Cable Type | Multimode Fiber |
| TX Type | VCSEL | RX Type | PIN photo-detector |
| TX Output Power (dBm) | -8.4~2.4dBm | RX Sensitivity | < -10.3dBm |
| Optical budget | 1.9dB | Overload | > 2.4dBm |
| Power Dissipation | ≤1W | Extinction Ratio | > 2dB |
| Diagnostic (DDM/DOM) | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | Warranty | 3 years |
Features Of SFP-25G-SR-S Compatible Cisco SFP28 Transceiver
Application Of SFP-25G-SR-S Compatible Cisco SFP28 Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order? What is your MOQ of this SFP-25G-SR-S Compatible Cisco SFP28 Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for this SFP-25G-SR-S Compatible Cisco SFP28 Transceiver?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the SFP-25G-SR-S Compatible Cisco SFP28 Transceivers if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this SFP-25G-SR-S Compatible Cisco SFP28 Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
