Product Details:
|
| Item Name: | Cisco Gigabit Transceiver | Reach: | 80km (49.7 Miles) |
|---|---|---|---|
| Wavelength: | 1490nm-TX/1550nm-RX | Power Budget: | 26dB |
| Applications: | Gigabit Ethernet/1G Fiber Channel | Keywords: | Cisco Gigabit Transceiver, GLC-BX80-UA |
| Highlight: | RX1550nm Cisco Gigabit Transceiver,TX1490nm Cisco Gigabit Transceiver,GLC-BX80-UA CISCO Compatible Transceivers |
||

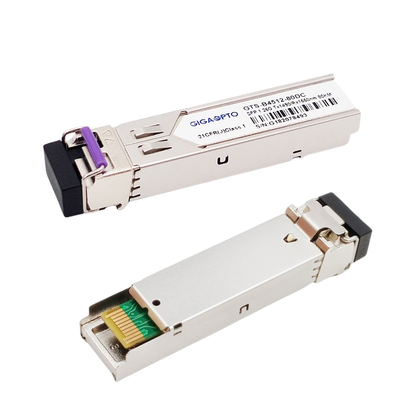

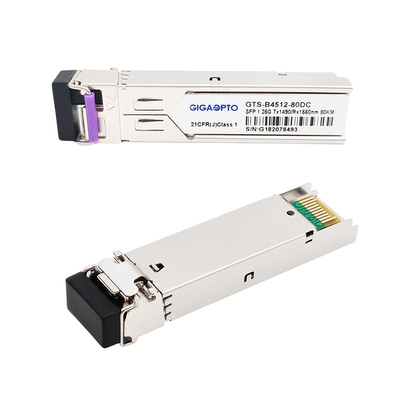

1490nm-TX/1550nm-RX Cisco GLC-BX80-UA Compatible SFP 1000BASE-BX SMF 80km LC DOM Gigabit Transceiver
Description Of GLC-BX80-UA Compatible Cisco Gigabit Transceiver
The Cisco GLC-BX80-UA compatible Gigabit Transceiver operates at 1000BASE-BX with a wavelength of Tx1490nm/Rx1550nm and a maximum reach can reach up to 80km over single-mode fiber (SMF) via LC simplex connectors. The transmitter section uses a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
This Cisco GLC-BX80-UA compatible Gigabit Transceiver has been programmed and strictly tested in the factory to ensure it works with Cisco network switches, routers, firewalls, security gateway, fiber media converter, servers, NAS, accelerator card, network adapters, and interface card (NICs).
Specification Of GLC-BX80-UA Compatible Cisco Gigabit Transceiver
| Compatible Brand | Cisco | Compatible PN | GLC-BX80-UA |
| Vendor | Gigaopto | Data Rate | 1.25Gb/s |
| Connector | Simplex LC | Reach | 80 Kilometer |
| DDMI | With | Media Type | SMF |
| Power Budget | 26dB | Temp. Range | Standard 0 to 70°C |
| Wavelength(TX/RX) | 1490nm/1550nm | Power Supply Voltage | 3.3V (typical) |
| Power Dissipation | <1W | Current | <300mA |
| LD Laser | DFB BiDi | PD Part | PIN Photo-diode |
| TX Output Power | 0~5dBm | RX Sensitivity | < -26dBm |
| Extinction Ratio | >9dB | Overload | >-3dBm |
| Protocols | IEEE 802.3z, Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | ||
Features Of GLC-BX80-UA Compatible Cisco Gigabit Transceiver
Application Of GLC-BX80-UA Compatible Cisco Gigabit Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.
Q: Can I have a sample order of GLC-BX80-UA Compatible Cisco Gigabit Transceiver? What is your MOQ of GLC-BX80-UA Compatible Cisco Gigabit Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for this GLC-BX80-UA Compatible Cisco Gigabit Transceiver?
Usually, we need prepayment by T/T, West Union, or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the GLC-BX80-UA Compatible Cisco Gigabit Transceivers if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this GLC-BX80-UA Compatible Cisco Gigabit Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
