Product Details:
|
| Product Name: | Cisco WDM Transceiver | Form Type: | SFP |
|---|---|---|---|
| Speed: | 1250Mbps | Cable Distance: | 10km (6.2 Miles) |
| Wavelength: | T1310nm/R1490nm | Application: | Gigabit Ethernet / 1G Fiber Channel |
| Keywords: | Cisco WDM Transceiver, MGBBX1 | ||
| Highlight: | Cisco Linksys WDM Transceiver,MGBBX1 WDM Transceiver,20km CISCO Compatible Transceivers |
||

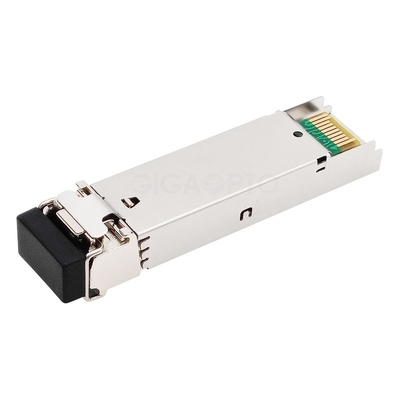

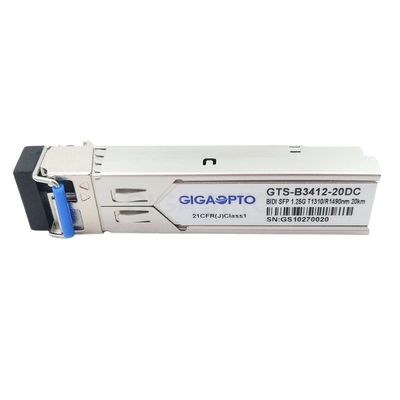

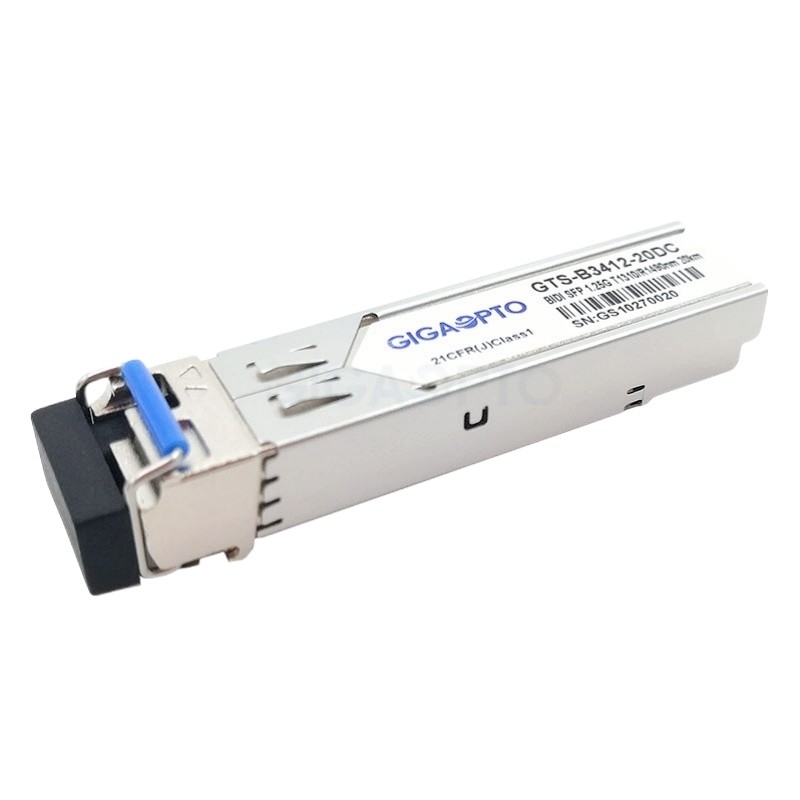

Cisco Linksys MGBBX1 Compatible 1000BASE-BX WDM SFP Transceiver Module 20km 1310nm-TX/1490nm-RX SMF DOM
Description Of Linksys MGBBX1 Compatible Cisco WDM Transceiver
The Cisco Linksys MGBBX1 compatible SFP WDM transceiver operates at 1000BASE-BX with a wavelength of Tx1310nm/Rx1490nm with a maximum reach of 20km. Each of these WDM transceiver modules is individually programmed in-house and tested for performance and functionality as well as compatibility tested in target Cisco platforms.
Specification Of Linksys MGBBX1 Compatible Cisco WDM Transceiver
| Compatible Brand | Cisco Linksys | Compatible P/N | MGBBX1 |
| Form Factor | SFP | Data Transfer Rate | 1250Mb/s |
| Interface | Simplex LC | Reach | 20km (12.4miles) |
| Digital Diagnostics | Supported | Cable Length | SMF |
| Typical Wavelength | Tx1310nm/Rx1490nm | Ambient Temperature | Commercial 0 to 70°C |
| Optical Components | FP/PIN | Modulation Format | NRZ |
| TX Power | -9~-3dBm | Receiver Sensitivity | < -20dBm |
| Extinction Ratio | >9dB | RX Overload | >-3dBm |
| Protocols | SFF-8472, IEC60825-1, IEEE 802.3z | ||
Features Of Linksys MGBBX1 Compatible Cisco WDM Transceiver
Application Of Linksys MGBBX1 Compatible Cisco WDM Transceiver
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get for this Linksys MGBBX1 Compatible Cisco WDM Transceiver?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.
Q: What about the warranty of this Linksys MGBBX1 Compatible Cisco WDM Transceiver?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM for this Linksys MGBBX1 Compatible Cisco WDM Transceiver?
Yes. We accept OEM & ODM
Q: How can I get a sample to check the quality of this Linksys MGBBX1 Compatible Cisco WDM Transceiver?
A free sample is available.
