Product Details:
|
| Product Name: | Cisco Compatible CSFP | Bit Rate: | 1.25Gbps |
|---|---|---|---|
| Cable Length: | 10km (6.2 Miles) | Centre Wavelength: | Tx1310nm/Rx1490nm |
| Application: | Gigabit Ethernet, 1G FC | Keywords: | Cisco CSFP, GLC-2BX-D |
| Highlight: | 2 Channel GLC-2BX-D,Cisco GLC-2BX-D,CSFP CISCO Compatible Transceivers |
||

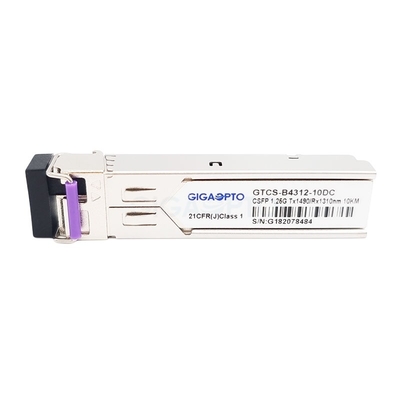

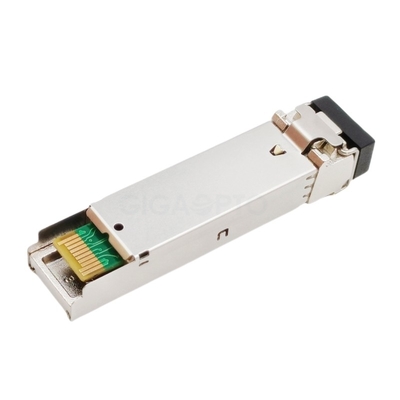

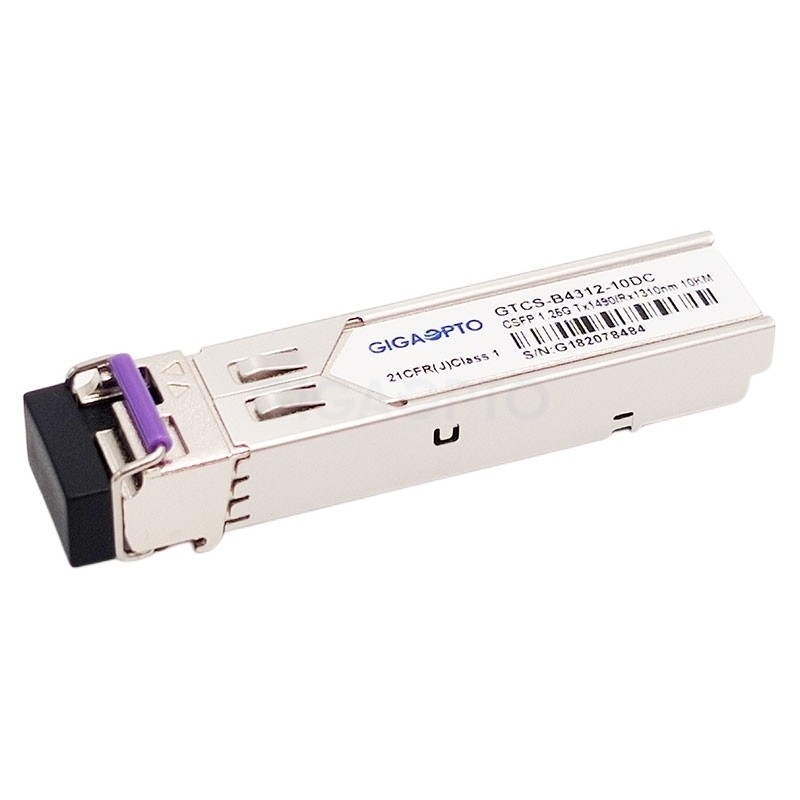

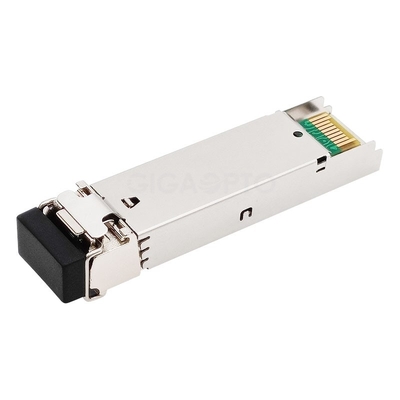

Cisco GLC-2BX-D Compatible1.25Gbps BiDi CSFP 2-Channel Transceiver Module TX1490nm/RX1310nm 10km DOM Duplex LC SMF
Description Of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers
The Cisco GLC-2BX-D compatible 2-channel CSFP transceivers are small form factor pluggable modules for Gigabit Ethernet 1000BASE-BX and Fiber Channel single fiber applications by using a 1490nm transmitter and 1310nm receiver.
It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a class 1 laser compliant with International Safety Standard IEC 60825.
This CSFP transceiver is an ideal equivalent to the original Cisco GLC-2BX-D transceiver module that can work with Cisco networking equipment such as ME4600-AMX-48GE, WS-X4640-CSFP-E, etc.
Specification Of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers
| Compatible Brand | Cisco | Compatible Part Number | GLC-2BX-D |
| Form Type | Compact SFP | Data Rate (Gbps) | 1.25Gbps |
| Optical Receptacle Type | Duplex LC | Link Length Supported | 10km (6.2 miles) |
| DDM/DOM | Supported | Media Type | Single-Mode |
| Centre Wavelength | Tx1490nm/Rx1310nm | Operating Temp. | 0 to 70°C (32 to 158°F) |
| LD Type | DFB BiDi | Receiver Type | PIN |
| Optical Output Power | -9.5~-3dBm | RX Sensitivity | < -22dBm |
| ER | >8.2dB | Overload | >-3dBm |
| Protocols | IEC60825-1, SFP MSA,1000BASE Ethernet, SFF-8472 | ||
Features Of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers
Application Of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers? What is your MOQ of Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this Cisco GLC-2BX-D Compatible 2-channel CSFP Transceivers?
Yes, we could provide an OEM service and make the products with your own label.
