Product Details:
|
| Product Name: | Cisco CSFP Transceiver | Speed(GB/S): | 1.25Gb/s |
|---|---|---|---|
| Link: | 10km (6.2 Miles) | Wavelength(CH1/CH2): | TX1310nm/RX1490nm |
| Application: | Gigabit Ethernet/1GFC | Keywords: | GLC-2BX-U, Cisco CSFP Transceiver |
| Highlight: | 2 Channel Cisco Transceiver Module,CSFP Cisco Transceiver Module,GLC-2BX-U CISCO Compatible Transceivers |
||

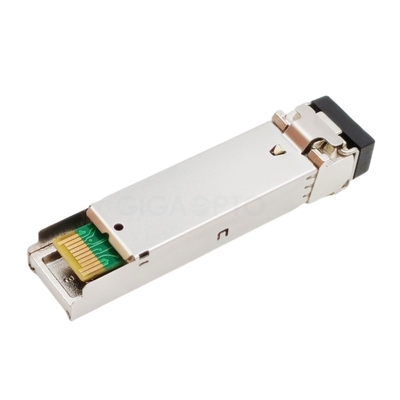

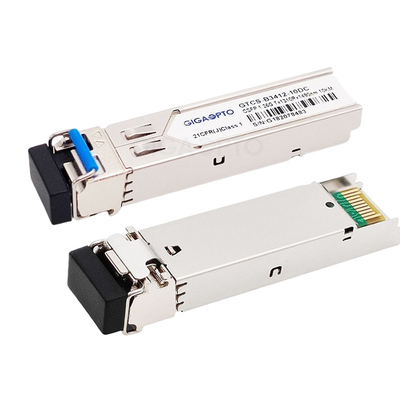

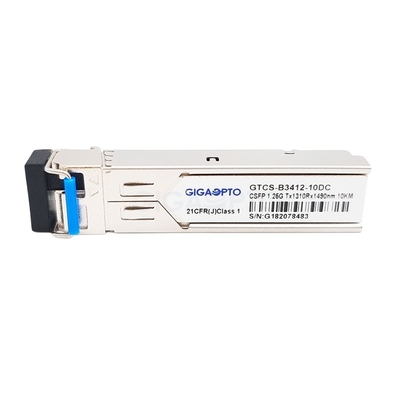

1.25Gbps Cisco GLC-2BX-U Compatible 2-Channel CSFP T1310nm/R1490nm 10km Transceiver Module SMF Duplex LC DOM
Description Of Compatible GLC-2BX-U Cisco CSFP Transceivers
The Cisco GLC-2BX-U compatible CSFP transceivers are high performance and cost-effective Compact SFP (CSFP) Bi-directional optical modules designed to meet Gigabit Ethernet and 1X Fiber channel application. This 1000BASE-BX CSFP module supports 1G bidirectional connection by using WDM technology, and can double the bandwidth with only one optical fiber. It supports a maximum distance of 10 kilometers through single-mode fiber (SMF).
This Cisco GLC-2BX-U compatible CSFP transceiver is suitable for Cisco network switches, routers, firewalls, security gateway, fiber media converter, servers, NAS, accelerator card, network adapters, and interface card (NICs). It is compatible with Cisco ME4600-AMX-48GE, and WS-X4640-CSFP-E, etc.
Specification Of Compatible GLC-2BX-U Cisco CSFP Transceivers
| Compatible Brand | Cisco | Compatible PN | GLC-2BX-U |
| Form Factor | Compact SFP (CSFP) | Data Rate | 1.25G/1.25G |
| Optical Connector | Dual LC | Reach(km) | 10km |
| DDM/DOM | YES | Fiber Mode | Single Mode Fiber |
| Wave-length(nm) | T1310nm/T1490nm | Operating Temp.(ºC) | Commercial 0 to 70°C |
| Optical Components | FP/PIN | Power Budget | 14dB |
| TX Power(dBm) | -9 ~ -3dBm | RX Sensitivity | <-23dBm |
| Extinction Ratio | >8.2dB | Saturation (dBm) | >-3dBm |
| Protocols | IEC-60825, SFP MSA, RoHS,1000Base-BX IEEE802.3ah | ||
Features Of Compatible GLC-2BX-U Cisco CSFP Transceivers
Application Of Compatible GLC-2BX-U Cisco CSFP Transceivers
FAQ
Q: Why choose us ?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years experience in this field.
Q: Please explain how you ensure compatibility for the brands:
1. Experience: We have an experienced engineering team with over 15 years on compatibility for brands.
2. Testing Facilities: We are able to access to massive major manufacturer's switches , routers,NICs ...to verify the compatibility.
3. Expertise: We have a group of expertise who have been focusing on hardware,software,coding compatibility, and have always been analyzing the different brands new released firmware.
4. Strategic Loyalty Customers: Many of customers work very closely with us on new released OEM equipment and help us to expand our compatibility matrix.
5. Connections: We have many good connections to understand and learn the first hand information about the compatibility trend in the market.
Q: What is your after-sales service of Compatible GLC-2BX-U Cisco CSFP Transceivers? How about the warranty of this Compatible GLC-2BX-U Cisco CSFP Transceivers?
All our customers can enjoy the after-sales service for three-year-warranty and lifetime technical support.
Q: Can I have a sample order of this Compatible GLC-2BX-U Cisco CSFP Transceivers? What is your MOQ of this Compatible GLC-2BX-U Cisco CSFP Transceivers ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
