Product Details:
|
| Product Name: | Cisco Fiber Module | Form Type: | SFP |
|---|---|---|---|
| Bit Rate: | 1.25Gb/s | Distance: | 160km |
| Wavelength: | 1550nm | Optical Connector: | Duplex LC |
| Keywords: | GLC-ZX-SM-160, Cisco 1.25G Fiber Module | ||
| Highlight: | 1550nm Optical Fiber Module,160km Optical Fiber Module,GLC-ZX-SM-160 CISCO Compatible Transceivers |
||

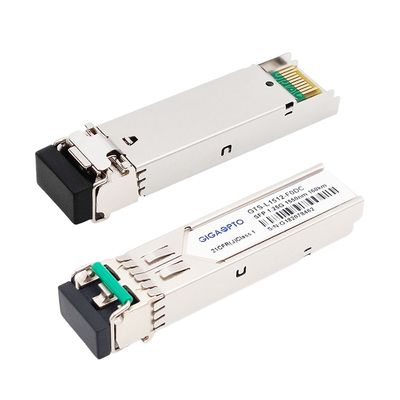

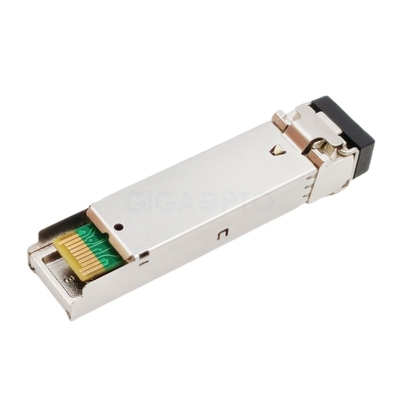

Cisco GLC-ZX-SM-160 Compatible 1000BASE-ZX DOM SFP Fiber Module 1550nm SMF 160km Duplex LC
Description Of Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver
This Cisco GLC-ZX-SM-160 compatible fiber transceiver is a high-performance and cost-effective small form-factor pluggable transceiver, suitable for a max of 160km 1000BASE-ZX160 Gigabit Ethernet and 1G Fiber Channel application. This Cisco compatible SFP fiber module provides 1000Base-ZX throughput up to 160km over single-mode fiber (SMF) using a wavelength of 1550nm via an LC connector.
The module is programmed and tested to be 100% identical to the original Cisco GLC-ZX-SM-160 transceiver in function and competent to work with Cisco Gigabit Ethernet switches, Ethernet routers, network interface cards (NICs), and SFP Media Converters.
Specification Of Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver
| Compatible Brand | Cisco | Compatible P/N | GLC-ZX-SM-160 |
| Product Packaging | SFP | Bit Rate | 1.25Gb/s |
| Connector Interface | Duplex LC | Max Cable Distance | 160km (99.4miles) |
| DOM | Yes | Media Type | SMF |
| Typical Wavelength | 1550nm | Temperature | 0 to 70°C; -40 to 85°C |
| Power Consumption | <1.0W | Optical Components | DFB/APD |
| TX Power | 0~6dBm | Sensitivity | -34dBm |
| ER | >9dB | Overload | >-8dBm |
| Protocols | EN 60825, SFP MSA, RoHS6 | ||
Notice: When the long-reach transceiver is used in short-distance transmission, please match with appropriate attenuator according to the table.
| Distance | ≤5km | ≤25km | ≤45km | ≤65km |
| Attenuator | 20dB | 15dB | 10dB | 5dB |
Features Of Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver
Application Of Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible with Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order of the Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver? What is your MOQ for Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Cisco GLC-ZX-SM-160 Compatible Fiber Transceivers if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on the Cisco GLC-ZX-SM-160 Compatible Fiber Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
