Product Details:
|
| Item Name: | Cisco Gigabit Transceiver | Package: | SFP |
|---|---|---|---|
| Bit Rate: | 155Mb/s | Cable Length: | 10km |
| Media Type: | SMF | Power Budget: | 17dB |
| Keywords: | GLC-FE-100LX, Cisco Gigabit Transceiver | ||
| Highlight: | 10km Cisco Gigabit Transceiver,DOM Cisco Gigabit Transceiver,Cisco GLC-FE-100LX |
||

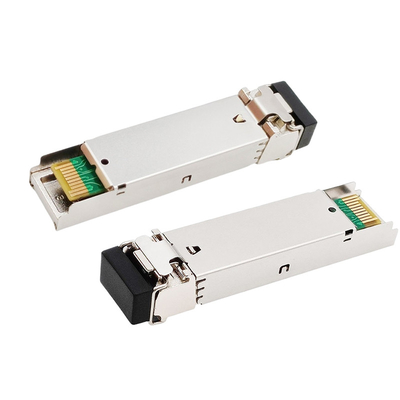

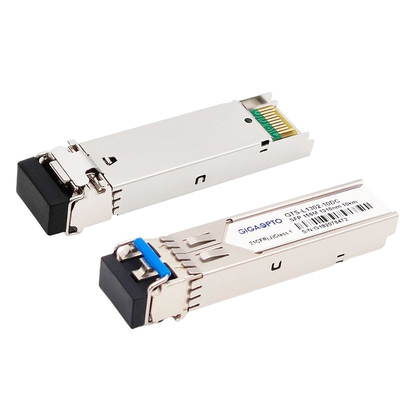

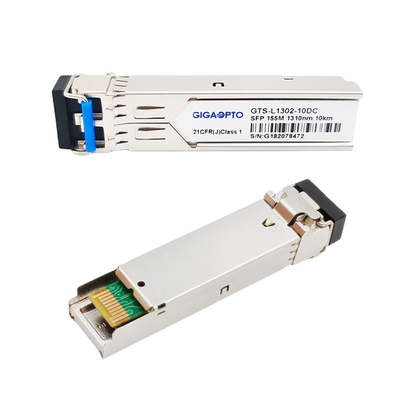

Cisco GLC-FE-100LX Compatible 100BASE-LX SFP 155Mbps 1310nm SMF 10km DOM Duplex LC Gigabit Transceiver
Description Of Cisco GLC-FE-100LX Compatible Gigabit Transceiver
This Cisco GLC-FE-100LX compatible gigabit transceiver is a dual fiber 155Mbps Small Form-factor Pluggable (SFP) module for 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers, supporting up to 10km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector.
This 100BASE-LX SFP transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to the Cisco GLC-FE-100LX SFP transceiver but more cost effective.
Specification Of Cisco GLC-FE-100LX Compatible Gigabit Transceiver
| Compatible Brand | Cisco | Compatible PN | GLC-FE-100LX |
| Vendor | Gigaopto | Data Rate | 155Mbps |
| Interface | dual LC | Distance | 10km (6.2 miles) |
| DOM | Supported | Fibre Type | SMF |
| Warranty | 3-Year | Environment | Standard: 0 to 70°C (32 to 158°F); |
| Wavelength | 1310nm | Power Supply Voltage | 3.3V |
| Transmitter Part | FP | Receiver Part | PIN photo-detector |
| TX Power (dBm) | -13~-8dBm | RX Sensitivity | < -30dBm |
| Extinction Ratio | >10dB | RX Overload | >-3dBm |
Features Of Cisco GLC-FE-100LX Compatible Gigabit Transceiver
Application Of Cisco GLC-FE-100LX Compatible Gigabit Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order? What is your MOQ for Cisco GLC-FE-100LX Compatible Gigabit Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco GLC-FE-100LX Compatible Gigabit Transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Cisco GLC-FE-100LX Compatible Gigabit Transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept free exchange.
Q: Could I use our own logo and label on this Cisco GLC-FE-100LX Compatible Gigabit Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
