Product Details:
|
| Product Name: | Cisco 100BASE SFP | Wavelength: | 1310nm |
|---|---|---|---|
| Transmission: | 2km | Media: | MMF |
| Component: | FP+PIN | Keywords: | GLC-GE-100FX, Cisco Gigabit SFP |
| Highlight: | SGMII GLC-GE-100FX,Cisco GLC-GE-100FX,2km CISCO Compatible Transceivers |
||

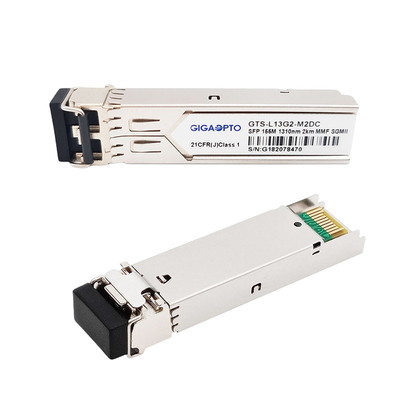

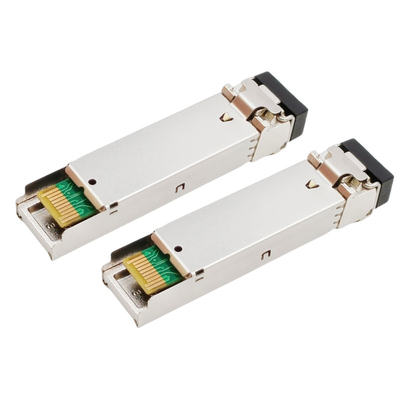

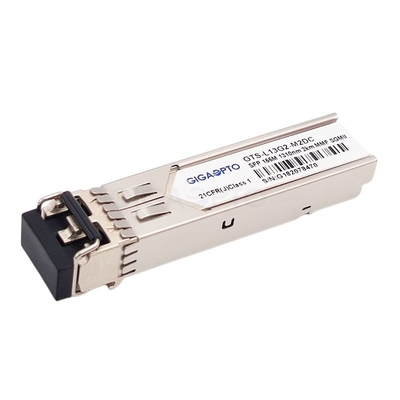

Cisco GLC-GE-100FX Compatible 100BASE-FX SFP SGMII Transceiver Module 1310nm 2km MMF DOM Duplex LC for Gigabit Ethernet SFP Ports
Description Of Cisco GLC-GE-100FX Compatible Transceiver
This Cisco GLC-GE-100FX Compatible Gigabit SFP is a dual fiber 100Mbps Small Form-factor Pluggable (SFP) 100BASE-FX SGMII module for gigabit SFP ports applications, with built-in PHY device supporting SGMII interface (Serial Gigabit Media Independent Interface). This Cisco Gigabit SFP supports dual data rate of 155Mbps and 2 km transmission distance with MMF.
This Cisco GLC-GE-100FX compatible Gigabit SFP transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco OEM transceivers.
Specification Of Cisco GLC-GE-100FX Compatible Transceiver
| Compatible Brand | CISCO | Compatible P/N | GLC-GE-100FX |
| Vendor | Gigaopto | Data Rate | 100Mbps |
| Connector | LC | Max Distance | 2km |
| DDM/DOM | Supported | Fiber Type | Multimode Fiber |
| Wavelength | 1310nm | Temperature Range | 0 to 70°C (32 to 158°F) |
| Power Consumption | 1W | Power Voltage | 3.3V |
| Transmitter | FP 1310nm | Receiver | PIN |
| TX Output Power | -20~-8dBm | RX Sensitivity | < -30dBm |
| Extinction Ratio | >10dB | Saturation Input Power | >-3dBm |
| Protocols | MSA Compliant, SFF-8472, IEEE 802.3 | ||
Features Of Cisco GLC-GE-100FX Compatible Transceiver
Application Of Cisco GLC-GE-100FX Compatible Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage:
Q: What is the operating temperature range of the Cisco GLC-GE-100FX Compatible Transceiver?
Commercial temperature range (COM): 0 to 70°C(32 to 158°F)
Extended temperature range (EXT): -20 to 85°C(23 to 185°F)
Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q: What is the standard warranty time for your Cisco GLC-GE-100FX Compatible Transceiver?
All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,
This limited warranty is applicable solely to the original purchaser and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products in accordance with their written specifications.
Three-Year (3-yr) Warranty Examination, repair and replacement parts are provided free.
