Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Bit-Rate: | 10Gbps |
|---|---|---|---|
| Wavelength: | 1470~1610nm CWDM | Max Link: | 80km |
| Optical Budget(dB): | 23 DB | Keyword: | 10G Ethernet/Fiber Channel |
| Highlight: | CWDM Cisco Fiber Transceiver,1470nm Cisco Fiber Transceiver,80km CISCO Compatible Transceivers |
||

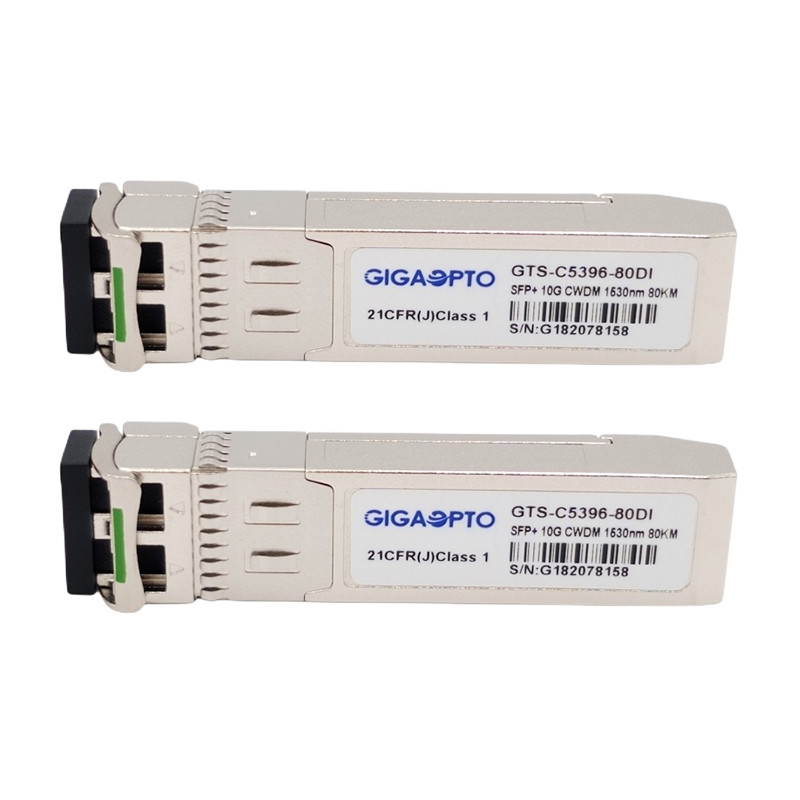

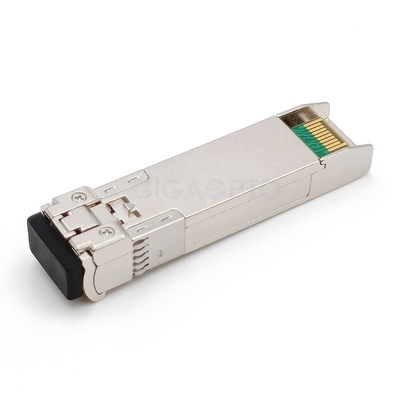

CWDM 1470nm Cisco Compatible Fiber Transceiver 80km For SMF CWDM-SFP10G-xx
Description of 10G CWDM-SFP10G-xx (1470~1610nm) 80km Series
This Cisco CWDM-SFP10G-xx compatible optical fiber transceiver module provides high capacity, high bandwidth communication solutions for multiplexed optical networks like CPRI, 10GBASE-ZR, SDH/SONET, OTN and 10G Fiber Channel applications. It supports up to 80km link distance over standard G.652 single-mode fiber (SMF) via an LC duplex connector.

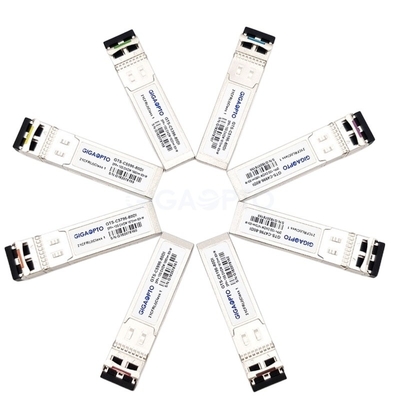

There are 8 center wavelengths available from 1470nm to 1610nm with each step 20nm.
Functional Specification
| Compatible Brand | Cisco | Part Number | CWDM-SFP10G-xx |
| Form Type/ Technology | SFP+ CWDM | Data Rate (Gbps) | 10Gbps |
| Wavelength | 1470nm~1610nm CWDM | Max Link Distance | 80km @ G.652 |
| Connector/Polish | Dual LC PC | Fibre Type | SMF |
| Transmitter | EML | Receiver | APD |
| Voltage Supply | 3.3V | Max Power Dissipation | <1.8 W |
| TX Output Power (dBm) | 0 ~ 4dBm | RX Sensitivity | <-23 dBm |
| Extinction Ratio | >3.5 dB | Input Overload | > -8 dBm |
| Power budget | 23 dB | DOM Support | Yes |
| Warranty | 3 Years | Temperature Range | 0 to 70°C |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 10km | ≤ 30km | ≤ 50km |
| Attenuator | 12dB | 10dB | 5dB |
Ordering Information
| Part Number | Description- 10G SFP+ CWDM ZR | Wavelength | TX Power | Distance (KM) | Connector | Latch Color |
| CWDM-SFP10G-1470 | 10Gbps SFP+ CWDM ZR 80km | 1470nm | 0 ~ 4dBm | 80km | Duplex LC | Gray |
| CWDM-SFP10G-1490 | 10Gbps SFP+ CWDM ZR 80km | 1490nm | 0 ~ 4dBm | 80km | Duplex LC | Violet |
| CWDM-SFP10G-1510 | 10Gbps SFP+ CWDM ZR 80km | 1510nm | 0 ~ 4dBm | 80km | Duplex LC | Blue |
| CWDM-SFP10G-1530 | 10Gbps SFP+ CWDM ZR 80km | 1530nm | 0 ~ 4dBm | 80km | Duplex LC | Green |
| CWDM-SFP10G-1550 | 10Gbps SFP+ CWDM ZR 80km | 1550nm | 0 ~ 4dBm | 80km | Duplex LC | Yellow |
| CWDM-SFP10G-1570 | 10Gbps SFP+ CWDM ZR 80km | 1570nm | 0 ~ 4dBm | 80km | Duplex LC | Orange |
| CWDM-SFP10G-1590 | 10Gbps SFP+ CWDM ZR 80km | 1590nm | 0 ~ 4dBm | 80km | Duplex LC | Red |
| CWDM-SFP10G-1610 | 10Gbps SFP+ CWDM ZR 80km | 1610nm | 0 ~ 4dBm | 80km | Duplex LC | Brown |
Features
Application
