Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Data Rate( Gbps ): | 10Gbps |
|---|---|---|---|
| Wavelength: | 1270~1610nm CWDM | Reach: | 40KM |
| I-Temp: | -40 To 85°C (-40 To 185°F) | Application: | 10G Ethernet /10G SONET/SDH |
| Highlight: | 10Gbps Cisco Ethernet Transceiver,CE Cisco Ethernet Transceiver,40km CISCO Compatible Transceivers |
||

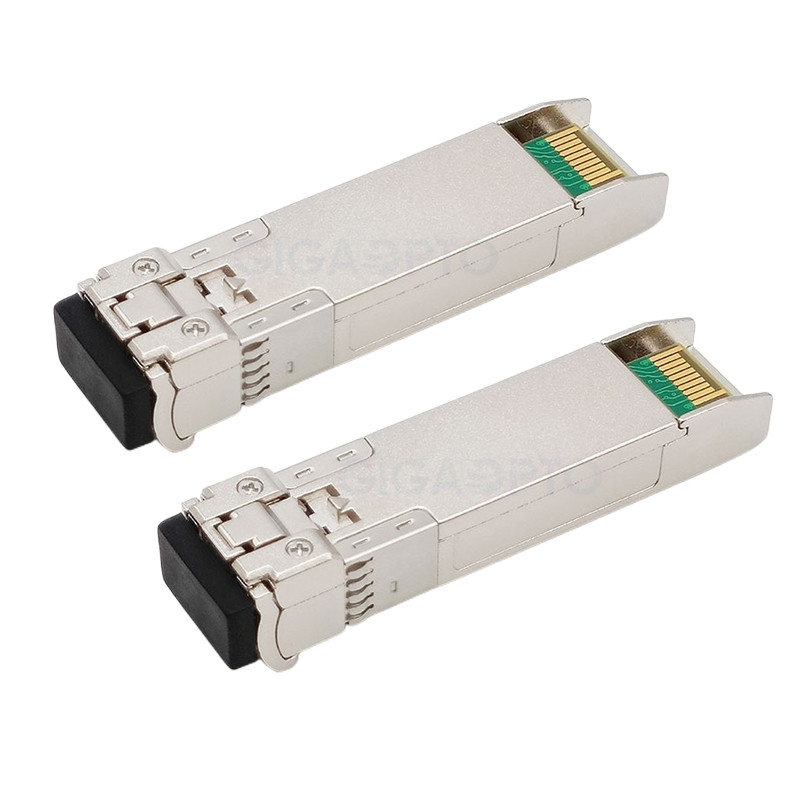

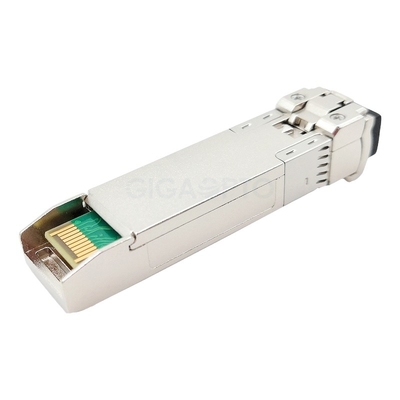

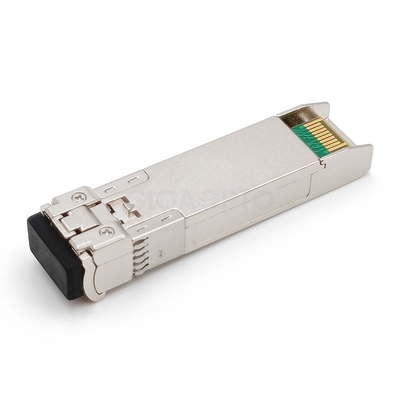

10GBase-CWDM Cisco Compatible Ethernet Transceiver For CWDM-SFP10G-1270-I 40km
Products Description of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series
This Cisco CWDM-SFP10G-1270-I compatible transceiver is designed for 10 Gigabit Ethernet links up to 40km over a pair of single mode fiber.
It features a highly reliable CWDM EML transmitter and PIN photo-detector into a duplex LC optical connector. There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm. The SFP+ Module is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER and 10G Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Featured with high-quality components, this CWDM-SFP10G-1270-I optics can work under the operating temperature range from -40 to 85°C (-40 to 185°F), which can deploy indoor and outdoor for 10G Ethernet and 10G SONET/SDH applications.
Functional Specification of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series
| Compatible Brand | Cisco | Part Number | CWDM-SFP10G-xx-I |
| Vendor | Gigaopto | Data Rate | 10Gbps |
| Wavelength | 1270nm~1610nm CWDM | Cable Link Length | 40km on SMF |
| Interface | Dual LC | Fibre Type | single-mode fiber |
| Transmitter | EML | Receiver | PIN Photo-detector |
| TX Power 1 (dBm) | 0 ~ 5dBm@1270nm to 1450nm | Rx Sensitivity | <-16 dBm |
| TX Power 2 (dBm) | -1 ~ 4dBm@1470nm to 1610nm | Overload | >0 dBm |
| Extinction Ratio | >6 dB | Temperature | -40 to 85°C (-40 to 185°F) |
| Powerbudget 1 (dB) | 16 dB | Powerbudget 2 (dB) | 15 dB |
| Power Dissipation | <1.8 W | Transmitter Dispersion Penalty | <3.5dB |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 5km | ≤ 10km | ≤ 15km |
| Attenuator | 7dB | 5dB | 3dB |
Ordering Information of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series
| Part Number | Description- 10G CWDM ER-I SFP+ | Wavelength | TX Power | Max Reach (KM) | Connector | Latch Color |
| CWDM-SFP10G-1270-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1270nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Light Purple |
| CWDM-SFP10G-1290-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1290nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Sky Blue |
| CWDM-SFP10G-1310-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1310nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Yellow Green |
| CWDM-SFP10G-1330-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1330nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Yellow Ocher |
| CWDM-SFP10G-1350-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1350nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Pink |
| CWDM-SFP10G-1370-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1370nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Beige |
| CWDM-SFP10G-1390-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1390nm | 0 ~ 5dBm | 40km | LC-Duplex PC | White |
| CWDM-SFP10G-1410-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1410nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Silver |
| CWDM-SFP10G-1430-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1430nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Black |
| CWDM-SFP10G-1450-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1450nm | 0 ~ 5dBm | 40km | LC-Duplex PC | Yellow Orange |
| CWDM-SFP10G-1470-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1470nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Gray |
| CWDM-SFP10G-1490-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1490nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Violet |
| CWDM-SFP10G-1510-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1510nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Blue |
| CWDM-SFP10G-1530-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1530nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Green |
| CWDM-SFP10G-1550-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1550nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Yellow |
| CWDM-SFP10G-1570-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1570nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Orange |
| CWDM-SFP10G-1590-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1590nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Red |
| CWDM-SFP10G-1610-I | 10GBASE CWDM 40km Transceiver -40 to 85°C (-40 to 185°F) | 1610nm | -1 ~ 4dBm | 40km | LC-Duplex PC | Brown |
Features of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series
Application of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series
FAQ
Q: Are you trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order? What is your MOQ of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label and package of CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
Q: What're your payment terms for the CWDM-SFP10G-1270-I 40KM (1270~1610nm) Industrial Series?
We accept T/T, Western Union, Paypal, L/C, etc. For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.
Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
