Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Wavelength: | 1270~1610nm Channel |
|---|---|---|---|
| Transmission: | 40km | Power Budget(dB): | 15 DB |
| Application: | 10G Ethernet, Data Center | Keyword: | 10G CWDM ER 40km |
| Highlight: | 10GBase Fiber Transceiver Module,Cisco Compatible Fiber Transceiver Module,CWDM CISCO Compatible Transceivers |
||

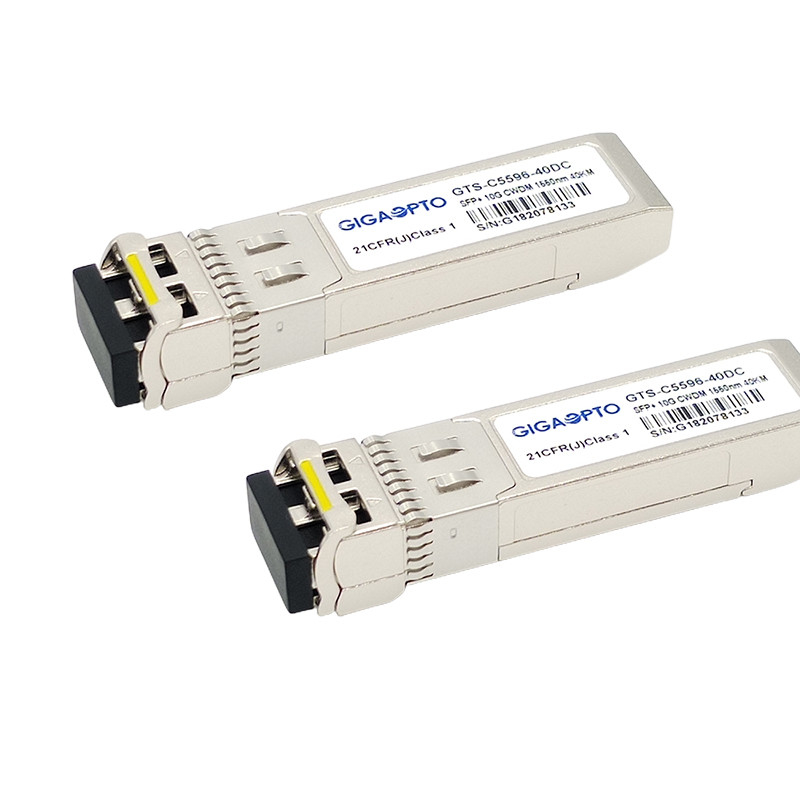

10GBase Cisco Compatible Fiber Transceiver Module CWDM 1270~1610nm for CWDM-SFP10G-xx
Products Description of CWDM-SFP10G 40KM (1270~1610nm) Series
This Cisco compatible transceiver provides high-capacity, high-bandwidth communication solutions for multiplexed optical networks. It it designed for 10 Gigabit Ethernet links up to 40km over standard single-mode fiber with an LC duplex connector.
There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm.
The CWDM-SFP10G module is compliant with SFF-8431, SFF-8432, CE, ROHS, FCC and IEEE 802.3ae 10GBASE-ER and 10G Fibre Channel.
The module is with the SFP 20-pin connector to allow hot plug capability. A single 3.3V power supply is needed. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal to the receiver.
Functional Specification
| Compatible Brand | Cisco | P/N(Part No.) | CWDM-SFP10G-xx |
| Vendor | Gigaopto | Rate Category (Gbps) | 10GBASE |
| Wavelength | 1270nm~1610nm | Distance | 40km @ G.652 |
| Interface | Dual LC PC | Media | single-mode fiber |
| LD Component | CWDM DFB | PD Component | PIN photo-detector |
| Voltage Supply | 3.3V | Rx Sensitivity | <-16 dBm |
| TX Power 1 (dBm) | 0 ~ 5dBm@1270nm to 1450nm | Rx Overload | >-8 dBm |
| TX Power 2 (dBm) | -1 ~ 4dBm@1470nm to 1610nm | Extinction Ratio | >3.5 dB |
| Power Dissipation | <1.5 W | Temperature Range | 0 to 70°C |
| DOM/DDM | With |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 5km | ≤ 10km | ≤ 15km |
| Attenuator | 7dB | 5dB | 3dB |

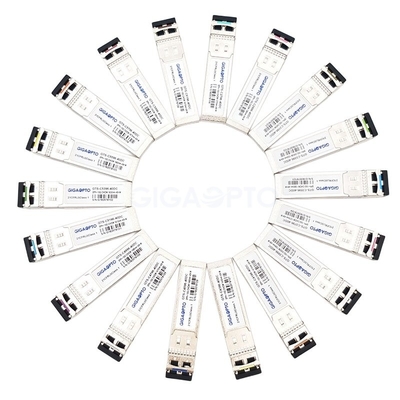

Ordering Information: CWDM-SFP10G 40km (1270~1610nm) Series
| Part Number | Wavelength Step | TX Power | Max Reach (km) | Connector | Pull Tab Color |
| CWDM-SFP10G-1270 | 1270nm | 0 ~ 5dBm | 40km | Dual LC PC | Light Purple |
| CWDM-SFP10G-1290 | 1290nm | 0 ~ 5dBm | 40km | Dual LC PC | Sky Blue |
| CWDM-SFP10G-1310 | 1310nm | 0 ~ 5dBm | 40km | Dual LC PC | Yellow Green |
| CWDM-SFP10G-1330 | 1330nm | 0 ~ 5dBm | 40km | Dual LC PC | Yellow Ocher |
| CWDM-SFP10G-1350 | 1350nm | 0 ~ 5dBm | 40km | Dual LC PC | Pink |
| CWDM-SFP10G-1370 | 1370nm | 0 ~ 5dBm | 40km | Dual LC PC | Beige |
| CWDM-SFP10G-1390 | 1390nm | 0 ~ 5dBm | 40km | Dual LC PC | White |
| CWDM-SFP10G-1410 | 1410nm | 0 ~ 5dBm | 40km | Dual LC PC | Silver |
| CWDM-SFP10G-1430 | 1430nm | 0 ~ 5dBm | 30km | Dual LC PC | Black |
| CWDM-SFP10G-1450 | 1450nm | 0 ~ 5dBm | 30km | Dual LC PC | Yellow Orange |
| CWDM-SFP10G-1470 | 1470nm | -1 ~ 4dBm | 40km | Dual LC PC | Gray |
| CWDM-SFP10G-1490 | 1490nm | -1 ~ 4dBm | 40km | Dual LC PC | Volet |
| CWDM-SFP10G-1510 | 1510nm | -1 ~ 4dBm | 40km | Dual LC PC | Blue |
| CWDM-SFP10G-1530 | 1530nm | -1 ~ 4dBm | 40km | Dual LC PC | Green |
| CWDM-SFP10G-1550 | 1550nm | -1 ~ 4dBm | 40km | Dual LC PC | Yellow |
| CWDM-SFP10G-1570 | 1570nm | -1 ~ 4dBm | 40km | Dual LC PC | Orange |
| CWDM-SFP10G-1590 | 1590nm | -1 ~ 4dBm | 40km | Dual LC PC | Red |
| CWDM-SFP10G-1610 | 1610nm | -1 ~ 4dBm | 40km | Dual LC PC | Brown |
| Note | The maximum transmission distance is 30km owing to dispersion influence @1430nm/1450nm Channel | ||||
Features
Application
FAQ
Q: Are you trading company or manufacturer?
We are direct manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order? What is your MOQ?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label and package?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
Q: What're your payment terms?
We accept T/T, Western Union, Paypal, L/C, etc. For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.
Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
