Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Data-Rate: | 10.3125Gbps |
|---|---|---|---|
| Wavelength: | 1270~1610nm | Transmission: | 10km |
| Optical Budget: | 10dB | Application: | Data Center, 10G Ethernet |
| Highlight: | 1610nm Cisco Optical Transceivers,SMF Cisco Optical Transceivers,10km CISCO Compatible Transceivers |
||

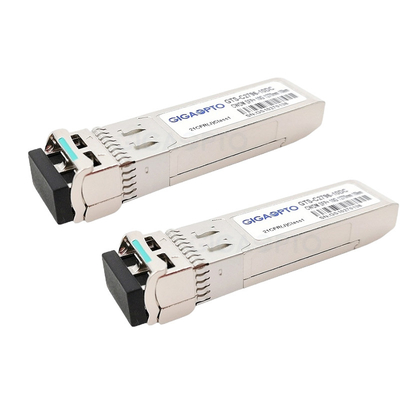

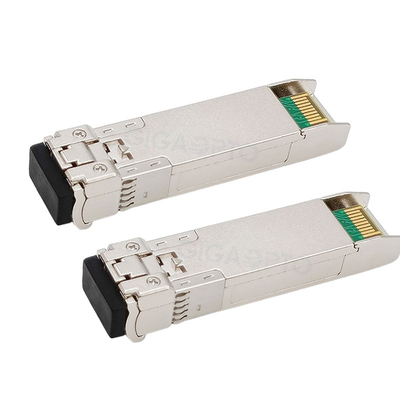

10Gbps SFP+ 1270~1610nm Cisco Compatible Optical Transceivers SMF 10km for CWDM-SFP10G-xx-10
Products Description of 10G SFP+ CWDM LR (1270~1610)nm Series
This hot-pluggable 10Gbps Cisco CWDM-SFP10G-xx-10 compatible transceiver provides a high capacity, high bandwidth communication solutions for multiplexed optical networks. This CWDM SFP+ transceiver module is designed for 10 Gigabit Ethernet links up to 10km over dual-strand single-mode fiber.
It features a highly reliable CWDM DFB transmitter and PIN photo-detector into a duplex LC optical connector. There are 18 center wavelengths available from 1270nm to 1610nm with each step 20nm. A guaranteed minimum optical link budget of 10 dB is offered.
The CWDM-SFP10G-xx-10 transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR and 10G Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Functional Specification
| Compatible Brand | Cisco | P/N(Part No.) | CWDM-SFP10G-xx-10 |
| Vendor | Gigaopto | Data Rate (Gbps) | 10.3 Gb/s |
| Wavelength | 1270nm~1610nm | Reach | 10km |
| Interface | Dual LC | Media Type | G.652 SMF |
| Transmitter | CWDM DFB | Receiver | PIN |
| Voltage Supply | 3.3V | Rx Sensitivity | <-14.4dBm |
| TX Output Power (dBm) | -6~+0.5dBm | Saturation Input Power | <0.5 dBm |
| Power budget (dB) | 8.4 dB | Extinction Ratio | >3.5 dB |
| Power Dissipation | <1.0 W | Temperature | 0 to 70°C (32 to 158°F) |
| DOM/DDM | Support | OEM/ODM | Supported |
Ordering Information
| Part Number | Description | CWDM/ CH | Reach (KM) | Connector | Latch Color |
| CWDM-SFP10G-1270-10 | SFP+ 10Gbps Cisco CWDM LR | 1270nm | 10km | LC Duplex | Light Purple |
| CWDM-SFP10G-1290-10 | SFP+ 10Gbps Cisco CWDM LR | 1290nm | 10km | LC Duplex | Sky Blue |
| CWDM-SFP10G-1310-10 | SFP+ 10Gbps Cisco CWDM LR | 1310nm | 10km | LC Duplex | Yellow Green |
| CWDM-SFP10G-1330-10 | SFP+ 10Gbps Cisco CWDM LR | 1330nm | 10km | LC Duplex | Yellow Ocher |
| CWDM-SFP10G-1350-10 | SFP+ 10Gbps Cisco CWDM LR | 1350nm | 10km | LC Duplex | Pink |
| CWDM-SFP10G-1370-10 | SFP+ 10Gbps Cisco CWDM LR | 1370nm | 10km | LC Duplex | Beige |
| CWDM-SFP10G-1390-10 | SFP+ 10Gbps Cisco CWDM LR | 1390nm | 10km | LC Duplex | White |
| CWDM-SFP10G-1410-10 | SFP+ 10Gbps Cisco CWDM LR | 1410nm | 10km | LC Duplex | Silver |
| CWDM-SFP10G-1430-10 | SFP+ 10Gbps Cisco CWDM LR | 1430nm | 10km | LC Duplex | Black |
| CWDM-SFP10G-1450-10 | SFP+ 10Gbps Cisco CWDM LR | 1450nm | 10km | LC Duplex | Yellow Orange |
| CWDM-SFP10G-1470-10 | SFP+ 10Gbps Cisco CWDM LR | 1470nm | 10km | LC Duplex | Gray |
| CWDM-SFP10G-1490-10 | SFP+ 10Gbps Cisco CWDM LR | 1490nm | 10km | LC Duplex | Volet |
| CWDM-SFP10G-1510-10 | SFP+ 10Gbps Cisco CWDM LR | 1510nm | 10km | LC Duplex | Blue |
| CWDM-SFP10G-1530-10 | SFP+ 10Gbps Cisco CWDM LR | 1530nm | 10km | LC Duplex | Green |
| CWDM-SFP10G-1550-10 | SFP+ 10Gbps Cisco CWDM LR | 1550nm | 10km | LC Duplex | Yellow |
| CWDM-SFP10G-1570-10 | SFP+ 10Gbps Cisco CWDM LR | 1570nm | 10km | LC Duplex | Orange |
| CWDM-SFP10G-1590-10 | SFP+ 10Gbps Cisco CWDM LR | 1590nm | 10km | LC Duplex | Red |
| CWDM-SFP10G-1610-10 | SFP+ 10Gbps Cisco CWDM LR | 1610nm | 10km | LC Duplex | Brown |
Features
Application
Standard
Optical Characteristics
| Optical Transmitter Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Average Output Power | POUT | -6 | 0.5 | dBm | |||
| Center Wavelength | λc | λc-6 | λc | λc+7.5 | nm | 1 | |
| Spectrum Width(-20dB) | ∆λ | 1 | nm | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | ||||
| Optical Return Loss | 12 | dB | |||||
| Transmitter and Dispersion Penalty | TDP | 3.2 | dB | ||||
| Transmitter OFF Power | POFF | -45 | dBm | ||||
| Output Eye Diagram | Complies with IEEE802.3ae | ||||||
| Optical Receiver Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Center Wavelength | λc | 1260 | 1620 | nm | |||
| Receiver Sensitivity | PSEN | -14.4 | dBm | 2 | |||
| Input Saturation Power (Overload) | PSAT | 0.5 | dBm | ||||
| Receiver Reflectance | -12 | dB | |||||
| LOS De-assert Level | LOSD | -17 | dBm | ||||
| LOS Assert Level | LOSA | -30 | dBm | ||||
| LOS hysteresis | HYS | 0.5 | 6 | dB | |||
Note 1. ITU-T G.694.2 CWDM wavelength from 1270nm to 1610nm, each step 20nm.
Note 2. Measured with a PRBS 231-1 test pattern, @10.3125Gbps, BER<10-12.
