Product Details:
|
| Product Name: | Cisco SFP+ Transceiver | Wavelength: | TX1550nm/RX1490nm |
|---|---|---|---|
| Power-budget(dB): | 22 DB | Interface: | Simplex LC |
| Max Reach: | 80km | Application: | Data Center, 10G Ethernet |
| Highlight: | BIDI Cisco Compatible Transceiver,ZR Cisco Compatible Transceiver,10G Cisco Compatible Transceivers |
||

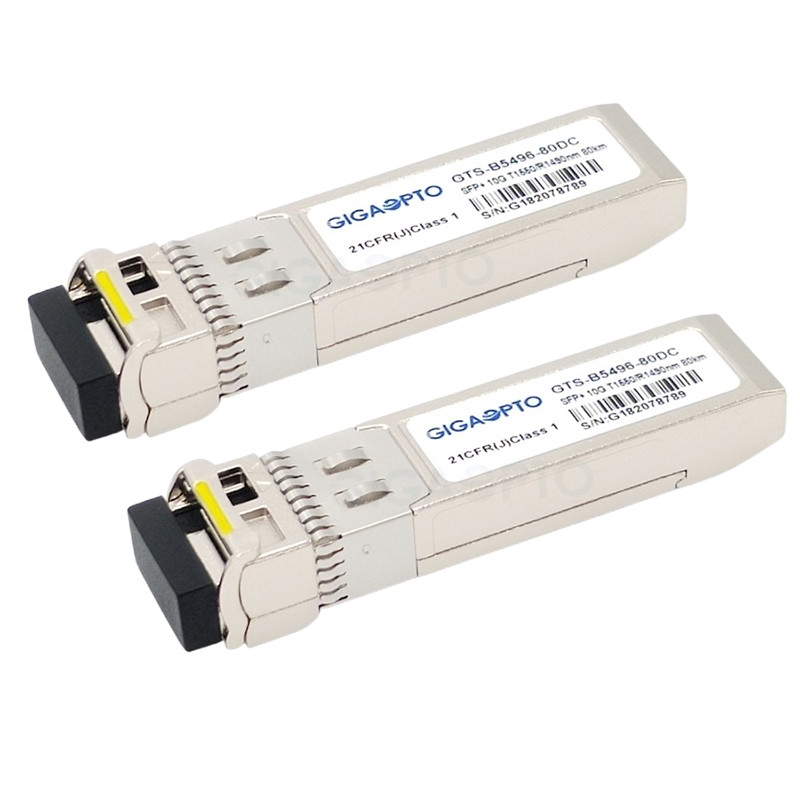

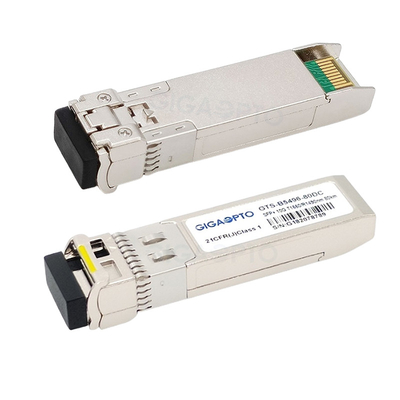

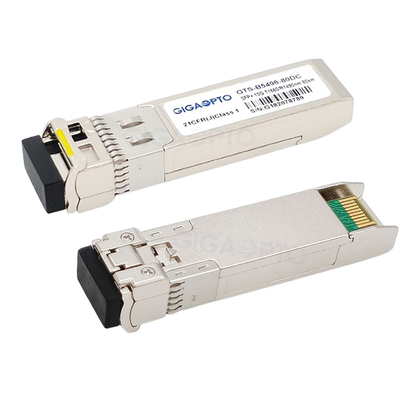

10G BIDI ZR Cisco Compatible Transceiver For SMF SFP-10G-BX80D
Description Of Cisco SFP-10G-BX80D Compatible Transceiver
This Cisco SFP-10G-BX80D compatible transceiver is a hot-pluggable 3.3V Small-Form-Factor transceiver module. It is designed expressly for high-speed long-reach communication applications that require rates up to 11.1Gb/s, fully compliant with SFF-8472 and SFP+ MSA standards.
This bi-directionalSFP-10G-BX80D transceiver consists of a high-performance class 1 laser safety 1550nm cooled EML and a high sensitivity 1490nm APD Photo-diode integrated with a TIA. A max transmission is up to 80km over a 9/125um single-mode fiber.
This SFP-10G-BX80D optical module is programmed to be compatible with a wide range of Cisco network equipment such as Cisco 3100 WS series, Cisco 4500 WS series, Cisco 4900 series, Cisco 5700 Air series, Cisco 6000, Cisco 6800 series, Cisco C6800 series, Cisco Nexus 2000 series, Cisco Nexus 3000 series, Cisco Nexus 5000 series, Cisco Nexus 7000 series, Cisco Nexus 9000 series, Cisco WS-C2960S series, Cisco WS-C3560E series, Cisco UCS series and etc.
Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, 10G Ethernet, SONET OC-192/SDH and Fiber Channel, etc.
Specification Of Cisco SFP-10G-BX80D Compatible Transceiver
| Compatible Brand | Cisco | P/N(Part No.) | SFP-10G-BX80D |
| Vendor | Gigaopto | Category | 10GBASE |
| Wavelength(TX/RX) | 1550nm/1490nm | Max Length | 80km |
| Optical Interface | LC Simplex UPC | Cable Type | Single-mode fiber |
| LD Component | Cooled EML BIDI | PD Component | APD |
| TX Power (dBm) | 0~5dBm | RX Sensitivity | <-22dBm |
| Extinction Ratio | >8.2dB | Overload | <-7 dBm |
| Power-budget (dB) | 22 dB | Power Consumption | Support |
| DDM | Support | Standard Temp. | 0 to 70°C |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 10km | ≤ 20km | ≤ 30km |
| Attenuator | 12dB | 10dB | 5dB |
Features Of Cisco SFP-10G-BX80D Compatible Transceiver
Application Of Cisco SFP-10G-BX80D Compatible Transceiver
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.
Q: What about the warranty for Cisco SFP-10G-BX80D Compatible Transceiver?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM ?
Yes. We accept OEM & ODM
Q: How can I get a sample of a Cisco SFP-10G-BX80D Compatible Transceiver to check your quality?
A free sample is available.
