Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Center Wavelength: | Tx1490nm/Rx1550nm |
|---|---|---|---|
| Reach: | 80km | Power Budget(dB): | 22 DB |
| Application: | 10G Ethernet, 10G Fiber Channel | Data Rata: | 10.312Gbps |
| Highlight: | 10Gbps Cisco Compatible Transceivers,1490nm Cisco Compatible Transceivers,1550nm CISCO Compatible Transceivers |
||

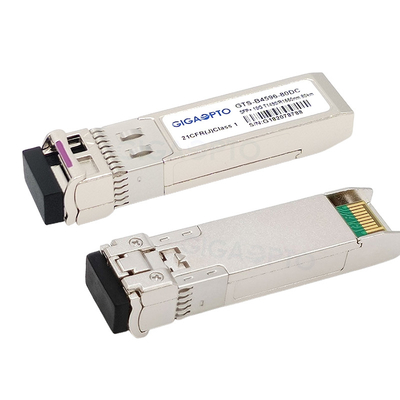

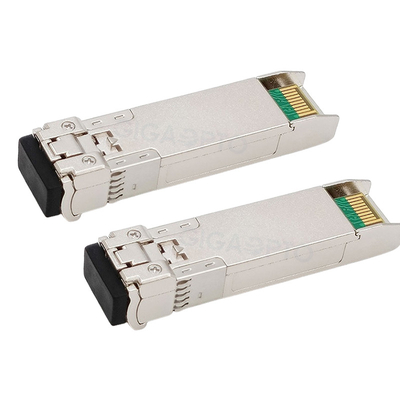

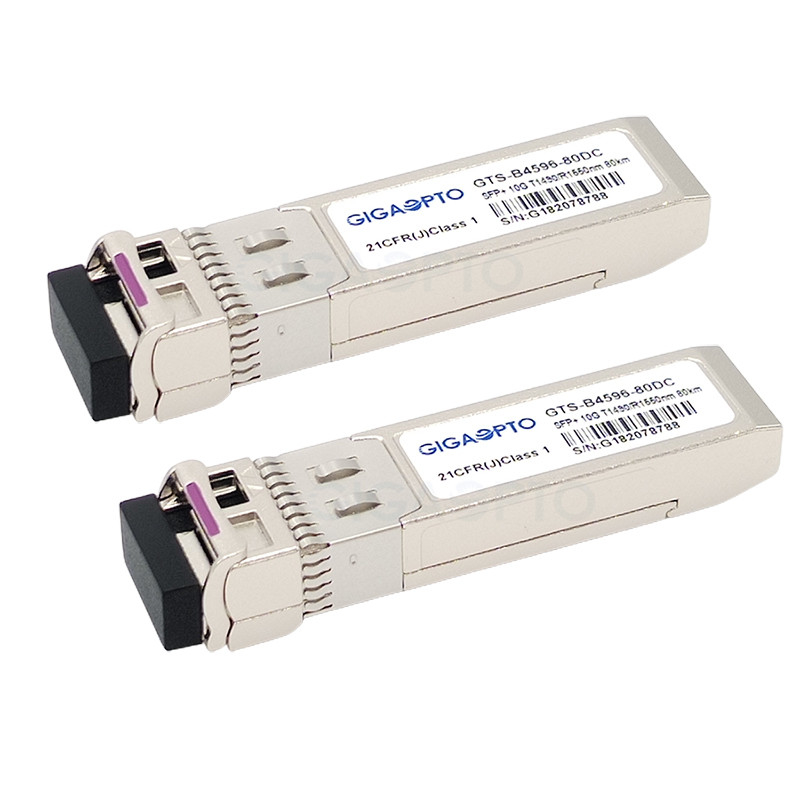

10Gbps Cisco Compatible Transceivers 1490nm TX / 1550nm SFP-10G-BX80U
Description Of Cisco SFP-10G-BX80U Compatible Transceiver
This Cisco SFP-10G-BX80U compatible transceiver is designed expressly for long-reach communication applications that require rates up to 11.1Gb/s.
This bi-directional SFP-10G-BX80U transceiver consists of a high-performance class 1 laser safety 1490nm cooled EML and a high sensitivity 1550nm APD Photodiode integrated with a TIA. A maximum transmission distance is up to 80km over a standard G.652 single-mode fiber.
This SFP-10G-BX80U fiber transceiver module is fully compliant with SFF-8431, SFF-8432 and the IEEE 802.3ae standard.
Digital diagnostic functions are available through a 2-wire serial interface(DDMI), as specified in SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
Specification Of Cisco SFP-10G-BX80U Compatible Transceiver
| Compatible Brand | Cisco | P/N(Part No.) | SFP-10G-BX80U |
| Vendor | Gigaopto | Data Rata | 10.312Gbps |
| Wavelength | 1490nm-TX/1550nm-RX | Reach | 80km |
| Optical Connector | LC Simplex UPC | Fibre Type | single-mode fiber |
| Transmitter | Cooled EML | Receiver | APD |
| TX Output Power | 0~5dBm | Rx Sensitivity | <-22dBm |
| Optical budget (dB) | 22 dB | Input Saturation Power | >-7 dBm |
| Power Consumption | <1.5 W | Ext. Ratio | >8.2dB |
| DDM | Support | Temp.Range | 0 to 70°C |
| Warranty | 3 Years | OEM/ODM | Supported |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 10km | ≤ 20km | ≤ 30km |
| Attenuator | 12dB | 10dB | 5dB |
Features Of Cisco SFP-10G-BX80U Compatible Transceiver
Application Of Cisco SFP-10G-BX80U Compatible Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order? What is your MOQ of the Cisco SFP-10G-BX80U Compatible Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco SFP-10G-BX80U Compatible Transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Cisco SFP-10G-BX80U Compatible Transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on the Cisco SFP-10G-BX80U Compatible Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
