Product Details:
|
| Product Name: | Cisco Optical Transceiver | Wavelength: | TX1330nm/RX1270nm |
|---|---|---|---|
| Max Distance: | 20km | Interface: | LC-Simplex |
| Application: | 10GBASE Ethernet/Fiber Channel | Keywords: | Cisco SFP-10G-BX20D |
| Highlight: | 1330nm Cisco Transceiver Module,SFP+ Cisco Transceiver Module,1270nm CISCO Compatible Transceivers |
||

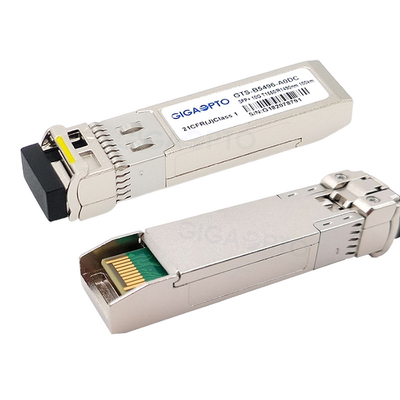

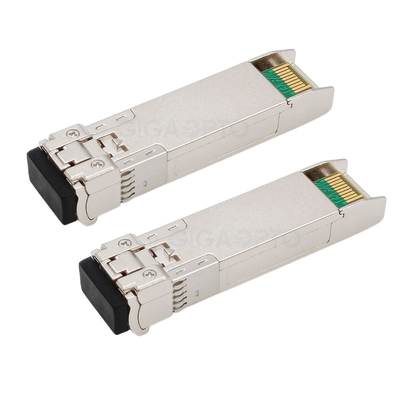

1330nm/1270nm 10Gbps SFP+ Cisco Transceiver Module for SMF SFP-10G-BX20D
Description Of Cisco SFP-10G-BX20D Compatible Transceiver Module
This SFP+ Cisco SFP-10G-BX20D compatible transceiver module features a highly reliable 1330nm DFB transmitter and 1270nm PIN photo-detector into LC Simplex connector and supports up to 20km transmission over OS2 single mode fiber, designed for use in 10GbE and Data Center.
They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Each SFP-10G-BX20D is tested in targeted switch for superior performance, compatibility and reliability before shipping.
Specification Of Cisco SFP-10G-BX20D Compatible Transceiver Module
| Compatible Brand | Cisco | Part Number | SFP-10G-BX20D |
| Vendor | Gigaopto | Bandwidth (Gbps) | 614 Mbit/s - 11.3 Gbit/s |
| Wavelength (TX/RX) | 1330nm/1270nm | Max Transmission | 20km |
| Connector | Simplex LC UPC | Media | Single-mode fiber |
| LD Type | DFB | PD Type | PIN |
| Transmitter Output Power | -3~2dBm | Receiver Sensitivity | < -14.4dBm |
| Optical budget | 11.4dB | Overload | >0.5dBm |
| Power Dissipation | ≤1.3W | Extinction Ratio | >3.5dB |
| Warranty | 3-year | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA | ||
Features Of Cisco SFP-10G-BX20D Compatible Transceiver Module
Application Of Cisco SFP-10G-BX20D Compatible Transceiver Module
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of the Cisco SFP-10G-BX20D Compatible Transceiver Module?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of the Cisco SFP-10G-BX20D Compatible Transceiver Module?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of the Cisco SFP-10G-BX20D Compatible Transceiver Module?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.)::-40 to 85℃
Q: Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time for Cisco SFP-10G-BX20D Compatible Transceiver Module?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service for Cisco SFP-10G-BX20D Compatible Transceiver Module?
All our customers can get three years quality warranty and lifetime technical support.
