Product Details:
|
| Product Name: | Cisco Compatible Transceiver | Speed (Gb/s): | 10 Gigabit |
|---|---|---|---|
| Wavelength: | 1270nmTX/1330nmRX | Transmission: | 20km |
| Application: | 10G Ethernet/Fiber Channel | Key Words: | SFP-10G-BX20U |
| Highlight: | 1270nmTX Cisco Fiber Transceiver,1330nmRX Cisco Fiber Transceiver,20km CISCO Compatible Transceivers |
||

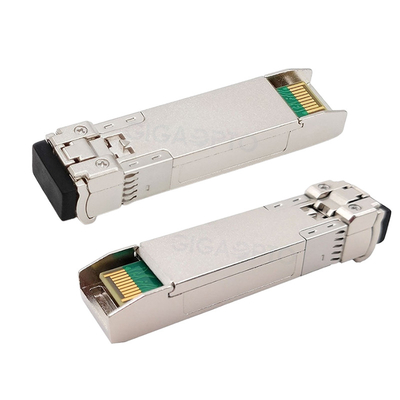

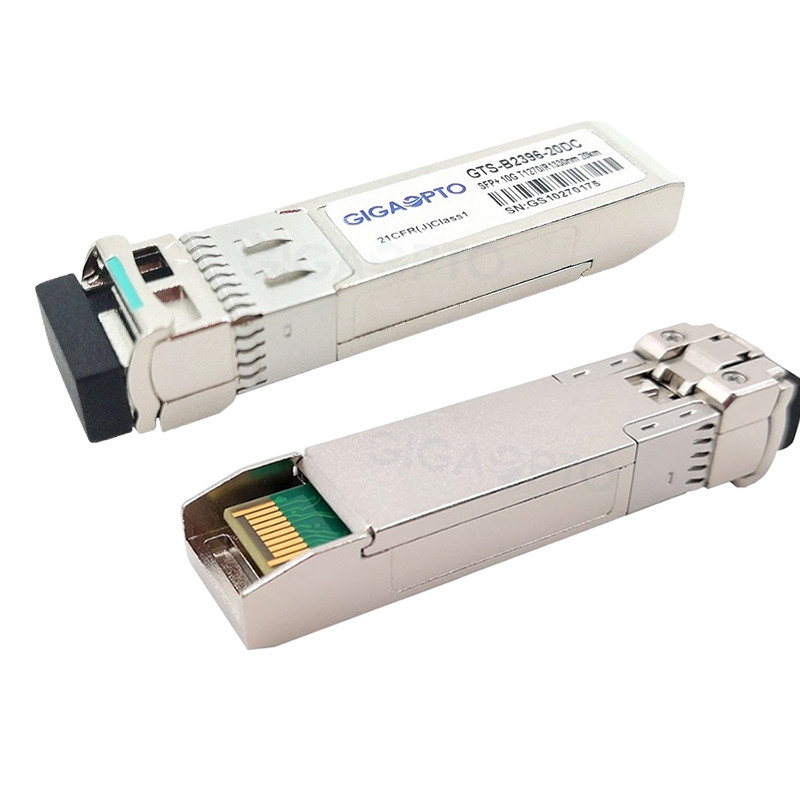

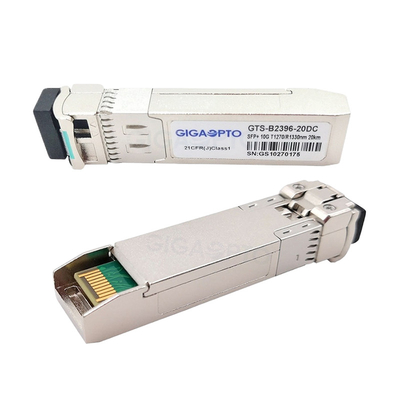

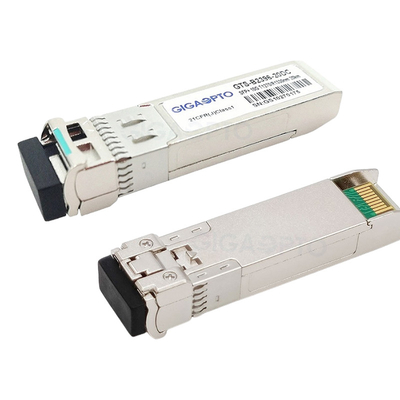

1270nmTX/1330nmRX 10G Cisco Fiber Transceiver 20km for SFP-10G-BX20U
Description Of Cisco SFP-10G-BX20U Compatible Transceiver
This Cisco SFP-10G-BX20U Compatible Transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1270nm transmitter and 1330nm receiver. A max data link up to 20km in 9/125um single-mode fiber.
Featuring high-quality component and our proven technology, this SFP-10G-BX20U is capable to interconnect with a wide range of Cisco network equipment seamlessly, such as Cisco 3100 WS series, Cisco 4500 WS series, Cisco 4900 series, Cisco 5700 Air series, Cisco 6000, Cisco 6800 series, Cisco C6800 series, Cisco Nexus 2000 series, Cisco Nexus 3000 series, Cisco Nexus 5000 series, Cisco Nexus 7000 series, Cisco Nexus 9000 series, Cisco WS-C2960S series, Cisco WS-C3560E series, Cisco UCS series and etc.
Specification Of Cisco SFP-10G-BX20U Compatible Transceiver
| Compatible Brand | Cisco | Part Number | SFP-10G-BX20U |
| Wavelength (TX/RX) | 1270nm/1330nm | Max Distance | 20km on OS2 |
| Transmitter Type | DFB Laser | Receiver Type | PIN photo-detector |
| TX Power (dBm) | -3~2 | RX Sensitivity (dBm) | < -14.4 |
| Optical budget | 11.4dB | Overload | >0.5dBm |
| Power Consumption | ≤1.3W | Extinction Ratio | >3.5dB |
| DOM | Supported | Operating Temperature | 0 to 70°C (32 to 158°F) |
| OEM/ODM | Supported | Weight | 30gram |
Features Of Cisco SFP-10G-BX20U Compatible Transceiver
Application Of Cisco SFP-10G-BX20U Compatible Transceiver
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order? What is your MOQ of the Cisco SFP-10G-BX20U Compatible Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for Cisco SFP-10G-BX20U Compatible Transceiver?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the Cisco SFP-10G-BX20U Compatible Transceiver if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on this Cisco SFP-10G-BX20U Compatible Transceiver?
Yes, we could provide an OEM service and make the products with your own label.
