Product Details:
|
| Name: | SFP+ Cisco Transceiver | Wavelength: | 1550nm |
|---|---|---|---|
| Distance: | 40km | Connector: | LC |
| Power Budget: | 15dB | Application: | 10G Ethernet/Fiber Channel |
| Highlight: | 1550nm Cisco Transceiver Modules,10Gbase-ER Cisco Transceiver Modules,FCC CISCO Compatible Transceivers |
||

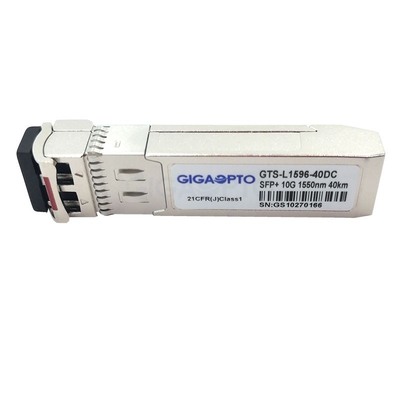

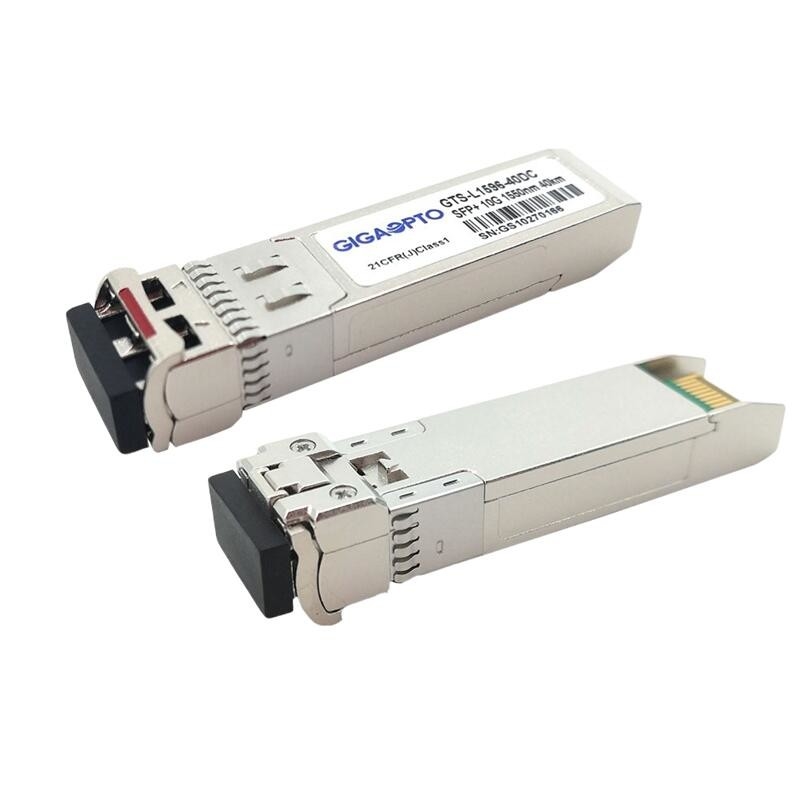

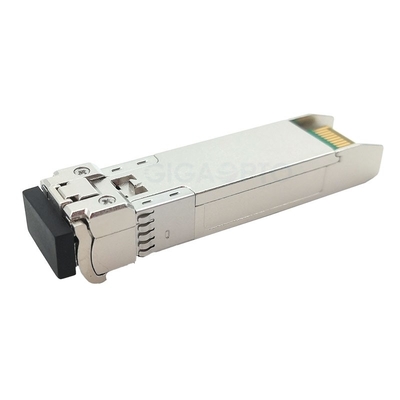

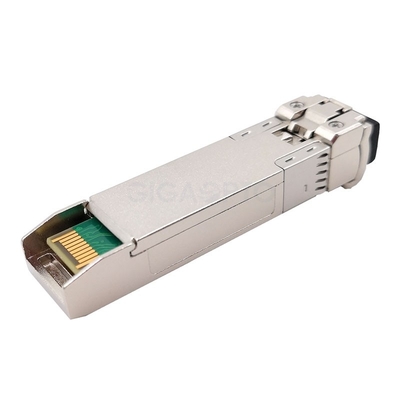

1550nm 10Gbase-ER Cisco Compatible Transceiver Modules for SFP-10G-ER
Description Of Cisco Compatible Transceiver Modules for SFP-10G-ER
This Cisco SFP-10G-ER compatible optical transceiver is manufactured with high-quality components and tested strictly to meet or exceed original manufacturer specifications and optimized for data center networks applications. It provides 10GBase-ER/EW (10.3125Gbps/9.953Gbps) throughput up to 40km over G.652 double fiber single-mode fiber (SMF) optical cable using a wavelength of 1550nm via an LC connector.
This SFP-10G-ER module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly, all modules satisfy class 1 laser safety.
Digital diagnostic monitoring(DDM/DOM) is available via a 2-wire serial interface, as specified in SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage
This SFP-10G-ER optical module is programmed to be compatible with a wide range of Cisco network equipment such as Cisco 3100 WS series, Cisco 4500 WS series, Cisco 4900 series, Cisco 5700 Air series, Cisco 6000, Cisco 6800 series, Cisco C6800 series, Cisco Nexus 2000 series, Cisco Nexus 3000 series, Cisco Nexus 5000 series, Cisco Nexus 7000 series, Cisco Nexus 9000 series, Cisco WS-C2960S series, Cisco WS-C3560E series, Cisco UCS series and etc.
Specification Of Cisco Compatible Transceiver Modules for SFP-10G-ER
| Compatible Brand | Cisco | P/N | SFP-10G-ER |
| Vendor | Gigaopto | Type | 10Gbps SFP+ |
| Wavelength | 1550nm | Max Reach | 40km |
| Connector Type | LC Duplex | Cable Type | single-mode fiber |
| LD Type | EML Laser | Receiver Type | PIN |
| TX Average Power | -1~3dBm | RX Sensitivity | < -16dBm |
| Power-budget | 15dB | Extinction Ratio | >8.2dB |
| Power Consumption | ≤1.5W | RX Overload | >0.5dBm |
| DOM Support | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 5km | ≤ 10km | ≤ 20km |
| Attenuator | 7dB | 5dB | 3dB |
Features Of Cisco Compatible Transceiver Modules for SFP-10G-ER
Application Of Cisco Compatible Transceiver Modules for SFP-10G-ER
Electrical and Optical Characteristics Of Cisco Compatible Transceiver Modules for SFP-10G-ER
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage | 180 | 1200 | mV | |||
| Tx_Fault Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| Tx_Fault Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Tx_Disable Input Voltage - High | VIH | 2 | Vcc | V | LVTTL | |
| Tx_Disable Input Voltage - Low | VIL | 0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | 90 | 100 | 110 | Ω | ||
| Receiver | ||||||
| Receiver Differential Output Voltage | 300 | 850 | mV | |||
| LOS Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| LOS Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Output Differential Impedance | 90 | 100 | 110 | Ω | ||
| Optical Transmitter Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Average Output Power | POUT | -1 | +3 | dBm | |||
| Center Wavelength | λc | 1530 | 1550 | 1565 | nm | ||
| Spectral Width(-20dB) | ∆λ | 1 | nm | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Extinction Ratio | ER | 8.2 | dB | ||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | ||||
| Optical Rise/Fall Time | TR/TF | 28 | 50 | ps | |||
| Transmitter and Dispersion Penalty | TDP | 2 | dB | ||||
| Transmitter OFF Power | POFF | -30 | dBm | ||||
| Output Eye Diagram | Complies with IEEE802.3ae | ||||||
| Optical Receiver Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Center Wavelength | λc | 1260 | 1610 | nm | |||
| Receiver Sensitivity | PSEN | -16 | dBm | 1 | |||
| Input Saturation Power (Overload) | PSAT | 0.5 | dBm | ||||
| Receiver Reflectance | -12 | dB | |||||
| LOS De-assert Level | LOSD | -17 | dBm | ||||
| LOS Assert Level | LOSA | -30 | dBm | ||||
| LOS hysteresis | HYS | 0.5 | 6 | dB | |||
Note 1. Measured with PRBS231-1 pattern, @10.3125Gbps, ER=8.2dB, BER=1x10-12.
Package Outline Of Cisco Compatible Transceiver Modules for SFP-10G-ER
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C and more.
Q: Can I have a sample order Of Cisco Compatible Transceiver Modules for SFP-10G-ER? What is your MOQ?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: What are your payment terms for these Cisco Compatible Transceiver Modules for SFP-10G-ER?
Usually, we need prepayment by T/T, West Union or Paypal.
Could also support L/C, Credit terms.
Q: Could I return the products if there is a quality problem with this Cisco Compatible Transceiver Modules for SFP-10G-ER?
Yes, if there is a quality problem happen, we could accept a free exchange.
Q: Could I use our own logo and label on these Cisco Compatible Transceiver Modules for SFP-10G-ER?
Yes, we could provide an OEM service and make the products with your own label.
