Product Details:
|
| Product Name: | Cisco 1G SFP | Cable Length: | 40km |
|---|---|---|---|
| Wave Length: | 1310nm | Interface: | Duplex LC |
| RoHS Compliant: | Yes | Keywords: | MGBLH1,Cisco SFP Transceiver Module |
| Highlight: | MGBLH1 SFP Transceiver Module,40km SFP Transceiver Module,1310nm CISCO Compatible Transceivers |
||

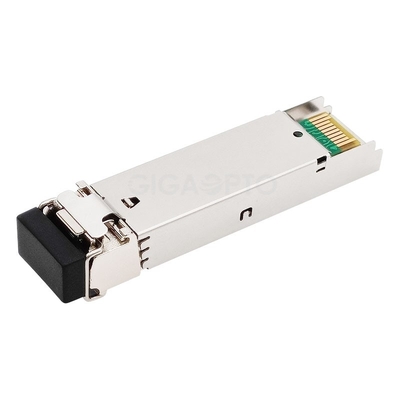

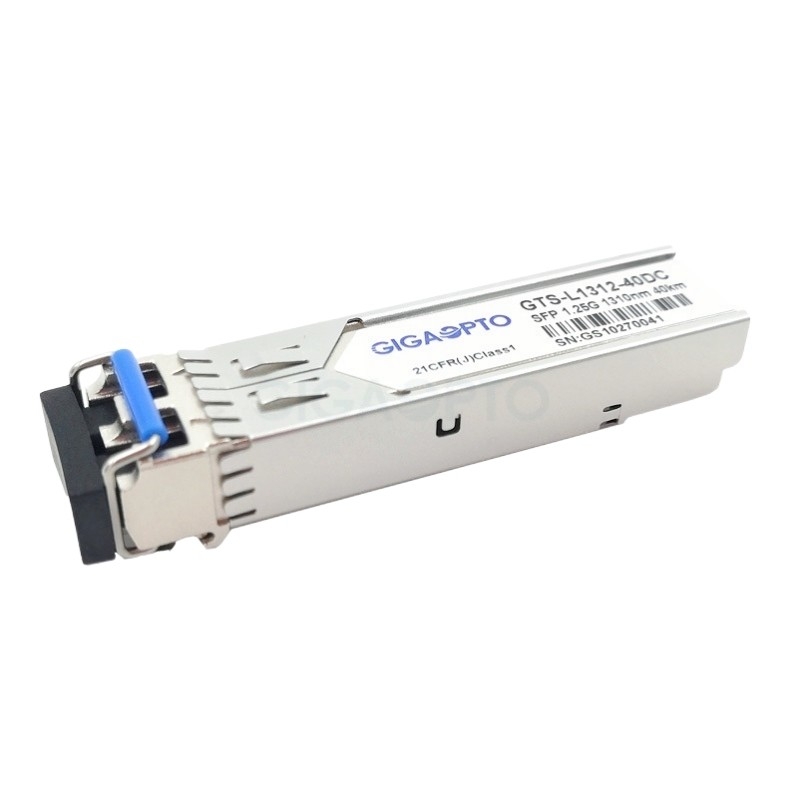

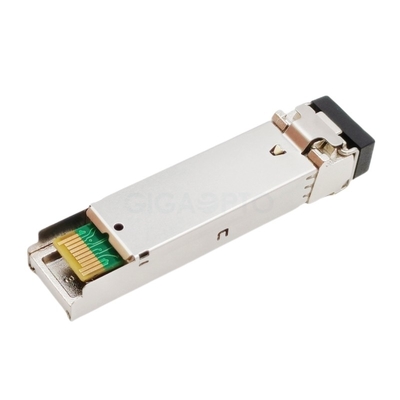

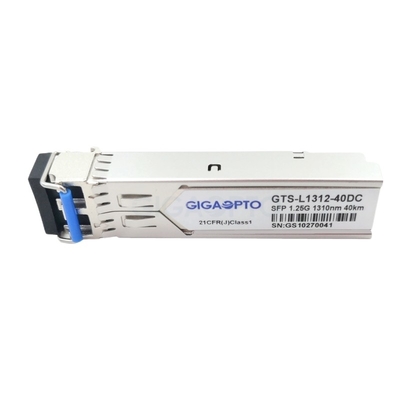

Cisco MGBLH1 Compatible SFP Fiber Module 1000BASE-LH 1310nm 40km Duplex LC SMF DOM
Description
The Cisco MGBLH1 Compatible SFP Transceiver supports the data rate of up to 1.25Gbps and the transmission distance of 40km SMF.
This module is featuring with high quality components and our proven technology, providing the equivalent functions to Cisco MGBLH1, which is capable to be 100% compatible with Cisco host devices.
All of this SFP series modules meets the levelⅠlaser safety requirements, and they can be applied in 1.25Gbps optical systems and Gigabit Ethernet, etc.
Specification
| Compatible Brand | CISCO | Compatible P/N | MGBLH1 |
| Form Factor | SFP | Bit Rate | 1.25Gbps |
| Interface | LC Duplex | Max Reach | 40km |
| DOM/DOM | Default | Fiber Type | SMF |
| Wavelength | 1310nm | Temp. Range | 0 to 70°C (32 to 158°F) |
| Laser Type | DFB | Power Supply Voltage | 3.3V |
| TX Output Power | -5 ~ 0dBm | Power Supply Current | <300mA |
| ER | >9dB | PD Type | PIN |
| Sensitivity | < -24dBm | Saturation | >-3dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | ||
| Distance | ≤10km | ≤20km |
| Attenuator | 10dB | 5dB |
Features
Application
