Product Details:
|
| Product Name: | Cisco Compatible Module | Form Type: | SFP |
|---|---|---|---|
| Data Rate: | 1.25Gbps | Cabling Type: | MMF |
| Wave Length: | 850nm | LD Type: | VCSEL |
| Keywords: | GLC-SX-MM，Cisco 1.25G SFP | ||
| Highlight: | 1.25G SFP Optical Transceiver,Cisco Compatible SFP Optical Transceiver,MMF CISCO Compatible Transceivers |
||

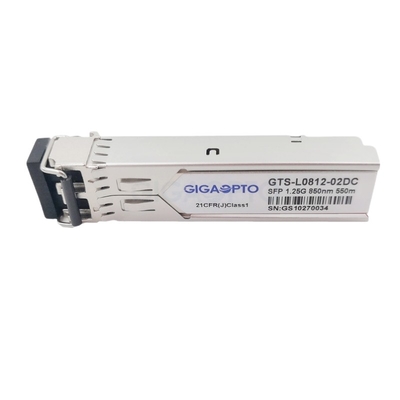

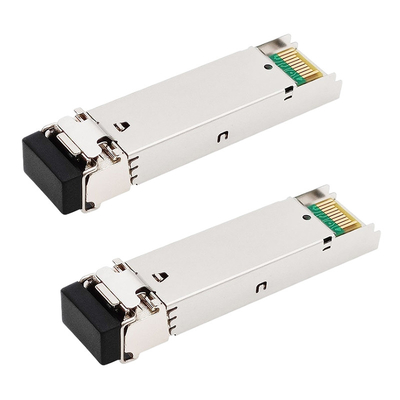

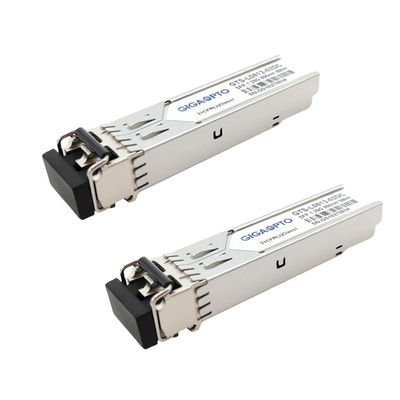

1.25G Cisco Compatible SFP Optical Transceiver 850nm 550m For MMF GLC-SX-MM
Description Of Cisco GLC-SX-MM Compatible1.25G SFP
This Cisco GLC-SX-MM compatible transceiver is a Small Form-factor Pluggable (SFP) transceiver module with a maximum data transfer rate of 1.25Gbps up to 550m over multi-mode fiber cable. It is used in compatible network devices with an SFP slot.
This 1.25G Cisco compatible SFP transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. This SFP module is Multi-Source Agreement (MSA) compliant.
This 1000BASE-SX SFP transceiver offers the same function with Cisco GLC-SX-MM and can work with many Cisco Ethernet Switches and Routers such as WS-C2950ST-24 LRE, WS-C2960+24LC-L, WS-C2960X-24PSQ-L, WS-C2960XR-24PD-I, WS-C3750-24PS, WS-C3850-12XS, WS-C4500X-16SFP+, etc.
Specification Of Cisco GLC-SX-MM Compatible1.25G SFP
| Compatible Brand | Cisco | Compatible P/N | GLC-SX-MM |
| Form Factor | SFP | Speed | 1.25Gbps |
| Connector | Duplex LC | Max Link Length |
550m@50/125µm OM2 MMF 300m@62.5/125µm OM1 MMF 220m@62.5/125µm FDDI MMF |
| DDM/DOM Supported | Yes | Cable Type | MMF |
| Wave Length | 850nm | Temperature | 0 to 70°C (32 to 158°F) |
| Power Supply Voltage | 3.3V | Power Supply Current | < 300mA |
| LD Type | VCSEL | Receiver Type | PIN |
| Average Output Power | -9.5 ~ -3dBm | RX Sensitivity | < -18dBm |
| Extinction Ratio | >9dB | Receiver Overload | > -3dBm |
| Protocols | IEEE 802.3z 1000BASE-SX, SFF-8472, SFP MSA, IEC60825-1 | ||
Features Of Cisco GLC-SX-MM Compatible1.25G SFP
Application Of Cisco GLC-SX-MM Compatible1.25G SFP
FAQ
Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, our engineers will recommend you a proper device. Or if you have a specification, just send it to me.
Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests, you can trust us.
Q: What about the warranty of this Cisco GLC-SX-MM Compatible1.25G SFP?
3-year warranty for new products, and lifetime technical support.
Q: Does GigaOpto do OEM&ODM for this Cisco GLC-SX-MM Compatible1.25G SFP?
Yes. We accept OEM & ODM
Q: How can I get a sample to check the quality of this Cisco GLC-SX-MM Compatible1.25G SFP?
A free sample is available.
