Product Details:
|
| Product: | 100GBASE SWDM4 | Date Rate: | 100Gb/s |
|---|---|---|---|
| Form Factor: | QSFP28 | Distance: | 150m@OM5/100m@OM4/75m@OM3 |
| Connector: | LC Duplex | Component: | VCSEL + PIN |
| Keywords: | 100G QSFP28 SWDM4, SWDM4 Modules | ||
| High Light: | 850nm MMF Transceiver,100GBASE-SWDM4 MMF Transceiver,940nm 100G QSFP28 Transceiver |
||
Based on an industry multi-standard agreement (SWDM-MSA), cost effectively bandwidth upgrading from 25G to 100G without changing existing fibers
Description

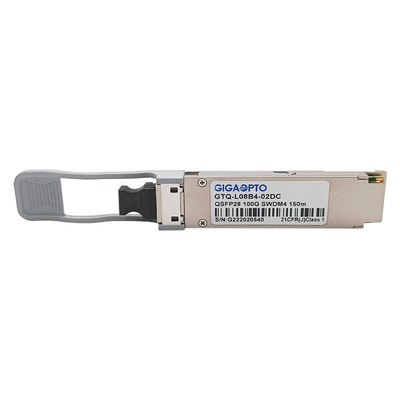

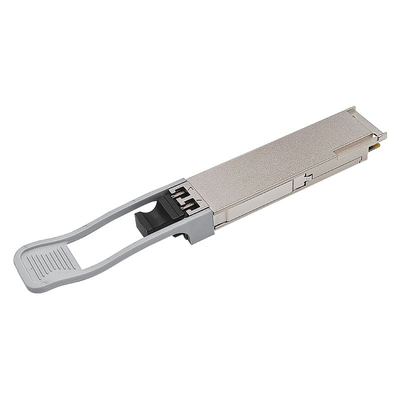

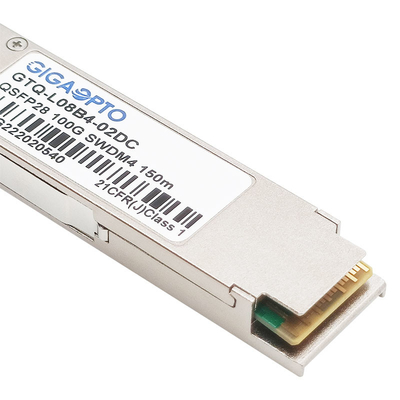

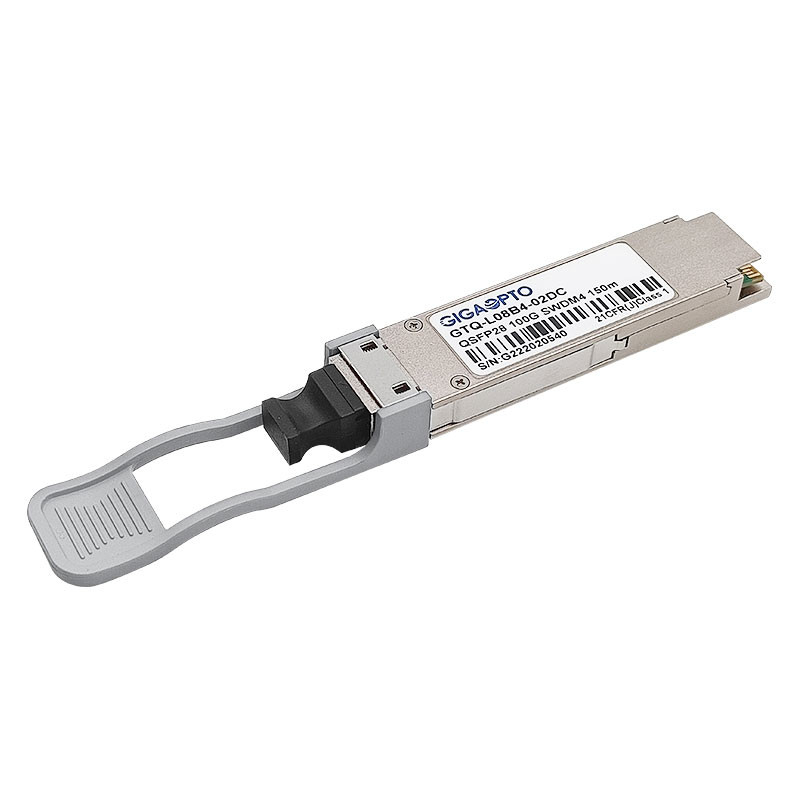

Gigaopto’s GTQ-L08B4-02DC is a kind of pluggable optical transceiver uses SWDM (Short Wavelength Division Multiplex) technology working with multimode fiber, providing 4 channels in the 850-940nm region at 25.78Gbps/lanes, which can transmit a multiplexed 100G signal over duplex multimode fiber with an LC connector, a max transmission up to 75m on OM3/100m on OM4/150m on OM5.
Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
Specification
| Product Name | 100G SWDM4 | P/N | GTQ-L08B4-02DC |
| Package Type | QSFP28 | Data-Rate | 103.12Gbps (4×25.78Gbps) |
| Link Distance | 150m@OM5/100m@OM4/75m@OM3 | Cable Type | Multimode Fiber |
| Wavelength (CH1-CH4) | 850nm, 880nm, 910nm, 940nm | Connector | LC Duplex |
| Power Supply Voltage | +3.3V (typical) | Power Consumption | ≤ 3.5W |
| Transmitter Type | SWDM VCSEL | Receiver Type | PIN |
| TX Power per Lane | -5.5 ~ +3dBm | Receiver Sensitivity | < -3.4dBm |
| Extinction Ratio | > 2dB | Modulation Format | NRZ |
| Environment | Operating: 0 to 70°C | DOM/DDM | support |
| Storage: -40°C to 85°C | Warranty | 3 years | |
| Protocols | 100G Ethernet, MSA Compliant | ||
Feature
Applications
Optical Characteristics
| Transmitter Parameter | Lane | Min | Typical | Max | Unit | Note |
| Signaling rate, each lane | 25.78125±100ppm | Gb/s | ||||
|
Lane Wavelength Range |
Lane0 Lane1 Lane2 Lane3 |
844 874 904 934 |
858 888 918 948 |
nm |
||
| Modulation Format | NRZ | |||||
| Difference in launch power between any two lanes | 4.5 | dBm | ||||
| RMS Spectral width | 0.59 | nm | 1 | |||
| Optical Modulation Amplitude (OMA), each lane | -5.5 | 3 | dBm | 2 | ||
| Average Launch Power per Lane @ TX Off State | -30 | dBm | ||||
|
Launch Power in OMA minus TDEC |
Lane0 Lane1 Lane2 Lane3 |
-7 -7 -7.4 -7.7 |
dBm |
|||
|
Transmitter and Dispersion Eye Closure |
Lane0 Lane1 Lane2 Lane3 |
4 4 4.4 4.8 |
dB |
3 |
||
| Extinction Ratio | 2 | dB | ||||
| Optical Return Loss Tolerance | 12 | dB | ||||
| Encircled Flux |
≥86% at 19 um ≤30% at 4.5 um |
4 | ||||
|
Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} Hit ratio 1.5x10-3 hits per sample |
{0.3,0.38,0.45,0.35,0.41,0.5} |
|||||
|
Notes: 1. RMS spectral width is the standard deviation of the spectrum. 2. The normative lowest value of OMA for a compliant transmitter is ‘Launch power in OMA minus TDEC, each lane (min)’ plus the actual value of ‘TDEC’, but with a value of at least ‘OMA, each lane (min)’. 3. TDEC is calculated from the measured TDECm using the methods in 3.6. TDECm is measured following the method in IEEE 802.3 clause 95.8.5 using a 12.6 GHz bandwidth reference receiver for all lanes. 4. If measured into type A1a.2 or type A1a.3 50 um fiber in accordance with IEC 61280-1-4. |
||||||
| Receiver Parameter | Lane | Min | Typical | Max | Unit | Note |
| Signaling rate, each lane | 25.78125±100ppm | Gb/s | ||||
|
Lane Wavelength Range |
Lane0 Lane1 Lane2 Lane3 |
844 874 904 934 |
858 888 918 948 |
nm |
||
| Modulation Format | NRZ | |||||
| Damage Threshold | 4.4 | dBm | ||||
|
Average Receive Power, each lane |
Lane0 Lane1 Lane2 Lane3 |
-9.5 -9.4 -9.4 -9.4 |
3.4 |
dBm |
||
| Receiver Power, each lane (OMA) | 3 | dBm | ||||
| Receiver Reflectance | -12 | dB | ||||
|
unStressed Receiver Sensitivity(OMA) |
Lane0 Lane1 Lane2 Lane3 |
-8.2 -8.4 -8.6 -8.8 |
dBm |
1 |
||
| RX_Los_Assert | -30 | dBm | ||||
| RX_Los_De-ASSERT | -12 | dBm | ||||
| RX_Los_Hysteresis | 0.5 | dBm | ||||
|
1.unstressed sensitivity at BER of 5E-5(pre FEC) |
||||||
Electrical Characteristics
| Transmitter electrical input signal characteristics(TP1) | Min | Typical | Max | Unit |
| Signaling rate per lane (range) | 25.78125 ± 100 ppm | GBd | ||
| Differential input return loss | Equation (83E–5) | dB | ||
| Differential to common mode input return loss | Equation (83E–6) | dB | ||
| Differential termination mismatch | 10 | % | ||
| Module stressed input test | See 83E3.4.1 | |||
| Differential pk-pk input voltage tolerance | 900 | mV | ||
| DC common mode voltage | -350 | 2850 | mV | |
| Single ended voltage tolerance range | -0.4 | 3.3 | V | |
| Receiver electrical output signal characteristics(TP4) | Min | Typical | Max | Unit |
| Signaling rate per lane (range) | 25.78125 ± 100 ppm | GBd | ||
| AC common-mode output voltage (RMS) | 17.5 | mV | ||
| Differential output voltage | 900 | mV | ||
| Eye width | 0.57 | UI | ||
| Eye height, differential | 228 | mV | ||
| Vertical eye closure | 5.5 | dB | ||
| Differential output return loss | Equation (83E–2) | dB | ||
| Common to differential mode conversion return loss | Equation (83E–3) | dB | ||
| Differential termination mismatch | 10 | % | ||
| Transition time (20% to 80%) | 12 | ps | ||
| DC common mode voltage | -350 | 2850 | mV | |
Mechanical Dimensions
Unit: mm,
