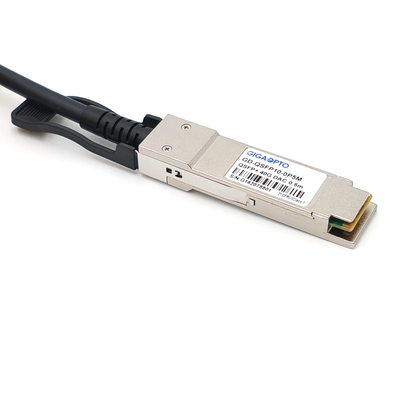

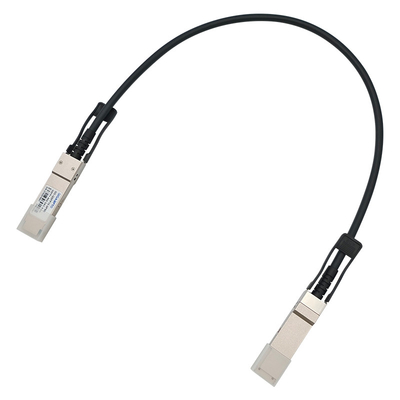

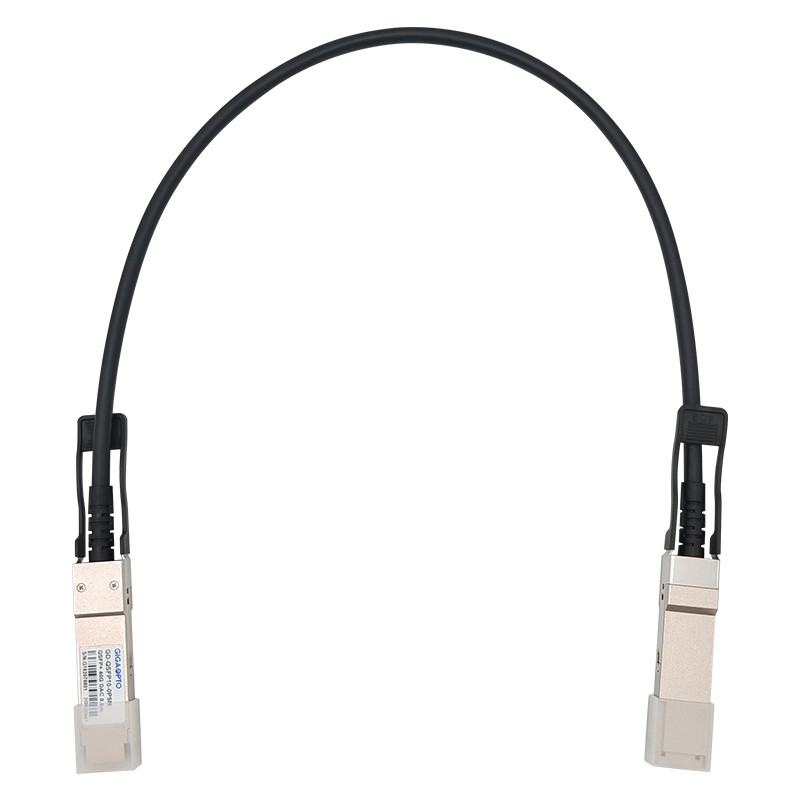

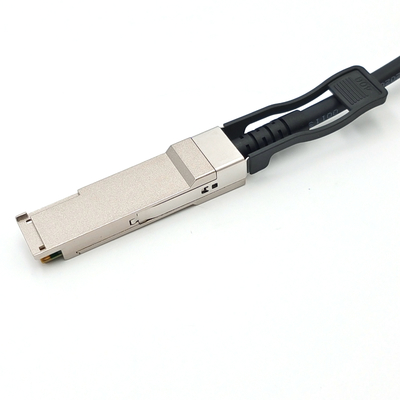

40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC

40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC
40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC 40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC 40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC 40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC

Large Image :  40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE,FCC,RoHs, TUV,UL
Model Number: GD-QSFP10-0P5M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 100,000pcs/month

40G QSFP+ Direct Attach Cable 30AW Copper Twinax 50CM Passive DAC

Description
Name: Direct Attach Cable Data Rate: 40Gbps
Connector Interface: QSFP+/QSFP+ Length: 50CM
Temperature: Commercial Warranty: 3-year
ODM/OEM: Yes Keywords: 40G DAC Copper Cable
Highlight:

QSFP+ Direct Attach Cable

,

50CM Direct Attach Cable

,

30AW Passive DAC

High Speed Copper Passive 40G QSFP+ to QSFP+ DAC Cable





This Low Power Consumption and high speed Direct attach copper is suitable for very short links and offer a cost-effective way to establish a 40-Gigabit link between QSFP+ 40G ports within racks and across adjacent racks. Full compatible with mainstream brands Cisco,Juniper,Arista, Brocade,Dell,Intel,and Mellanox etc.





Functional Specification



Product Name 40G Direct Attach Cable Max Data Rate 40Gbps
Connector Type QSFP+ to QSFP+ Cable Length 0.5M
Jacket Material PVC (OFNR) Operating Temperature 0 to 70°C (32 to 158°F)
Compatible Brand MSA Compliant Cable Type Twinax Passive Copper Cable
Protocols 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel





Ordering Information



Part Number Description Wire Gauge Minimum Bend Radius
GD-QSFP10-0P5M 40G QSFP+ to QSFP+ DAC Cable, 0.5-meter, Passive 30AWG 35mm
GD-QSFP10-1M 40G QSFP+ to QSFP+ DAC Cable, 1-meter, Passive 30AWG 35mm
GD-QSFP10-2M 40G QSFP+ to QSFP+ DAC Cable, 2-meter, Passive 30AWG 35mm
GD-QSFP10-3M 40G QSFP+ to QSFP+ DAC Cable,3-meter, Passive 30AWG 35mm
GD-QSFP10-4M 40G QSFP+ to QSFP+ DAC Cable,4-meter, Passive 26AWG 40mm
GD-QSFP10-5M 40G QSFP+ to QSFP+ DAC Cable,5-meter, Passive 26AWG 40mm
GD-QSFP10-6M 40G QSFP+ to QSFP+ DAC Cable,6-meter, Passive 26AWG 45mm
GD-QSFP10-7M 40G QSFP+ to QSFP+ Direct-Attached Cable,7-meter, Passive 26AWG 47.5mm
GD-QSFP10-A1M 40G QSFP+ to QSFP+ Direct-Attached Cable, 1-meter, Active 30AWG 33mm
GD-QSFP10-A3M 40G QSFP+ to QSFP+ Direct-Attached Cable, 3-meter, Active 30AWG 33mm
GD-QSFP10-A5M 40G QSFP+ to QSFP+ Direct-Attached Cable, 5-meter, Active 30AWG 33mm
GD-QSFP10-A7M 40G QSFP+ to QSFP+ Direct-Attached Cable, 7-meter, Active 28AWG 37.5mm
GD-QSFP10-A10M 40G QSFP+ to QSFP+ Direct-Attached Cable, 10-meter, Active 26AWG 40mm
Note Cable length could be customized to any length as required.





Description



This QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances links and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ports of QSFP+switches within racks and across adjacent racks.

These cables are used for 40GbE and Infniband standard. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s.

This interconnect system is fully compliant with existing industry standard specifications such as the QSFP+ MSA and IBTA (InfiniBand Trade Association).

The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40Gb/s) and Infiniband QDR ( 4x10Gb/s per channel)specifications.





Features



  • 4-Channel Full-Duplex Passive Copper Cable Transceiver
  • Support for multi-gigabit data rates: 1Gb/s - 10.3Gb/s (per channel)
  • Maximum aggregate data rate: 41.2Gb/s
  • Wire AWG: AWG30/AWG26/AWG24
  • AC coupling of PECL signals
  • All-metal housing for superior EMI performance
  • Available lengths (in meters): 0.5, 1, 2, 3...
  • Commercial temperature range(COM): 0 to 70°C
  • Single 3.3V power supply
  • Low power consumption: less than 2W
  • High-Density QSFP 38-PIN Connector
  • Shielded copper twinaxial design for reduced skew rate and crosstalk
  • Compliant QSFP MSA specifications
  • Compliant with industry-standard QSFP+ form factor SFF-8436



Application



  • InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G)interconnects
  • 10G/40G Ethernet (10G/40GbE)
  • 2G/4G/ 8G/ 10G Fibre Channel
  • Networked storage systems
  • External storage systems
  • Data Center networking
  • Hubs, Switches, Routers, Servers





Characteristics





Parameter



Symbol



Min



Typ



Max



Units



Notes

Reference Differential Input Impedance Zd 90 100 110 Ω
Termination Mismatch ∆ZM     5 %
Input AC Common Mode Voltage       25 mV(RMS)



Differential Input Return Loss

SDD11 SDD11(dB)<-12+2*SQRT(f) dB 0.01~4.1GHz
SDD11(dB)<-6.3+13Log10(f/5.5)



dB



4.1~11.1GHz

Differential to Common Mode Loss SDD11     -10 dB 0.01~11.1GHz
Jitter Tolerance (Total) TJ     0.4 UI
Jitter Tolerance (Deterministic) DJ     0.15 UI





Our advantage



  • Excellent quality with competitive price;
  • 3 years warranty and 24-hour support each day
  • Full compatible with mainstream brands such as Cisco/Juniper/Arista/Brocade/HW
  • OEM/ODM are supported.



Compatibility



Gigaopto manufactures and stocks a full range of optical transceivers/AOC/DAC up to 100G. All of our direct attach cable assemblies are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer 3-year warranty.

For this QSFP+ to QSFP+ 40G DAC, please refer to the P/N correspondence table (Fox example in 0.5M length). If you need more compatibility, please don’t hesitate to let us know.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GD-QSFP10-0P5M Arista CAB-Q-Q-0.5M
Cisco QSFP-H40G-CU50CM Juniper EX-QSFP-40GE-DAC-50CM
Dell 332-1362 Brocade 40G-QSFP-C-00501
Intel XLDACBL05 HW QSFP-40G-CU50M
Extreme 10311 Mellanox MC2206130-00A
IBM BN-QS-QS-CBL-50CM Avaga AA1404037-E6
Enterasys 40GB-C0.5-QSFP





FAQ



1.Can I have different compatibility for each end of the 40G QSFP+ Direct Attach Cables?

Yes, supported. we offer customized dual compatibility solutions for DAC so that you can choose compatibility for each end separately. All you need is to list out the requested Compatible Brands.
