Product Details:
|
| Item Name: | QSFP-100/112G-LR4 | Technology: | Dual Rate QSFP28 |
|---|---|---|---|
| TOSA/ROSA: | 4 X LAN WDM DML/ 4 X PIN | LANWDM Wavelength: | 1295.6nm, 1300.1nm, 1304.6nm, 1309.1nm |
| Interface: | Duplex LC | Reach: | 10km |
| CDR: | Dual TX & RX | Compatibility: | Can Be Designated |
| Keywords: | 100Gbps 10km QSFP28 Dual Rate For 100GBASE Ethernet And OTN4 | ||
| Highlight: | 100GBASE LR4 100G QSFP28 Transceiver,112GBASE 100G QSFP28 Transceiver,Dual Rate QSFP28 Transceiver |
||
Dual Rate Transceiver Module for 100GbE and 4x28G OTN client interfaces 10km LC 1310nm DOM
Description

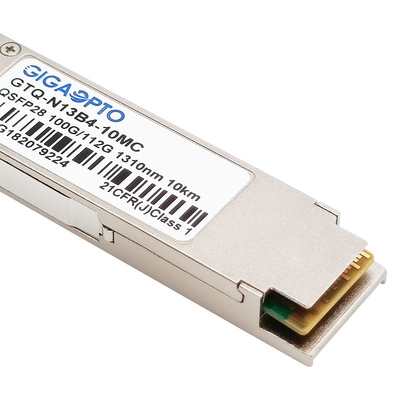

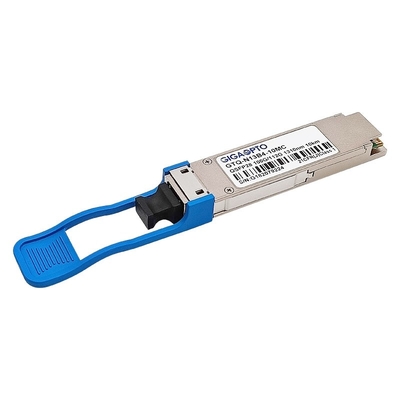

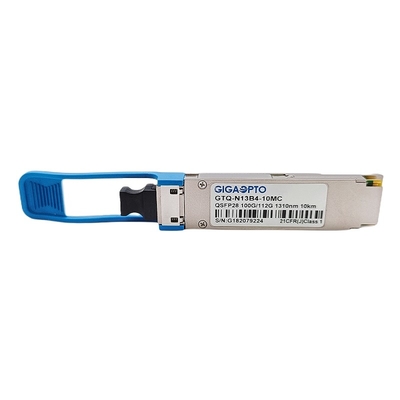

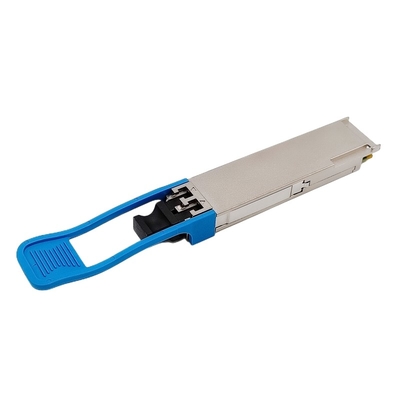

This GTQ-N13B4-10MC 100G dual rate optical transceiver module is designed for 100GBASE Ethernet and 4x28G OTN client interfaces, a max link up to 10km over duplex strand single mode fiber (SMF) with duplex LC connector.
This dual rate QSFP28 LR4 transceiver converts 4 channels of 25Gbps/28Gbps (NRZ) electrical input data to 4 channels of 25Gbps/28Gbps (NRZ) LAN-WDM optical signals. Reversely, on the receiver side, 4 channels of LAN-WDM optical signals of 25Gbps/28Gbps (NRZ) converts to 4 channels of 25Gbps/28Gbps (NRZ) electrical output data. The central wavelengths of 4 channels are members of the frequency grid for 100 GHz spacing and above defined in ITU-T G.694.1 and are spaced at 800 GHz. And per channel operating at 25Gbps/28Gbps.Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance.
This QSFP-100/112G modules are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm CAUI-4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39).
Digital diagnostics are also available through the QSFP28 MSA-specified I2C interface to allow access to real-time operating parameters. With these features, this easy-to-install, hot swappable transceiver is suitable for a variety of applications such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless networks.
Specification
| Form Factor | QSFP28 | Max Data Rate | Dual Rate 103.1Gbps and 112Gbps |
| Wavelength |
1295.56, 1300.05, 1304.58, 1309.14nm |
Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | 4 x LAN WDM DML TOSA | Receiver Type | 4 x PIN ROSA |
| TX Power (100G) | -4.3~4.5dBm | Receiver Sensitivity (100G) | <-8.6dBm |
| TX Power (112G) | -0.6~4dBm | Receiver Sensitivity (112G) | <-8.4dBm |
| Receiver Overload (100G) | >4.5dBm | Receiver Overload (112G) | >4dBm |
| Transmit and Dispersion Penalty | 2.2dB | Power budget | 8.5dB |
| Power Consumption | ≤3.5W | Extinction Ratio | >4dB |
| DDM/DOM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | NRZ |
| Host FEC | Supported | OEM/ODM | Supported |
| Warranty | 3 Years | Packaging | Box |
| Protocols | 100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1F | ||
Features
Application
¨
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, HW, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this QSFPs8 100G 10km dual rate GTQ-N13B4-10MC, please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTQ-N13B4-10MC | Arista | QSFP-100/112G-LR4 |
| Cisco | QSFP-100/112G-LR4 | Juniper | 100/112GBASE-LR4 |
| Dell | QSFP-100/112G-LR4 | HW | QSFP-100/112G-LR4 |
| Mellanox | QSFP28-LR4-100/112G | ||
