BiDi 1.25G SFP Transceiver Module 1000BASE-BX TX1490nm/RX1550nm 80km LC SMF DOM

Cisco Compatible BiDi SFP 1490nm-TX/1550nm-RX 80km 1.25G 1000BASE-BX SMF Simplex LC DOM Transceiver Module

Description

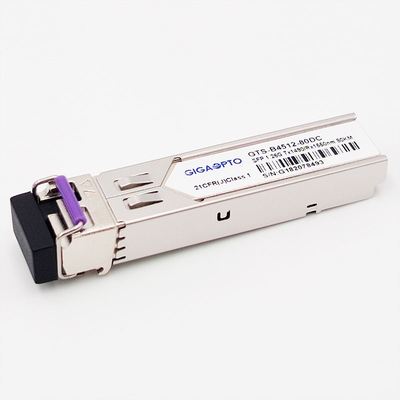

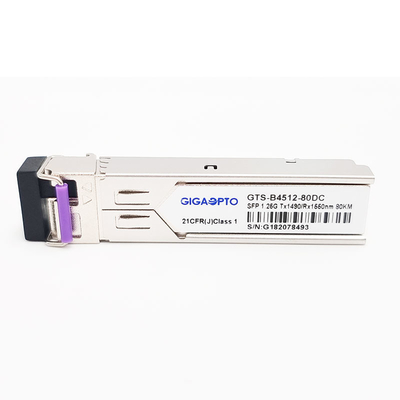

The GIGAOPTO's GTS-B4512-80DC SFP transceiver operates at 1000BASE-BX with a wavelength of Tx1490nm/Rx1550nm with a maximum reach of 80km over single-mode fiber (SMF) via LC simplex connectors. The transmitter section uses a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

The 1000BASE-BX BiDi SFP transceiver is designed for single-mode data transmissions with 1.25G in optical fiber networks. It supports Ethernet and Fibre Channel applications in switches, routers, storage systems and other related hardware.

All GIGAOPTO’s SFP transceivers are MSA compliant for seamless integration and RoHS compliant for environmental

conformity.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Supports up to 1.25Gbps bit rates
• Two types:

A:1490nm DFB transmitter /1550nm receiver

B:1550nm DFB transmitter/1490nm receiver

• Up to 80km with 9/125 µm SMF
• Single 3.3V power supply and TTL logic interface
• BIDI LC/UPC type pluggable optical interface
• Low power dissipation
• Metal enclosure, for lower EMI
• Hot-pluggable SFP footprint
• Class 1 FDA and IEC60825-1 Laser Safety compliant
• Ambient operating temperature range:

Commercial: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• RoHS6 Compliant
• Compliant with SFP MSA (INF-8074i)
• Compliant with SFF-8472

Application

• Fiber Channel links
• Gigabit Ethernet
• FTTX Application
• 1.25Gbps Optical Systems
• Switch to Switch Interface
• Other Optical Links

Compatibility

As a global provider of Brand Compatible Networking products, we Gigaopto have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers.
This (1000BASE-BX BiDi SFP TX1490nm/RX1550nm 80km) is 100% compatible with mainstream optical devices. Below is a table of P/N correspondence for different brand modules. For more information, please don't hesitate to contact us.

Ordering Information

Pin Definition

Typical Application Circuit

Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
